Library› Cargo› Tanker Cargo Systems› Cargo Manifold Valve› Klinger (KITO/Klinger Sweden) E 17 N VD/o
Klinger (KITO/Klinger Sweden)

E 17 N VD/o

Cargo Manifold Valve · Tanker Cargo Systems

Technical data from manufacturer or class sources · not yet verified by a person
11 kgWeight
View photo ↗

Klinger (KITO/Klinger Sweden) E 17 N VD/o — End-of-line pressure and vacuum relief valve for tank venting.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeBreather and venting device for tanks
FunctionPrevents overpressure/vacuum, prevents gas losses
ApplicationNon-flammable liquid storage tanks
DesignPressure and vacuum relief
FeaturesNot explosion-proof or endurance-burning proof
ManufacturerKITO Armaturen GmbH / Klinger
StandardsTank venting system requirements
Weight (kg)11.11 kg🔖
📄
Download datasheet (PDF) (184 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“_____________________________________________________________________________________________________________________________ ___________________”

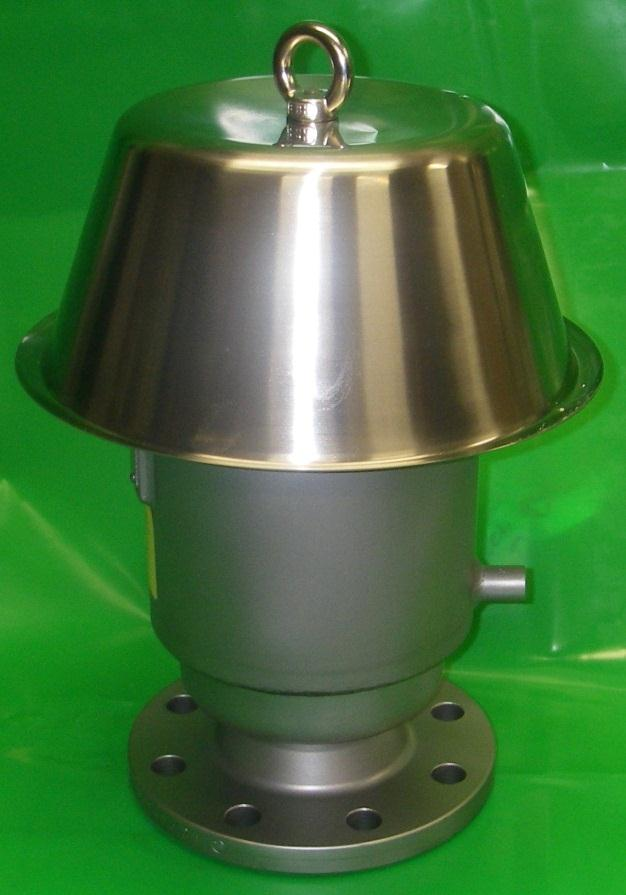

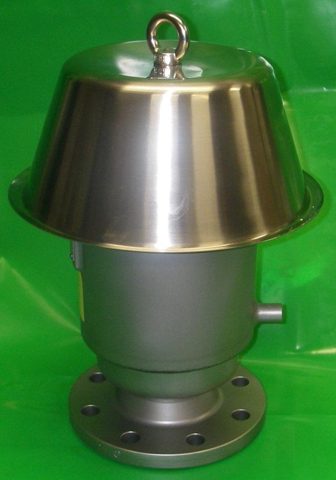

Klinger (KITO/Klinger Sweden) E 17 N VD/o – Photo (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Photo · Klinger (KITO/Klinger Sweden) datasheet · S. 1
Klinger (KITO/Klinger Sweden) E 17 N VD/o – Photo (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Photo · Klinger (KITO/Klinger Sweden) datasheet · S. 1
Klinger (KITO/Klinger Sweden) E 17 N VD/o – Photo (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Photo · Klinger (KITO/Klinger Sweden) datasheet · S. 1
Klinger (KITO/Klinger Sweden) E 17 N VD/o – Photo (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Photo · Klinger (KITO/Klinger Sweden) datasheet · S. 1

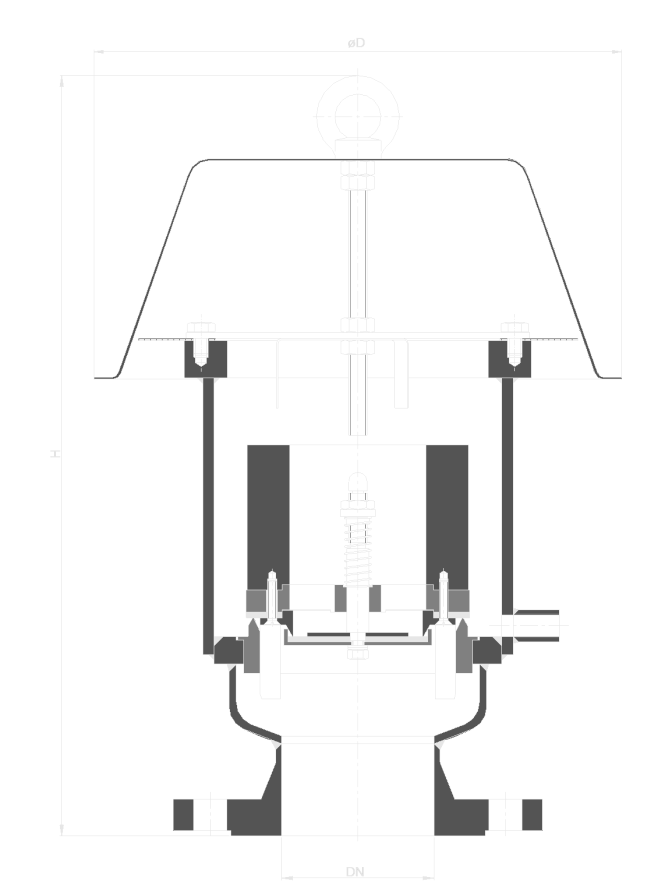

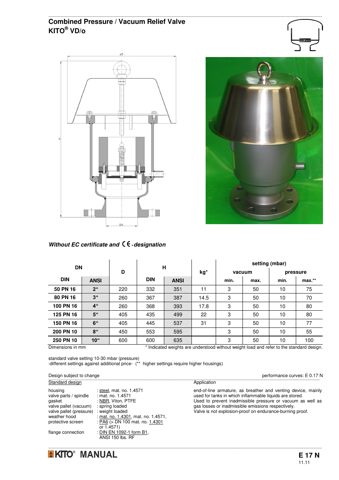

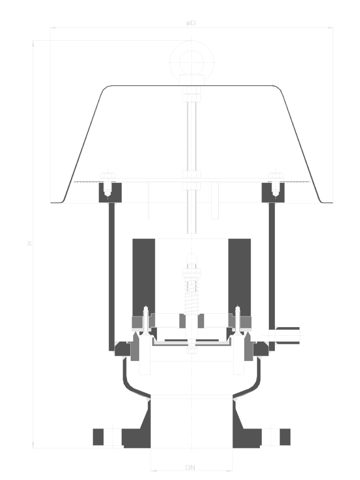

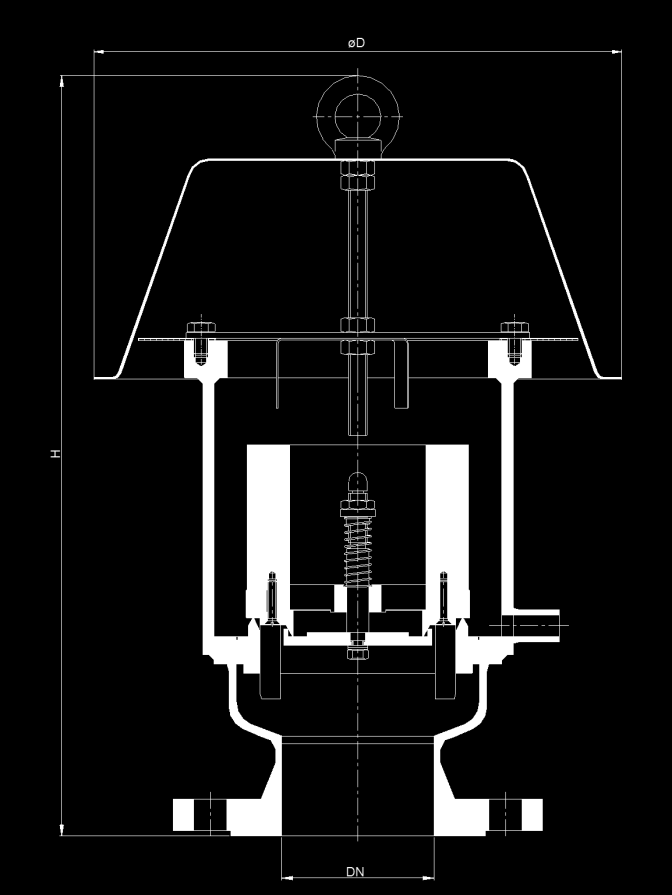

Klinger (KITO/Klinger Sweden) E 17 N VD/o – Drawing (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Drawing · Klinger (KITO/Klinger Sweden) datasheet · S. 1
Klinger (KITO/Klinger Sweden) E 17 N VD/o – Drawing (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Drawing · Klinger (KITO/Klinger Sweden) datasheet · S. 1
Source: o datasheet, p. 1
