F3L912

Auxiliary Engine (Generator Set) · Auxiliary Engines

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​‍​‌‍‍​⁠​⁠‌‍‍⁠‍‌‍
40 kWPower
3.23Capacity
277 kgWeight
View photo ↗

Crews and engineers on mobile machinery rely on robust and efficient engines to ensure smooth operations under demanding conditions. Deutz Marine’s F3L912 engine is a prime example of this reliability. Designed for applications ranging from 24 to 82 kW (31 to 110 hp) at 1500 to 2500 rpm, the F3L912 meets China stage II emissions standards. This air-cooled, naturally aspirated engine features a modular system with single cylinders and a displacement of 3.23 liters. Its compact design reduces installation costs while maintaining high durability and smooth operation, thanks to acoustically optimized components. The robust construction allows for worldwide use, even with high sulphur fuels, ensuring reliable performance under extreme conditions. With a maximum torque of 185 Nm at 1450 rpm and low fuel consumption, the F3L912 delivers optimal engine performance while minimizing operational costs. The engine’s best cold starting performance ensures it can be relied upon in any environment.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Cylinders3 Zylinder inline
Bohrung x Hub102 x 132 mm
Hubraum3,23 L
Leistung40 kW @ 2500 rpm
Max. Drehzahl2500 rpm
Sfoc~215 g/kWh
Capacity3.23 l🔖
Power (kW)40 kW🔖
Weight (kg)277 kg🔖
Cylinder bore/stroke102/132 mm🔖
Displacement3.23 l🔖
Max. nominal speed2500 min-1🔖
Max. torque185 Nm🔖
📄
Download datasheet (PDF) (1216 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“possibilities PTO drives for hydraulic pumps and compressor possible, only a few maintenance points, long oil change intervals.”

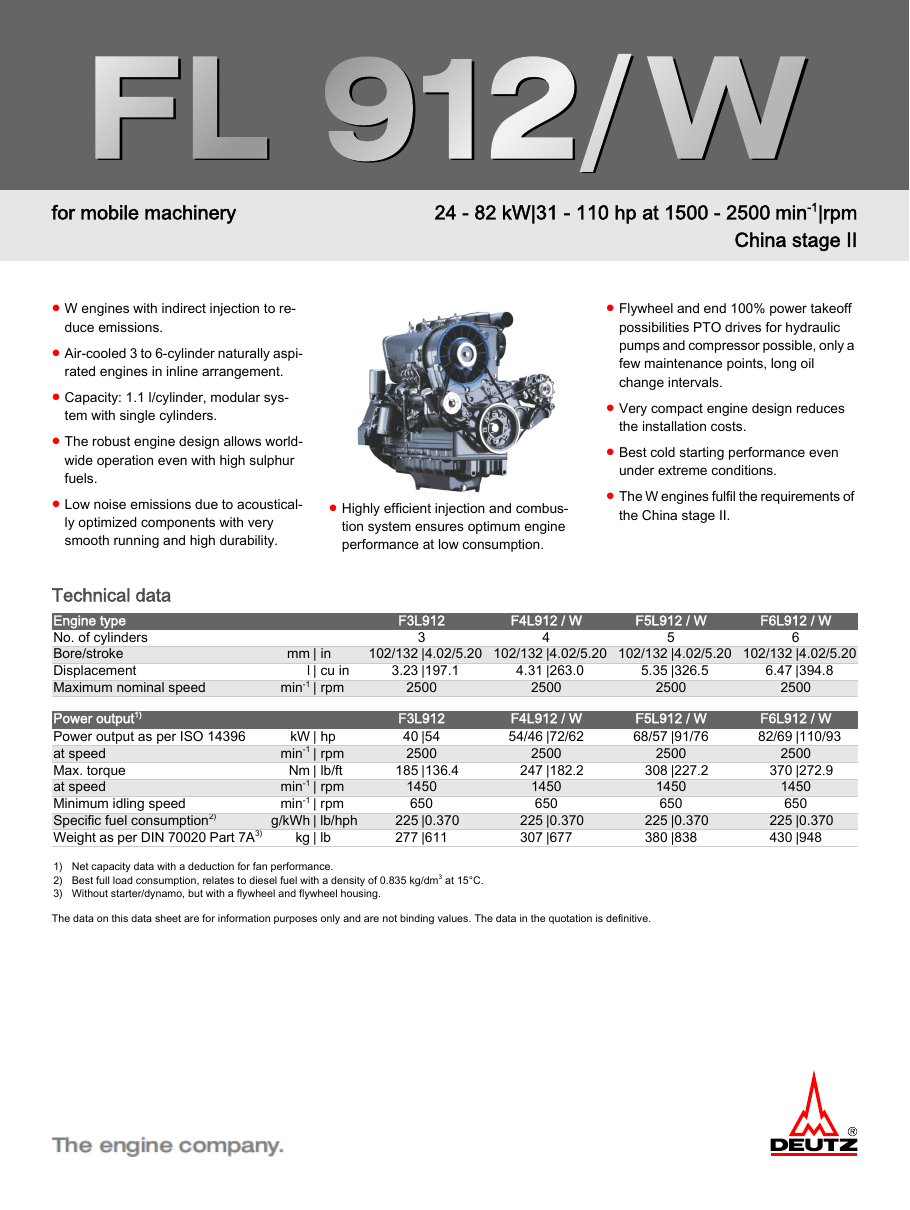

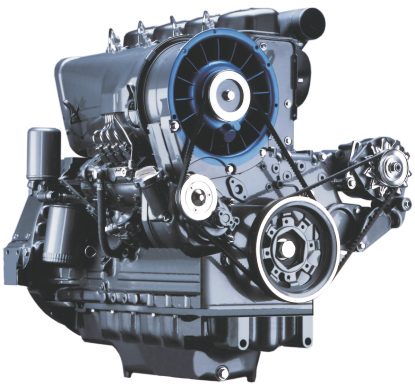

Deutz Marine F3L912 – Photo (Deutz Marine datasheet S. 1)
Photo · Deutz Marine datasheet · S. 1

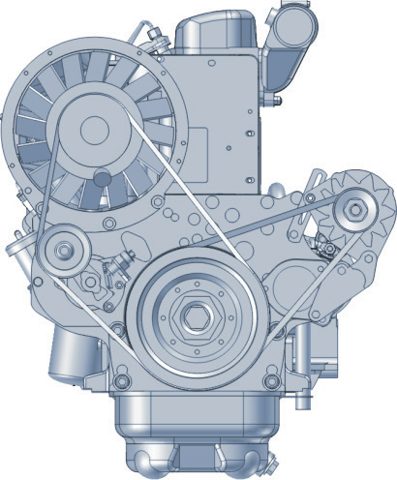

Deutz Marine F3L912 – Photo (Deutz Marine datasheet S. 2)
Photo · Deutz Marine datasheet · S. 2

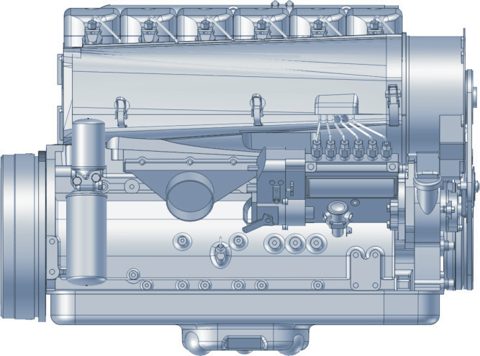

Deutz Marine F3L912 – Photo (Deutz Marine datasheet S. 2)
Photo · Deutz Marine datasheet · S. 2
Deutz Marine F3L912 – Photo (Deutz Marine datasheet S. 2)
Photo · Deutz Marine datasheet · S. 2
Deutz Marine F3L912 – Photo (Deutz Marine datasheet S. 1)
Photo · Deutz Marine datasheet · S. 1
Deutz Marine F3L912 – Photo (Deutz Marine datasheet S. 2)
Photo · Deutz Marine datasheet · S. 2
Deutz Marine F3L912 – Drawing (Deutz Marine datasheet S. 1)
Drawing · Deutz Marine datasheet · S. 1
Deutz Marine F3L912 – Drawing (Deutz Marine datasheet S. 2)
Drawing · Deutz Marine datasheet · S. 2
Source: OBJ_DOKU-33690-001.fm, p. 1
