ATJ-EA

Smoke Detector · Fire Detection Systems

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​‌‍​‍⁠‍⁠⁠‍​⁠​​⁠⁠‍
127Capacity
24Voltage

Ship crews, engineers, and operators depend on reliable fire detection systems to ensure the safety of everyone on board. Hochiki offers the ATJ-EA Fixed Temperature / Rate of Rise heat sensor, designed for environments where dust, cooking fumes, or other factors might interfere with smoke sensors. This sensor accurately measures temperature and sends data to the fire alarm control panel. The ATJ-EA features a low profile, simple addressing method, and utilizes the noise immune Digital Communication Protocol (DCP) for fast response to fires. It incorporates a highly linear thermistor circuit protected by a cover that allows maximum airflow. The sensor's adjustable threshold temperature ranges from 135°F to 190°F, and the rate of rise threshold is 15°F/Min, both configurable by the control panel. The ATJ-EA is UL Listed, with a maximum spacing of 70 feet and can be mounted to an electronics-free base with a locking mechanism for security. Dual LEDs provide easy viewing of sensor status. The sensor operates on 24-41 VDC, with a standby current of 350µA and an alarm current of 500µA.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeHeat - Fixed Temp & Rate of Rise
Detection ElementsVariable Temperature + Rate of Rise
AccuracyLinear temperature response
Capacity127🔖
Voltage24 - 41 VDC🔖
Rate of rise15° F/Min F/min🔖
UL maximum spacing70 feet ft🔖
Weight3.2 oz🔖
Maximum humidity95% RH🔖
📄
Download datasheet (PDF) (1086 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“ATJ-EA FIXED TEMP/RATE OF RISE HEAT SENSOR APPLICATION The Hochiki ATJ-EA Fixed Temperature / Rate of Rise sensors provide accurate temperature measurement data to the fire alarm control panel. These…”

Hochiki ATJ-EA – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1
Hochiki ATJ-EA – Photo (Hochiki datasheet S. 2)
Photo · Hochiki datasheet · S. 2

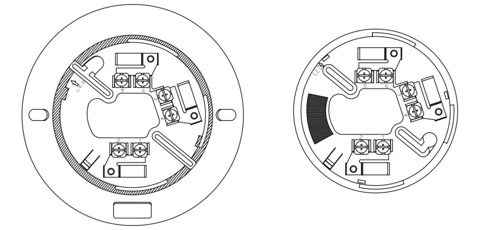

Hochiki ATJ-EA – Photo (Hochiki datasheet S. 2)
Photo · Hochiki datasheet · S. 2
Hochiki ATJ-EA – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1

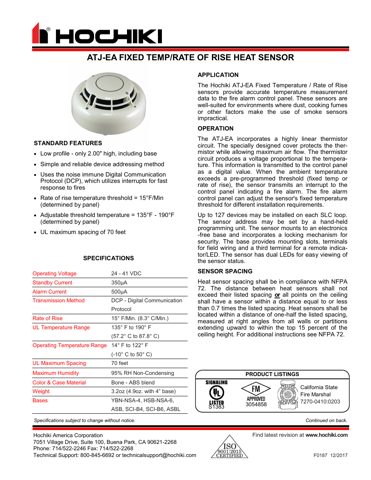

Hochiki ATJ-EA – Drawing (Hochiki datasheet S. 1)
Drawing · Hochiki datasheet · S. 1

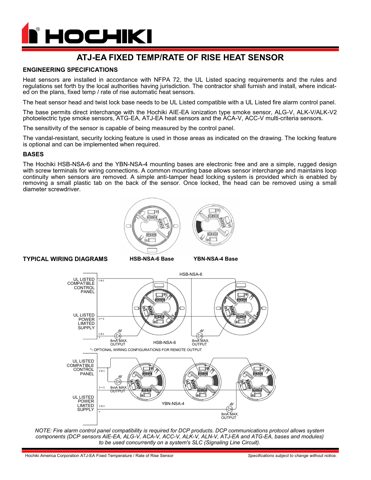

Hochiki ATJ-EA – Drawing (Hochiki datasheet S. 2)
Drawing · Hochiki datasheet · S. 2
Source: Hochiki ATJ-EA datasheet, p. 1
