Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Hochiki DH-100-A
Hochiki

DH-100-A

Smoke Detector · Fire Detection Systems

Technical data from manufacturer or class sources · not yet verified by a person
25.3 - 39.5Voltage

Hochiki DH-100-A — Analog Duct Smoke Detector.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeDuct Smoke - Analog
Standby Current20mA @ 24VDC
Alarm Current78mA @ 24VDC
CertificationsUL 268A Listed🔖
Voltage25.3 - 39.5 VDC🔖
Alarm current30mA (max)🔖
Air velocity100 - 4,000 FPM🔖
Maximum relative humidity93% RH🔖
Weight3.0 lb🔖
📄
Download datasheet (PDF) (581 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“STANDARD FEATURES • Air Low Flow 100FPM Listed • Detects and limits the spread of smoke throughout building HVAC ducts • Compatible with building automation and fire alarm systems • Installs quickly…”

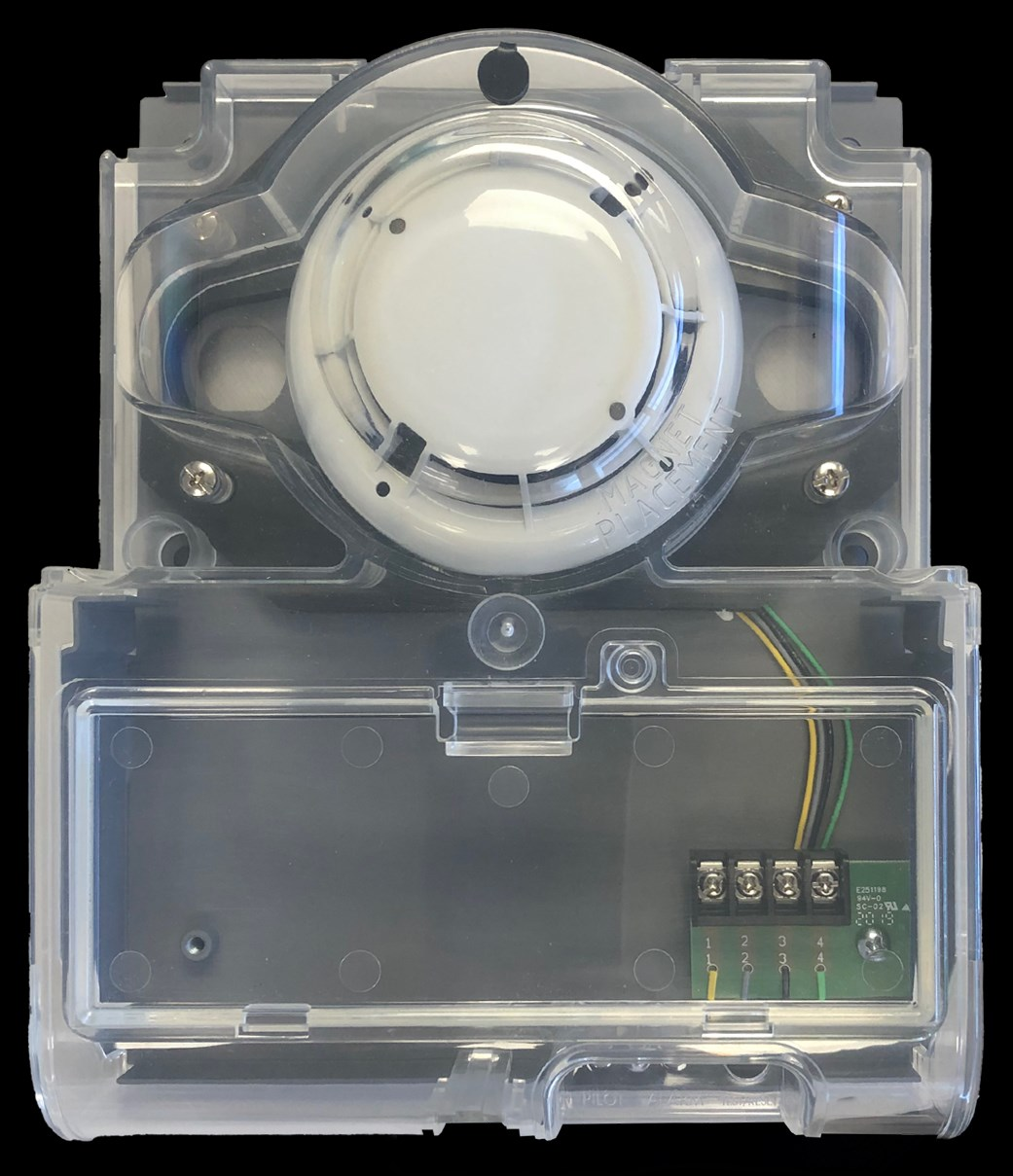

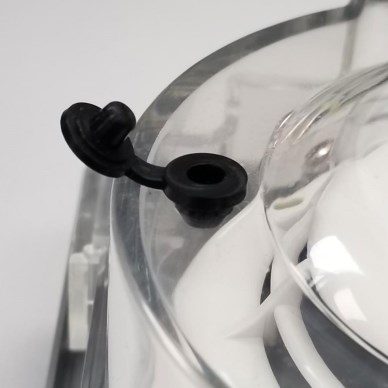

Hochiki DH-100-A – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1
Hochiki DH-100-A – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1
Hochiki DH-100-A – Photo (Hochiki datasheet S. 2)
Photo · Hochiki datasheet · S. 2
Hochiki DH-100-A – Photo (Hochiki datasheet S. 2)
Photo · Hochiki datasheet · S. 2
Hochiki DH-100-A – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1

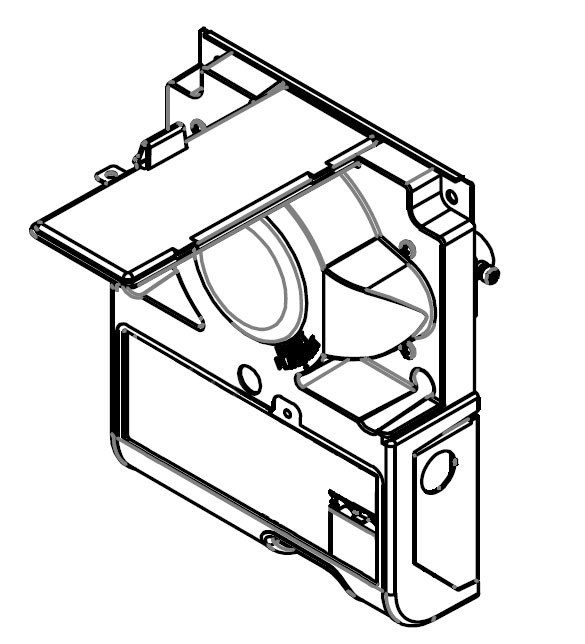

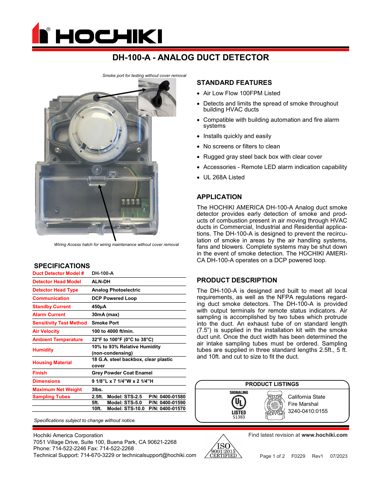

Hochiki DH-100-A – Drawing (Hochiki datasheet S. 1)
Drawing · Hochiki datasheet · S. 1

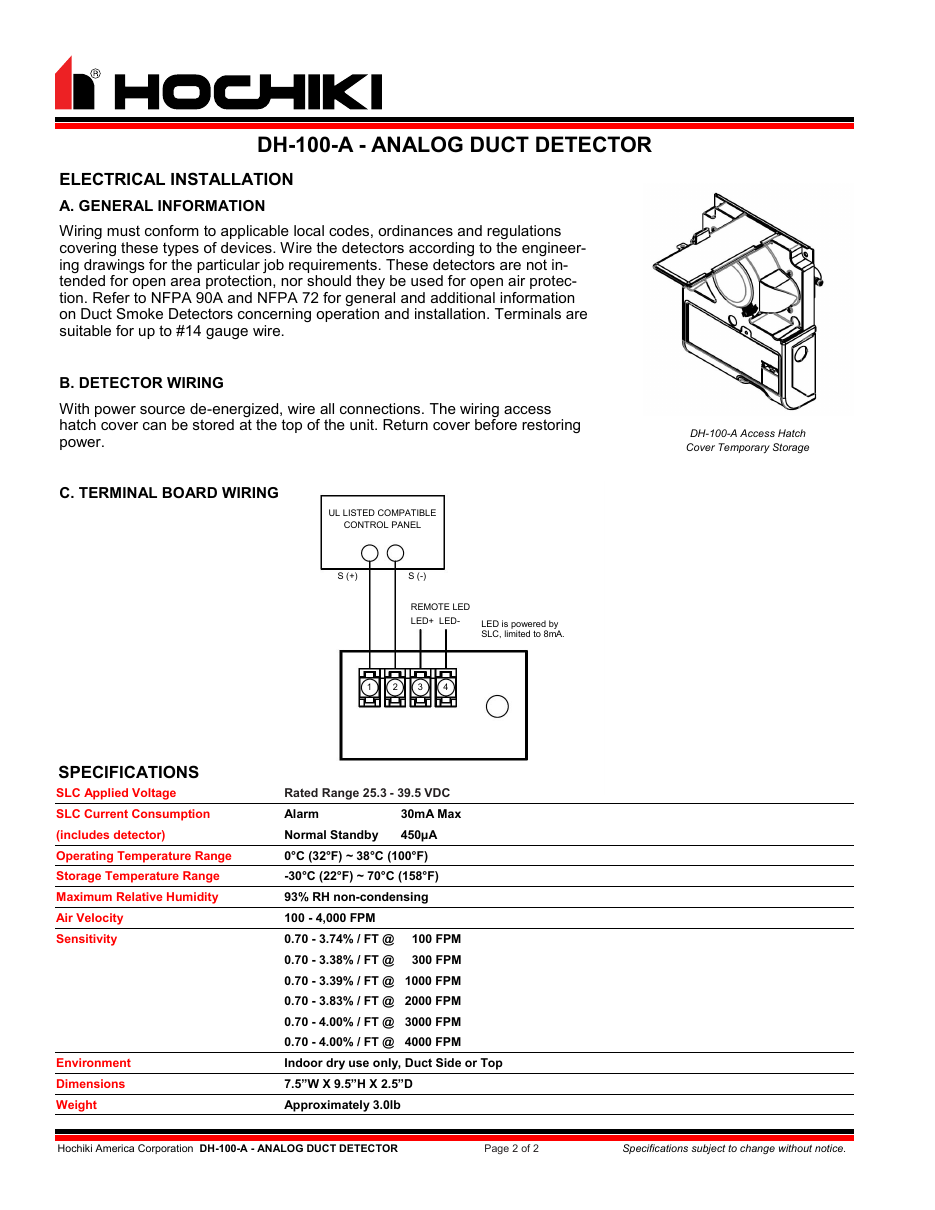

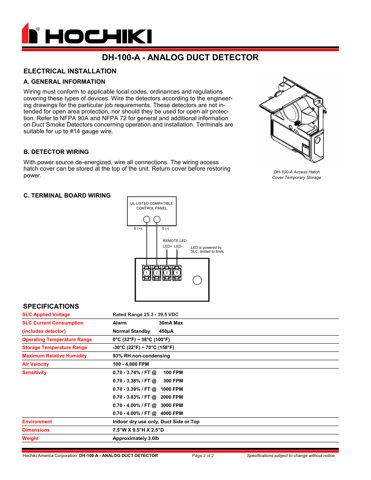

Hochiki DH-100-A – Drawing (Hochiki datasheet S. 2)
Drawing · Hochiki datasheet · S. 2
Source: Hochiki DH-100-A datasheet, p. 1
