DFE-135

Smoke Detector · Fire Detection Systems

Technical data from manufacturer or class sources · not yet verified by a person
24Voltage
View photo ↗

In marine environments where high heat output fires are a concern, fixed temperature heat detectors can provide essential property protection. These detectors are designed for areas where ambient conditions might make other detection methods unsuitable. The DFE 135 / DFE 190 fixed temperature heat detectors offer a choice of 135°F or 190°F activation temperatures. UL Listed for ceiling spacing up to 50 feet by 50 feet (2,500 square feet), these detectors feature a self-restoring mechanism and a heat detection element protected by a built-in guard. Electrical contacts are rated at 100 mA and are normally open. The detectors use a bi-metallic disc that deflects when the predetermined temperature is reached, triggering an alarm condition. Multiple base options are available for installation flexibility. Hochiki America Corporation recommends electronic supervision by a UL listed alarm panel and notes that these detectors are not suitable for life safety protection, as smoke detectors should be used in such applications.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeHeat - Fixed Temperature
Fixed Temperature135°F
CertificationUL Listed
Voltage24 VDC🔖
Response Temperature135° ± 7.5 °F🔖
Contact Rating24VDC @ 100mA🔖
📄
Download datasheet (PDF) (374 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“DFE 135 / DFE 190 FIXED TEMPERATURE HEAT DETECTORS APPLICATION The DFE 135 / DFE 190 fixed temperature heat detectors are suited for installation where high heat output fires are expected or in areas…”

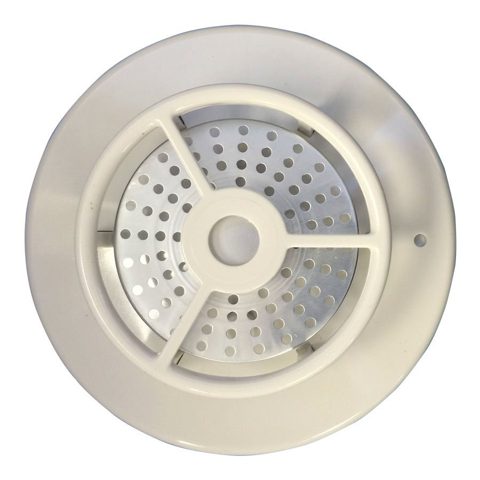

Hochiki DFE-135 – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1

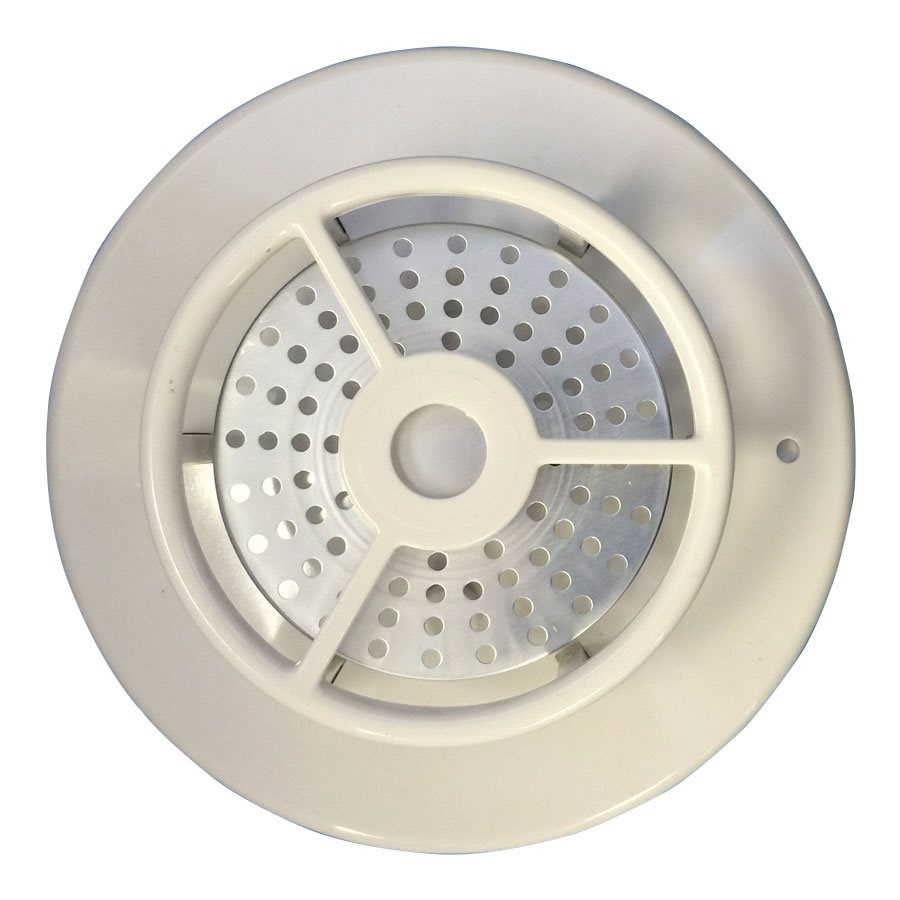

Hochiki DFE-135 – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1

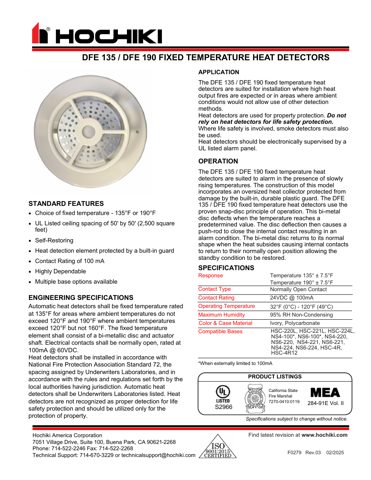

Hochiki DFE-135 – Drawing (Hochiki datasheet S. 1)
Drawing · Hochiki datasheet · S. 1
Source: Hochiki DFE-135 datasheet, p. 1
