Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Hochiki SOE-24V
Hochiki

SOE-24V

Smoke Detector · Fire Detection Systems

Technical data from manufacturer or class sources · not yet verified by a person

Hochiki SOE-24V — Conventional Photoelectric Smoke Detector.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypePhotoelectric Smoke
Voltage24VDC
CertificationUL Listed
Operating Voltage Range8-35 VDC🔖
Standby Current59 µA🔖
Maximum Allowable Alarm Current150 mA🔖
Operating Temperature Range0°C ~ 49°C🔖
Dimension3.94” diameter x 1.77” tall in🔖
Weight3.4 oz🔖
📄
Download datasheet (PDF) (431 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“DESCRIPTION The SOE-24 photoelectric smoke detector is a reliable, high-quality, UL 268 7th Edition listed Photoelectric Smoke Detector allowing it to be used in all open area and in-duct…”

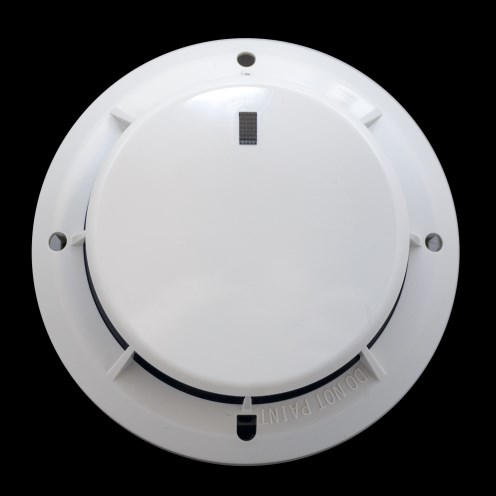

Hochiki SOE-24V – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1
Hochiki SOE-24V – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1

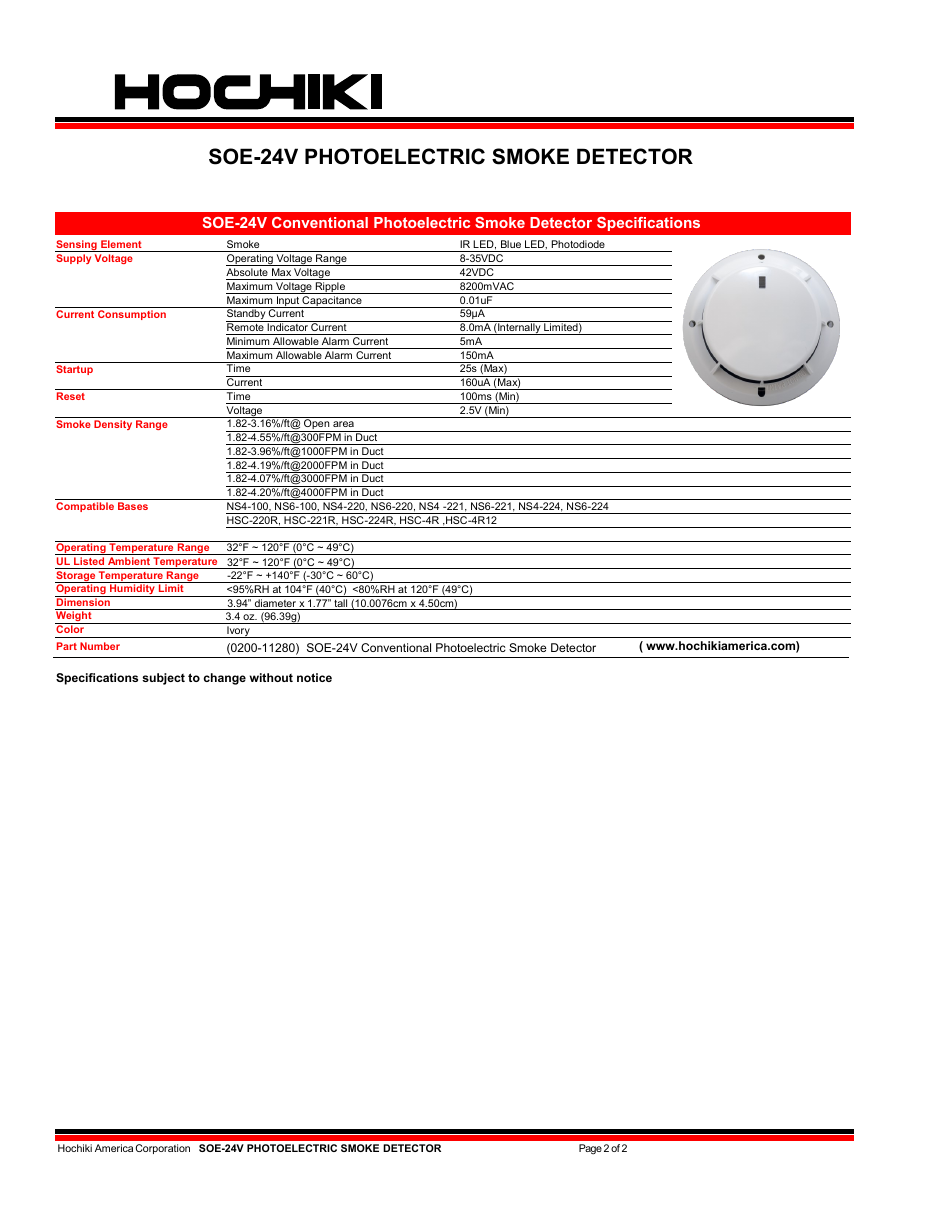

Hochiki SOE-24V – Drawing (Hochiki datasheet S. 2)
Drawing · Hochiki datasheet · S. 2

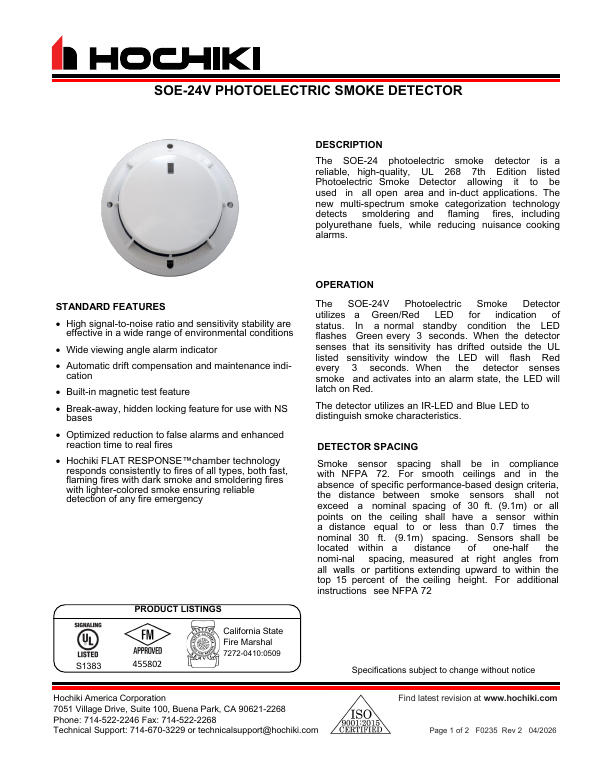

Hochiki SOE-24V – Page preview (Hochiki datasheet S. 1)
Page preview · Hochiki datasheet · S. 1
Source: Hochiki SOE-24V datasheet, p. 1
