Library› Safety & LSA› Fixed Fire Suppression› Water Mist System (Hi-Fog)› Tyco (Johnson Controls) AquaMist ULF AM24
Tyco (Johnson Controls)

AquaMist ULF AM24

Water Mist System (Hi-Fog) · Fixed Fire Suppression

Technical data from manufacturer or class sources · not yet verified by a person
View photo ↗

Tyco (Johnson Controls) AquaMist ULF AM24 — Ultra Low Flow (Low-pressure) automatic closed nozzle for Class A fires; IMO marine system, light/ordinary hazard occupancies.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeAutomatic (Closed) Pendant Nozzle - Marine
K-faktor9.2 LPM/bar^0.5 (0.64 GPM/psi^0.5)
Betriebsdruck7-12 bar (101.5-174.0 psi)
Temperaturbereich57/68/79/93°C (135/155/175/200°F)
MaterialNatural Brass, Stainless Steel
Discharge coefficient K9,2 LPM/bar½🔖
Orifice diameter4,4 mm🔖
📄
Download datasheet (PDF) (491 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“TYCO Ultra Low Flow AquaMist Nozzles Type ULF AM24 are closed (automatic) nozzles intended for use with engineered, water mist systems. They are water mist nozzles that utilize a single fluid jet…”

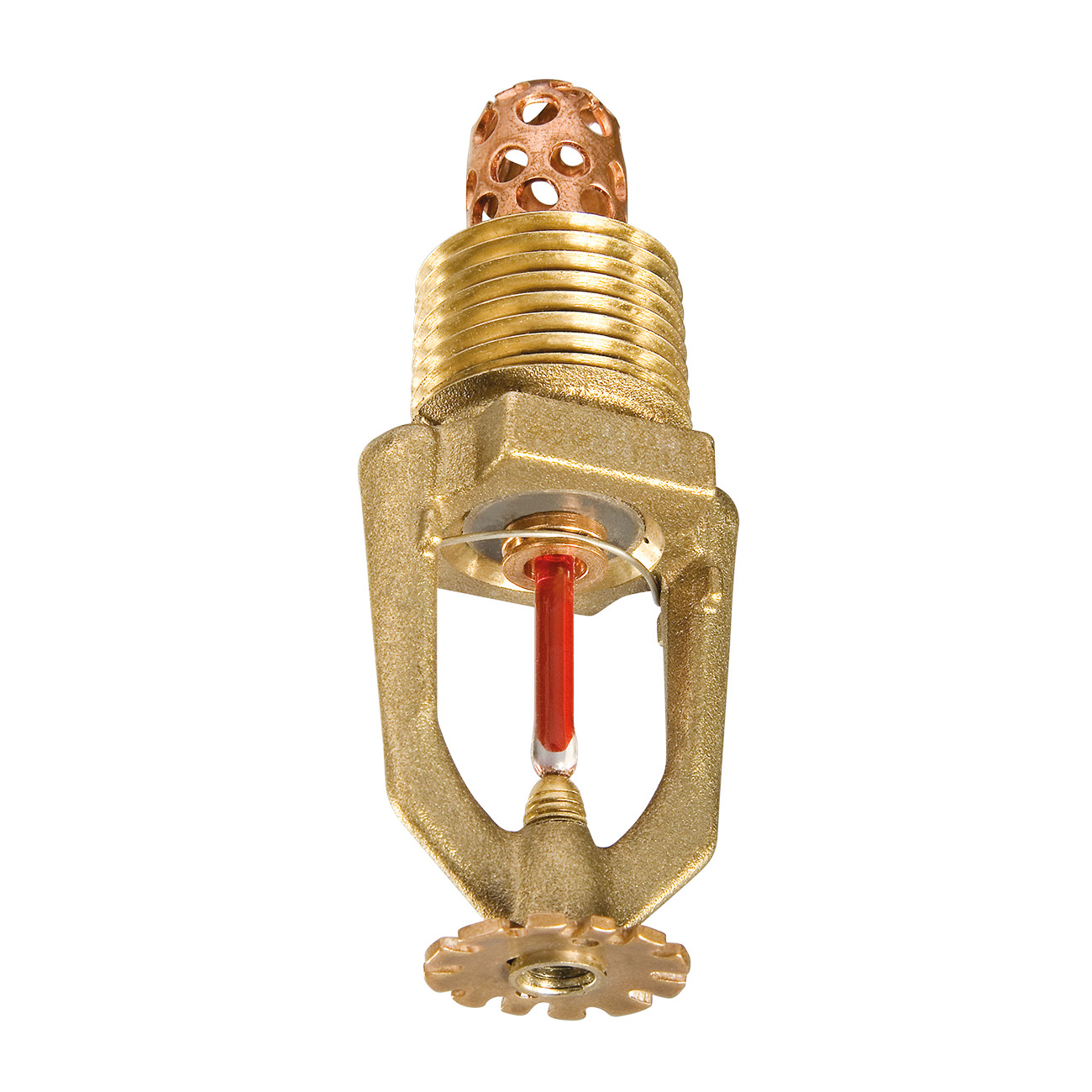

Tyco (Johnson Controls) AquaMist ULF AM24 – Photo (Tyco (Johnson Controls) datasheet S. 1)
Photo · Tyco (Johnson Controls) datasheet · S. 1
Tyco (Johnson Controls) AquaMist ULF AM24 – Photo (Tyco (Johnson Controls) datasheet S. 1)
Photo · Tyco (Johnson Controls) datasheet · S. 1

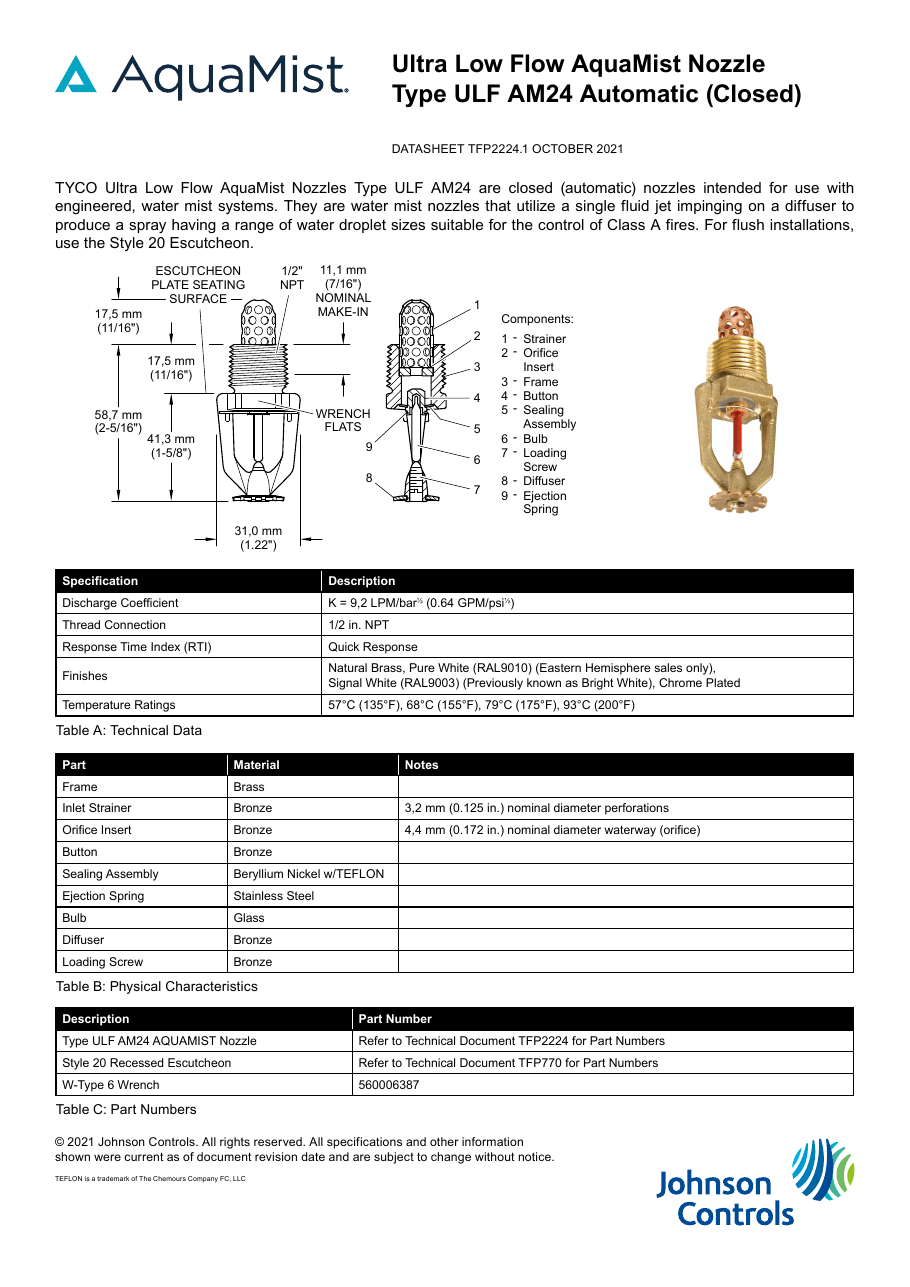

Tyco (Johnson Controls) AquaMist ULF AM24 – Drawing (Tyco (Johnson Controls) datasheet S. 1)
Drawing · Tyco (Johnson Controls) datasheet · S. 1
Source: Tyco (Johnson Controls) AquaMist ULF AM24 datasheet, p. 1
