Library› Safety & LSA› Fixed Fire Suppression› Water Mist System (Hi-Fog)› Tyco (Johnson Controls) AquaMist ULF AM29
Tyco (Johnson Controls)

AquaMist ULF AM29

Water Mist System (Hi-Fog) · Fixed Fire Suppression

Technical data from manufacturer or class sources · not yet verified by a person
View photo ↗

Tyco (Johnson Controls) AquaMist ULF AM29 — Ultra Low Flow (Low-pressure) for Class A fire suppression; data protection, offices (LH/OH1/HC1 risks).

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeAutomatic (Closed) Pendant Nozzle
K-faktor8.5 LPM/bar^0.5 (0.59 GPM/psi^0.5)
Betriebsdruck7-12 bar
Thread1/2 inch NPT
ZertifizierungFM Approved
Discharge coefficient K8,5 lpm/bar1/2🔖
Orifice diameter4,4 mm🔖
📄
Download datasheet (PDF) (1002 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Ultra Low Flow AQUAMIST Nozzles Type ULF AM29 Automatic (Closed) General Description TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM29 are closed (automatic) nozzles intended for use with…”

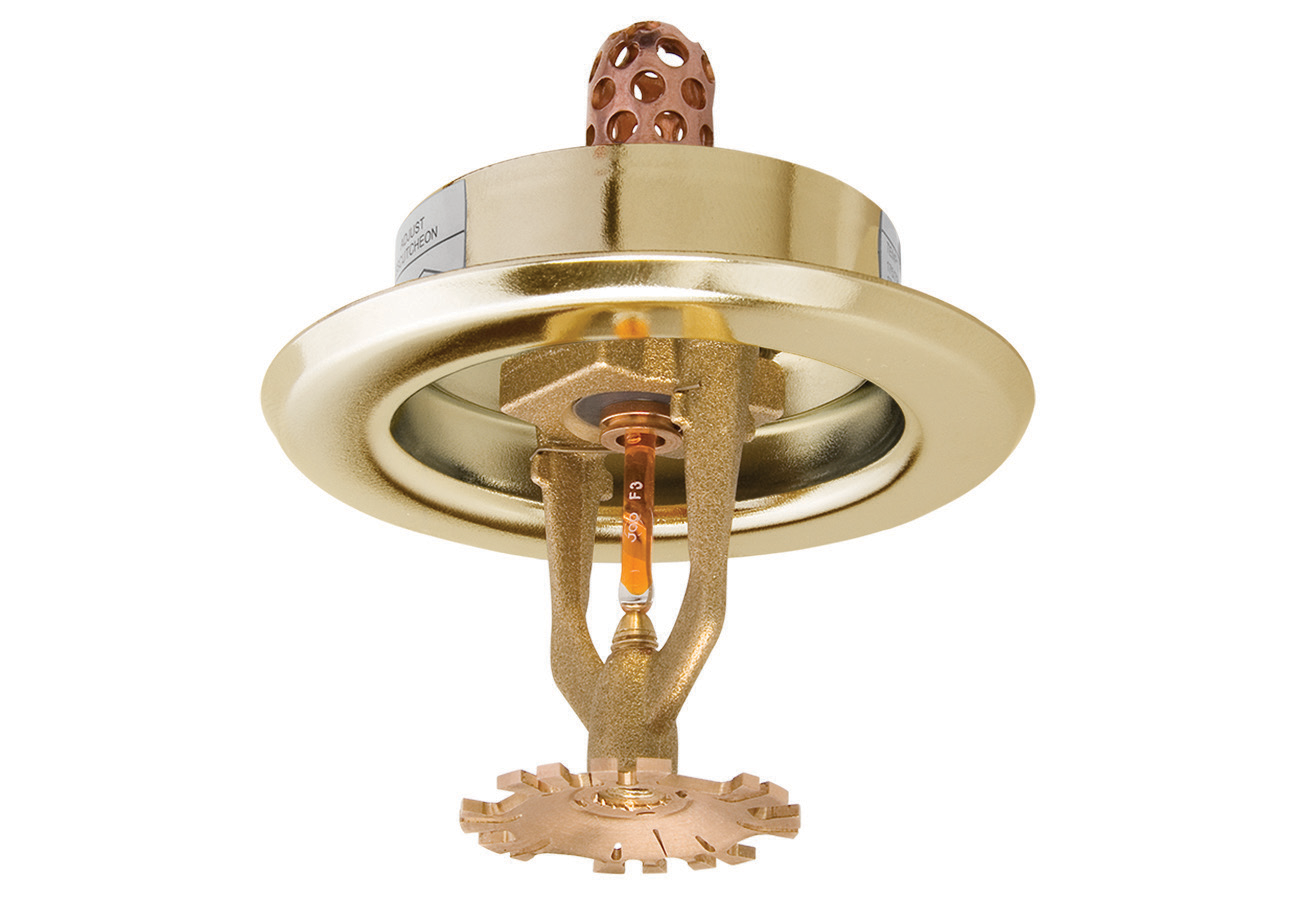

Tyco (Johnson Controls) AquaMist ULF AM29 – Photo (Tyco (Johnson Controls) datasheet S. 1)
Photo · Tyco (Johnson Controls) datasheet · S. 1

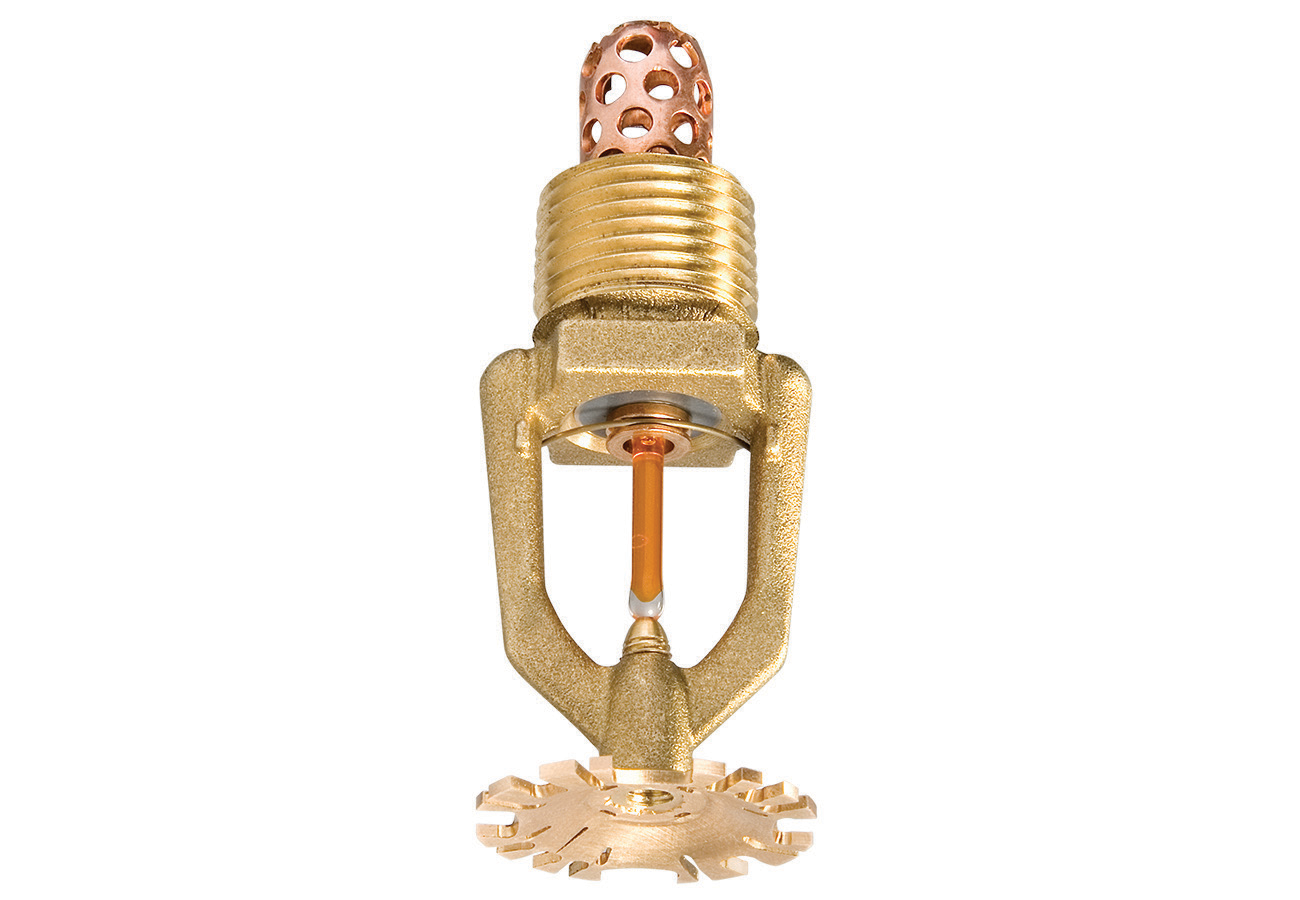

Tyco (Johnson Controls) AquaMist ULF AM29 – Photo (Tyco (Johnson Controls) datasheet S. 1)
Photo · Tyco (Johnson Controls) datasheet · S. 1
Tyco (Johnson Controls) AquaMist ULF AM29 – Photo (Tyco (Johnson Controls) datasheet S. 1)
Photo · Tyco (Johnson Controls) datasheet · S. 1
Tyco (Johnson Controls) AquaMist ULF AM29 – Photo (Tyco (Johnson Controls) datasheet S. 1)
Photo · Tyco (Johnson Controls) datasheet · S. 1

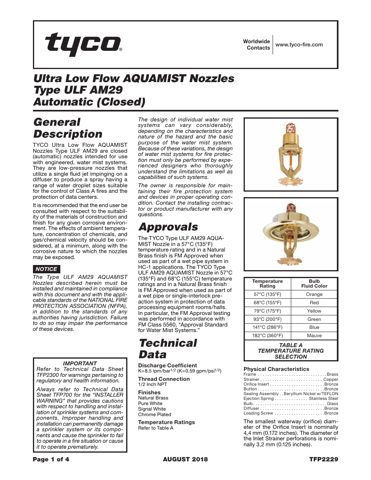

Tyco (Johnson Controls) AquaMist ULF AM29 – Drawing (Tyco (Johnson Controls) datasheet S. 1)
Drawing · Tyco (Johnson Controls) datasheet · S. 1

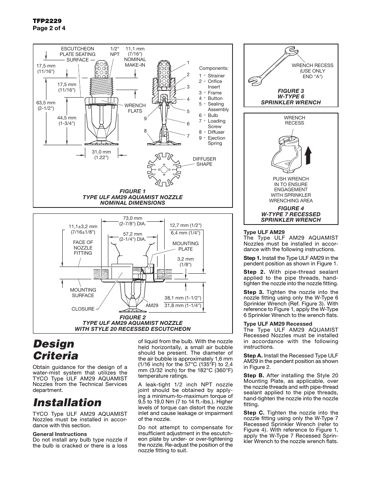

Tyco (Johnson Controls) AquaMist ULF AM29 – Drawing (Tyco (Johnson Controls) datasheet S. 2)
Drawing · Tyco (Johnson Controls) datasheet · S. 2

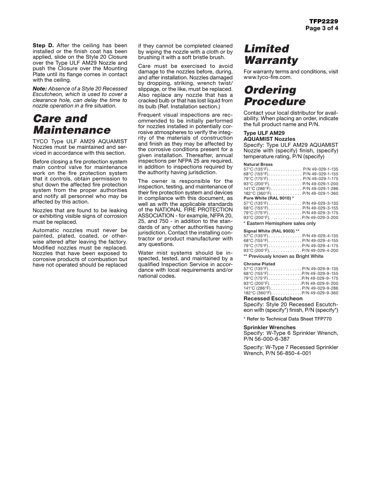

Tyco (Johnson Controls) AquaMist ULF AM29 – Drawing (Tyco (Johnson Controls) datasheet S. 3)
Drawing · Tyco (Johnson Controls) datasheet · S. 3

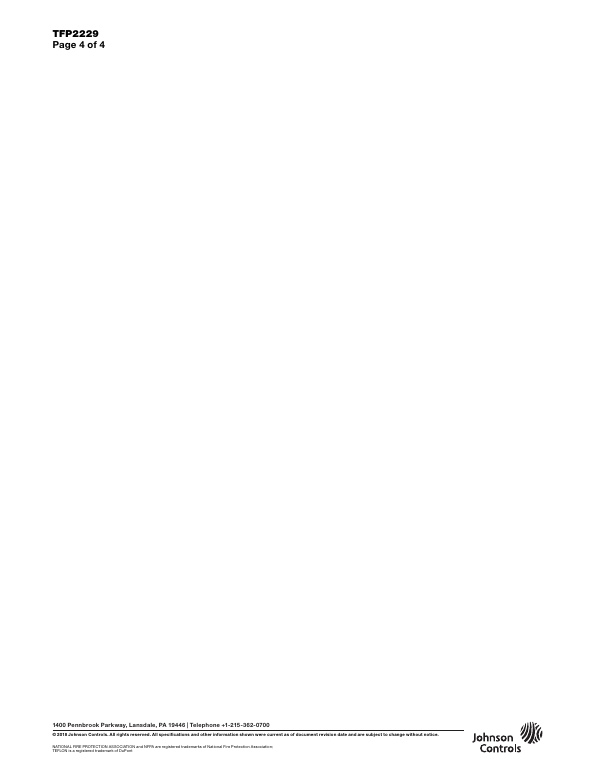

Tyco (Johnson Controls) AquaMist ULF AM29 – Page preview (Tyco (Johnson Controls) datasheet S. 4)
Page preview · Tyco (Johnson Controls) datasheet · S. 4
Source: Tyco (Johnson Controls) AquaMist ULF AM29 datasheet, p. 1
