OceanSphereENGINES

PAH 10

Reverse Osmosis · Freshwater Generators

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​‌​‍​​‍⁠‌​⁠​‌⁠​‍‍
4.3 kWPower
8 kgWeight

On a ship, high-pressure pumps like the PAH 10 are crucial for various critical systems such as fire-fighting and flushing processes. These compact and light pumps, designed to operate under continuous pressure up to 200 bar, can be directly coupled to electric motors or combustion engines without requiring additional lubrication. They generate minimal pulsations in the pressure line and offer a long service life with few wearing parts, making them ideal for marine environments where reliability is paramount. The PAH 10 pump also features a stainless steel construction and is available with an ATEX certificate for use in potentially explosive atmospheres on board.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Max Flow10 l/min (2.6 gpm)
Max Pressure160 bar (2,320 psi)
Speed Range700-1,800 rpm
DesignAxial piston, water-lubricated
Power (kW)4.3 kW🔖
Weight (kg)7.7 kg🔖
Max. pressure, continuous160 bar🔖
Max. flow cont. at 1500 RPM13.5 l/min🔖
Max. power requirement at 1500 RPM4.3 kW🔖
Max. speed cont.1800 rpm🔖
Max. pressure, peak220 bar🔖
📄
Download datasheet (PDF) (1956 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

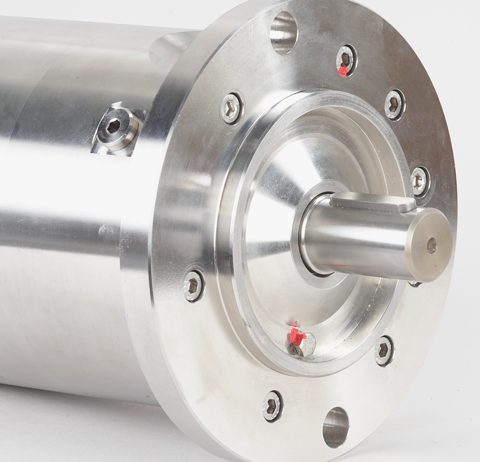

Danfoss PAH 10 – Photo (Danfoss datasheet S. 1)
Photo · Danfoss datasheet · S. 1
