Library› Engine Room› Heat Exchangers› Brazed Plate Heat Exchanger› Danfoss XB66
Danfoss

XB66

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TechnologyMicro Plate (MPHE), stainless steel brazed
MaterialStainless steel AISI 304/316L (1.4404)
Design PressureUp to 30 bar
Temperature Range-196°C to +200°C
📄
Download datasheet (PDF) (459 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Micro Plate Heat Exchangers - a revolutionary technology from Danfoss. Characterized by their unique plate pattern, MPHEs enable heat to be transferred more effectively than any previous model of…”

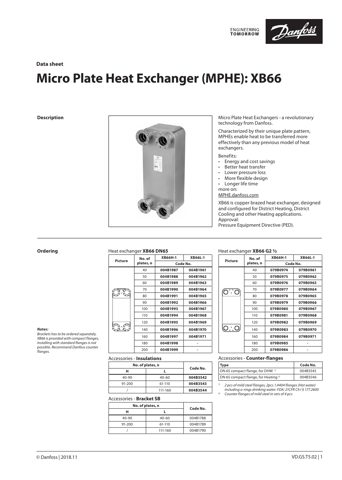

Danfoss XB66 – Drawing (Danfoss datasheet S. 1)
Drawing · Danfoss datasheet · S. 1

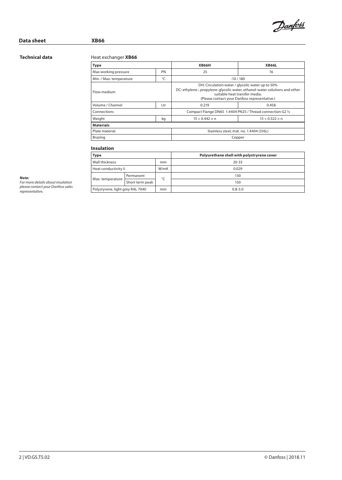

Danfoss XB66 – Drawing (Danfoss datasheet S. 2)
Drawing · Danfoss datasheet · S. 2
Danfoss XB66 – Drawing (Danfoss datasheet S. 3)
Drawing · Danfoss datasheet · S. 3
Danfoss XB66 – Page preview (Danfoss datasheet S. 4)
Page preview · Danfoss datasheet · S. 4
Source: Danfoss XB66 datasheet, p. 1
