Facet

CPS-3.2E + EMB

Oily Water Separator (15 ppm) · Oily Water Separator

Technical data from manufacturer or class sources · not yet verified by a person​‍​⁠⁠⁠‍​​‌‌‌⁠⁠​⁠⁠‍⁠‌

Facet CPS-3.2E + EMB — Bilgenwasser-Separator mit Keramikmembran (5ppm Effluent).

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

ModelCPS 3.2E + EMB
A503∕8 mm
B1280 mm
C245∕8 mm
Weight7027∕32 lbs
Reference values — not verified
Capacity0.73 m³/h (3.2 gpm)
Effluent-Ölgehalt<5 ppm
ZertifizierungIMO MEPC.107(49)
Stromversorgung380/440V, 50/60 Hz

Source: directindustry.com · not checked against a manufacturer datasheet

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

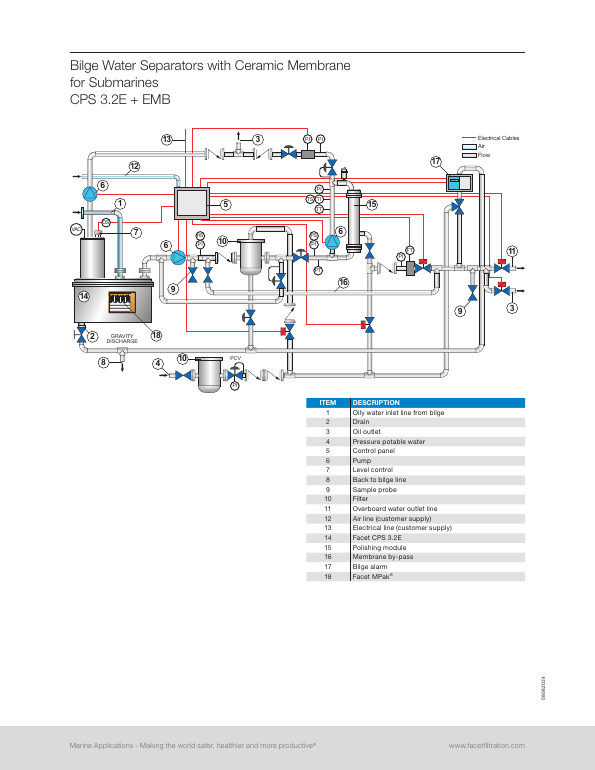

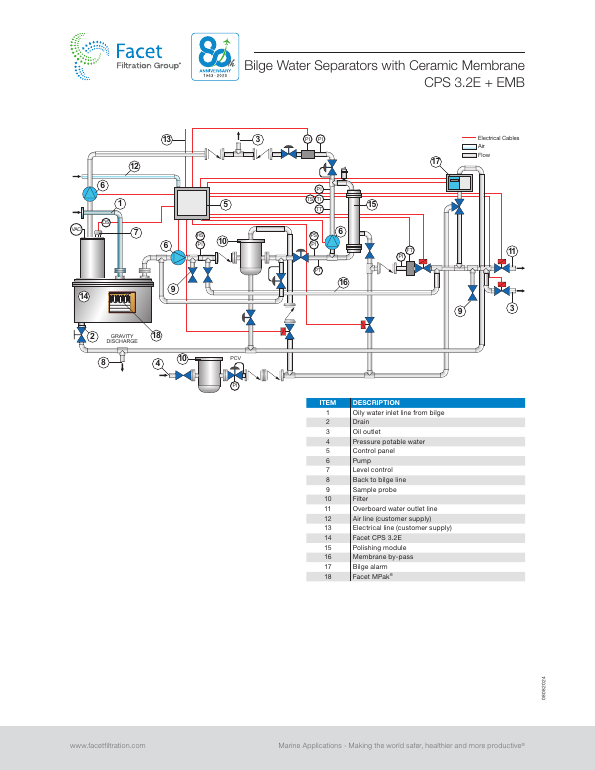

“SERVICE Oil / Water from bilge tank Overboard discharge Bilge back Potable water inlet Oil discharge Common drain to bilge”Source: Facet CPS-3.2E + EMB datasheet, p. 1

Applications

  • bilge water

Features

  • Oil / Water from bilge tank
  • Overboard discharge
  • Bilge back
  • Potable water inlet
  • Oil discharge
  • Common drain to bilge
Facet CPS-3.2E + EMB – Page preview (6128b1500e97_S2-5 S. 2)
Page preview · 6128b1500e97_S2-5 · S. 2

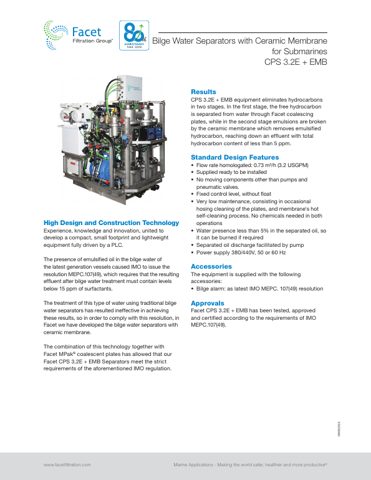

Facet CPS-3.2E + EMB – Page preview (6128b1500e97_S2-5 S. 3)
Page preview · 6128b1500e97_S2-5 · S. 3
Facet CPS-3.2E + EMB – Page preview (6128b1500e97_S2-5 S. 4)
Page preview · 6128b1500e97_S2-5 · S. 4
Source: Facet CPS-3.2E + EMB datasheet, p. 2
