Library› Engine Room› Steering Gear› Steering Gear› Data Hidrolik DP 30
Data Hidrolik

DP 30

Steering Gear · Steering Gear

Technical data from manufacturer or class sources · not yet verified by a person

Data Hidrolik DP 30 — Manual helm pump for small yachts.

Specifications

Technical data.reference — unverified

Displacement30 cc/rev
Pressure60 bar
PaintSemi-gloss epoxy enamel black
CertificationsISO 10592: 1994(E)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

This is a hydraulic helm pump used for steering marine vessels.

Applications

  • Steering
  • Dual Steering

Features

  • Non-return valve
  • T fitting
  • Oil balancing line
  • Air purge filler cap

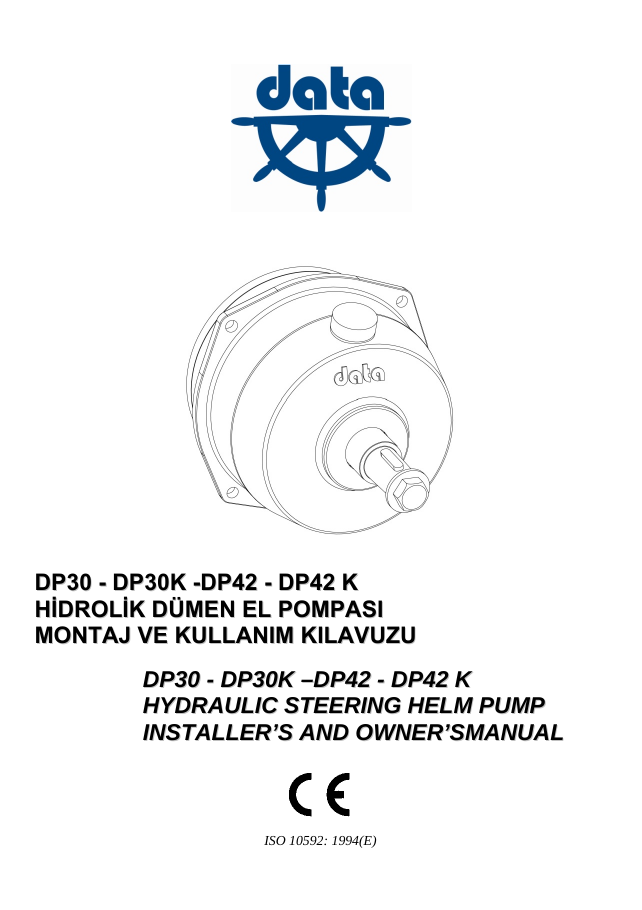

Data Hidrolik DP 30 – Photo (e8518ec6e59c_S1-6 S. 1)
Photo · e8518ec6e59c_S1-6 · S. 1

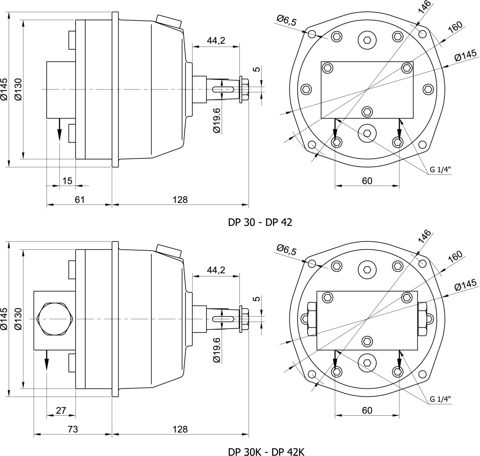

Data Hidrolik DP 30 – Photo (e8518ec6e59c_S1-6 S. 3)
Photo · e8518ec6e59c_S1-6 · S. 3

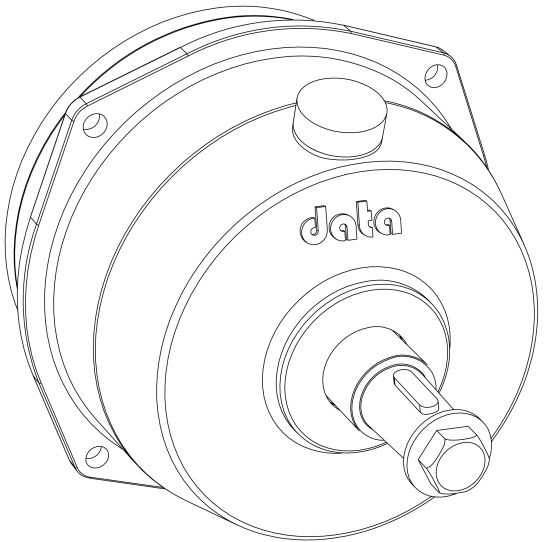

Data Hidrolik DP 30 – Drawing (e8518ec6e59c_S1-6 S. 1)
Drawing · e8518ec6e59c_S1-6 · S. 1

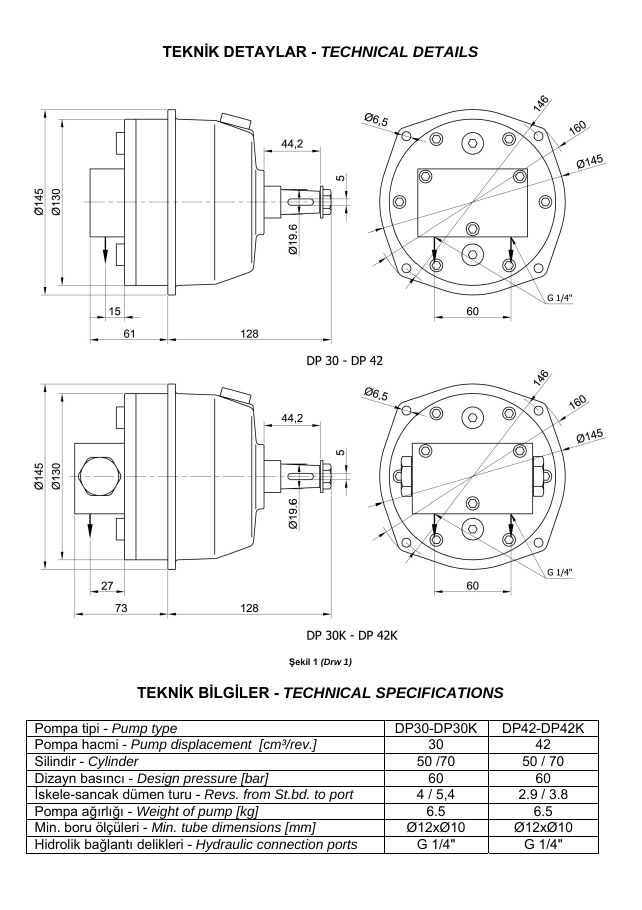

Data Hidrolik DP 30 – Drawing (e8518ec6e59c_S1-6 S. 2)
Drawing · e8518ec6e59c_S1-6 · S. 2

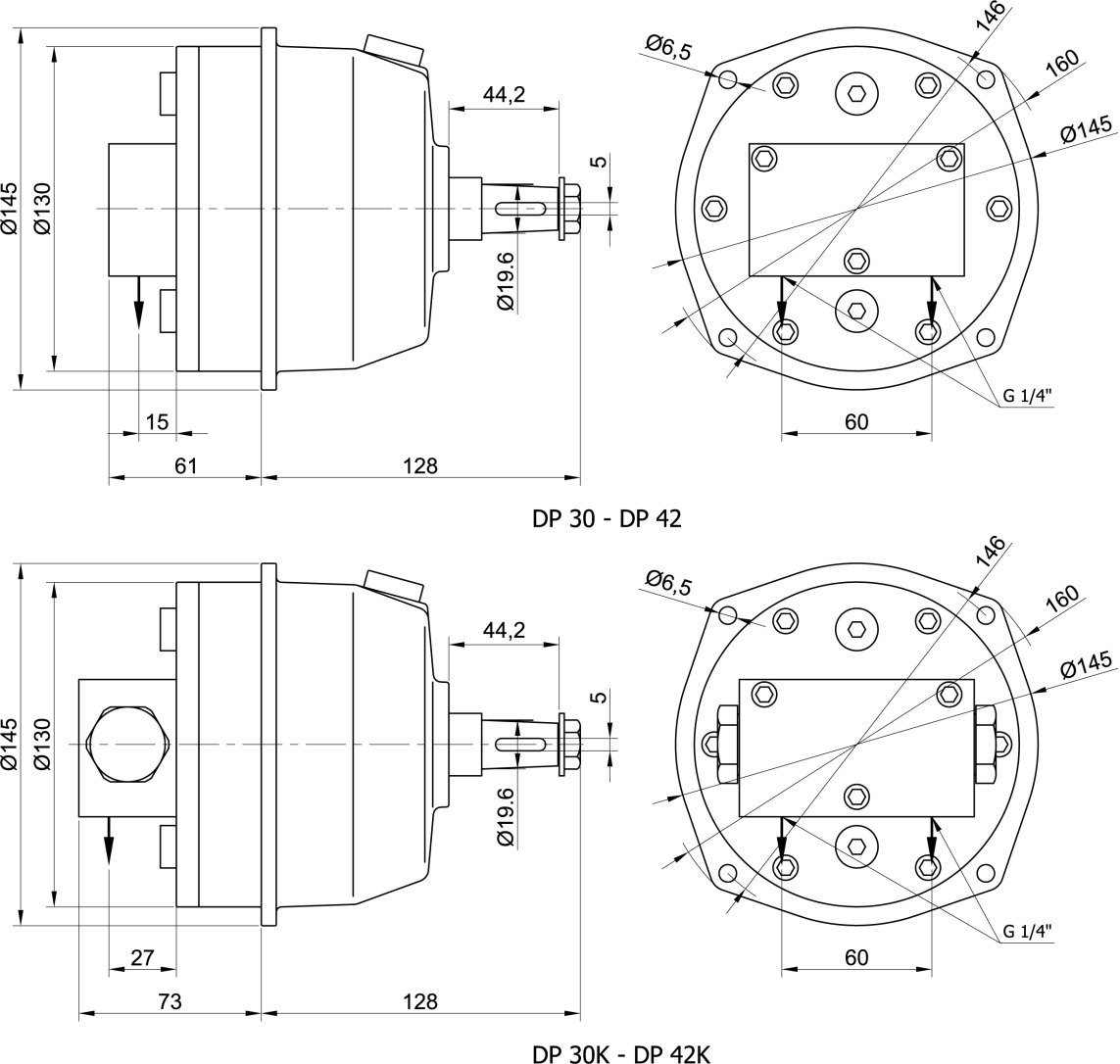

Data Hidrolik DP 30 – Drawing (e8518ec6e59c_S1-6 S. 3)
Drawing · e8518ec6e59c_S1-6 · S. 3

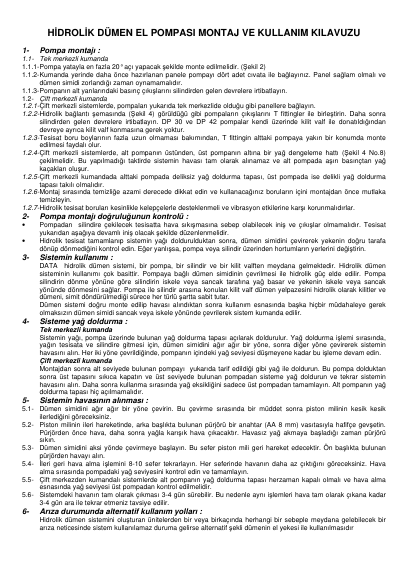

Data Hidrolik DP 30 – Page preview (e8518ec6e59c_S1-6 S. 4)
Page preview · e8518ec6e59c_S1-6 · S. 4

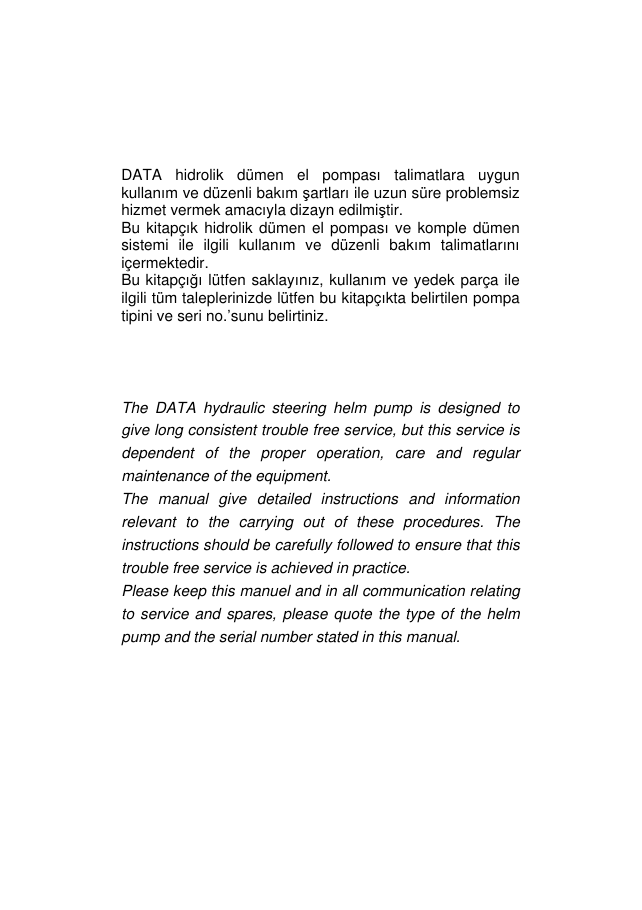

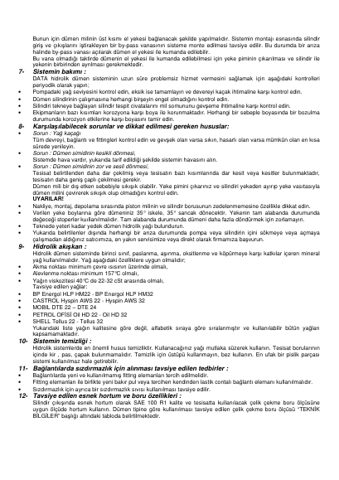

Data Hidrolik DP 30 – Page preview (e8518ec6e59c_S1-6 S. 5)
Page preview · e8518ec6e59c_S1-6 · S. 5

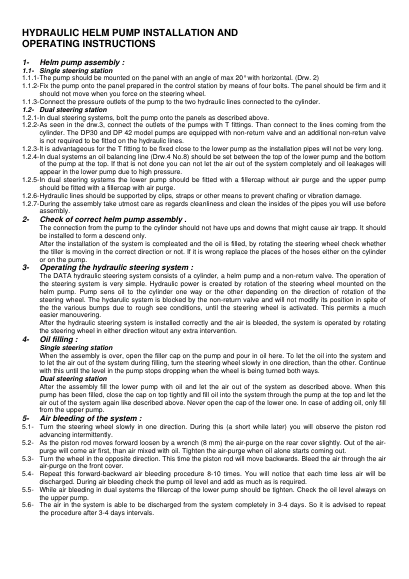

Data Hidrolik DP 30 – Page preview (e8518ec6e59c_S1-6 S. 6)
Page preview · e8518ec6e59c_S1-6 · S. 6
Source: Data Hidrolik DP 30 datasheet, p. 6
