Library› Engine Room› Pumps› Self-Priming Pump› DESMI SA 100-235
DESMI

SA 100-235

Self-Priming Pump · Pumps

Technical data from manufacturer or class sources · not yet verified by a person

DESMI SA 100-235 — marine self-priming centrifugal pump - large capacity.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Fv1800 N
Fh1250 N
f2200 N
 Mt470 Nm
Weight kg125
Σ F2200 N
Σ Mt470 Nm
Weight125 kg
Höchstdrehzahl2500 RPM
Fv (N)1800
Fh (N)1250
F (N)2200
Mt (Nm)470
F2200 N
Mt470 Nm
Waga125 kg
Maks. liczba obrotów2500 RPM
Reference values — not verified
Flow RateUp to 610 m³/h (50Hz), 730 m³/h (60Hz)
HeadUp to 115 m (375 ft)
Nominal DiameterDN 20-200 mm

Source: nauticexpo.com · not checked against a manufacturer datasheet

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“: The max. permissible sum of the vertical forces on the two flanges. : The max. permissible sum of the horizontal forces on the two flanges. : The vectorial sum of the two forces Fv and Fh. : The…”

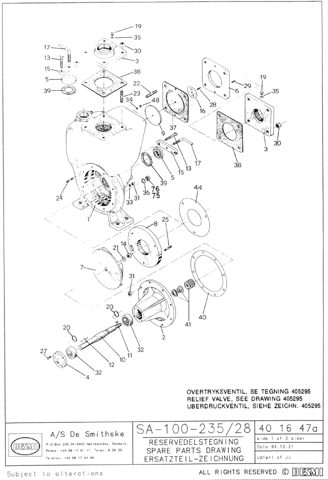

DESMI SA 100-235 – Photo (38d3080ee12c_S5-32 S. 27)
Photo · 38d3080ee12c_S5-32 · S. 27

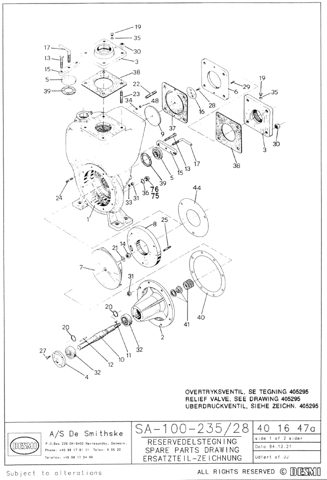

DESMI SA 100-235 – Photo (a69347aed5e3_S5-31 S. 26)
Photo · a69347aed5e3_S5-31 · S. 26
DESMI SA 100-235 – Drawing (825683a5ea5a_S6-14 S. 6)
Drawing · 825683a5ea5a_S6-14 · S. 6
DESMI SA 100-235 – Drawing (825683a5ea5a_S6-14 S. 7)
Drawing · 825683a5ea5a_S6-14 · S. 7
DESMI SA 100-235 – Drawing (825683a5ea5a_S6-14 S. 8)
Drawing · 825683a5ea5a_S6-14 · S. 8

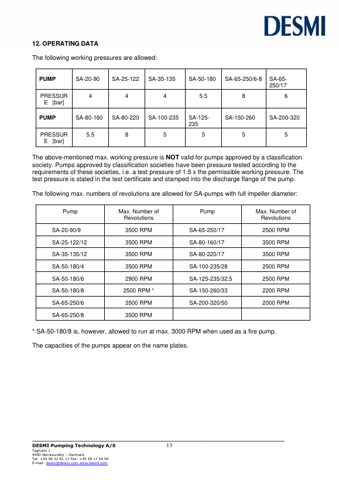

DESMI SA 100-235 – Page preview (825683a5ea5a_S6-14 S. 9)
Page preview · 825683a5ea5a_S6-14 · S. 9

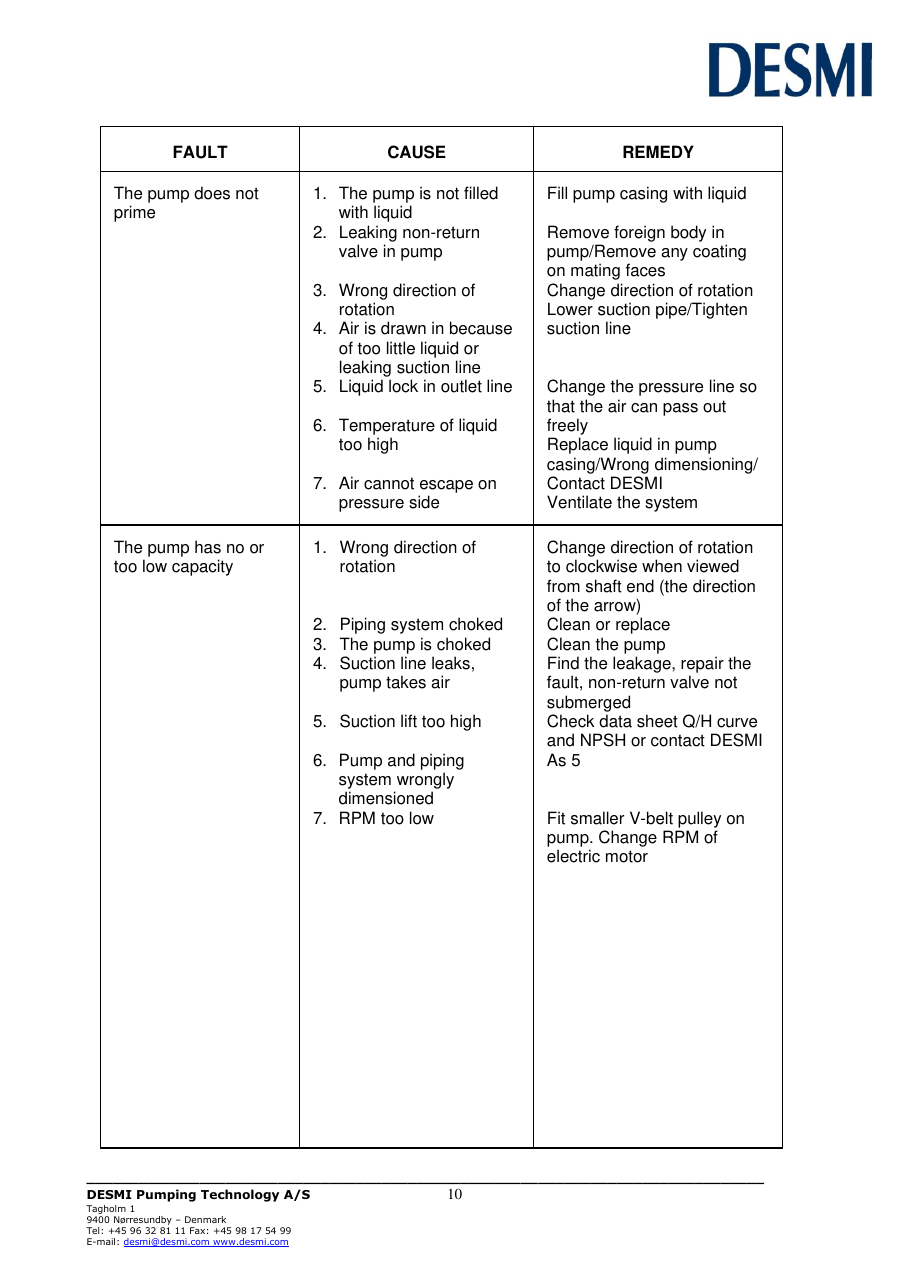

DESMI SA 100-235 – Page preview (f98088ff2519_S6-32 S. 10)
Page preview · f98088ff2519_S6-32 · S. 10

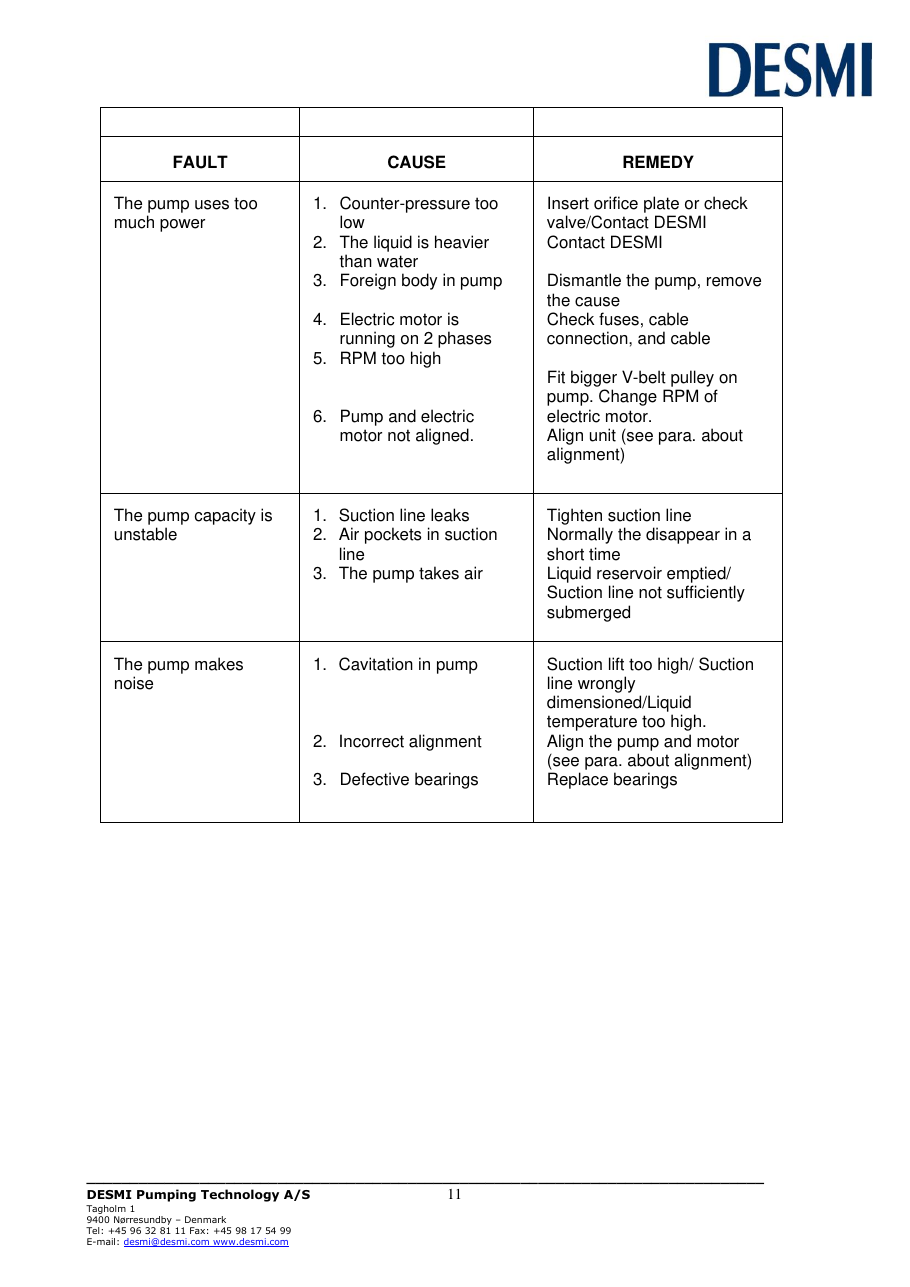

DESMI SA 100-235 – Page preview (f98088ff2519_S6-32 S. 11)
Page preview · f98088ff2519_S6-32 · S. 11
Source: DESMI SA 100-235 datasheet, p. 1
