AE1E/AE1N/AE1H Series

Progressive Cavity Pump · Pumps

Technical data from manufacturer or class sources · not yet verified by a person​‍​⁠‍‍⁠‌‌‍‍​​‍​​‍​‍‍

Allweiler AE1E/AE1N/AE1H Series — Marine, Bearing Frame 1-Stage.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Max Flow RateUp to 3100 l/min
Max Pressure16-48 bar
Max Viscosity300,000 mm²/s
DesignBearing Frame Design (ID/H-ID)
Available Sizes50-1450 l/min
📄
Download datasheet (PDF) (1107 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Application For handling liquid to highly viscous, neutral or aggressive, uncontaminated or abrasive liquids, liquids containing gases or which tend to froth, also containing fibres and solid matter.”

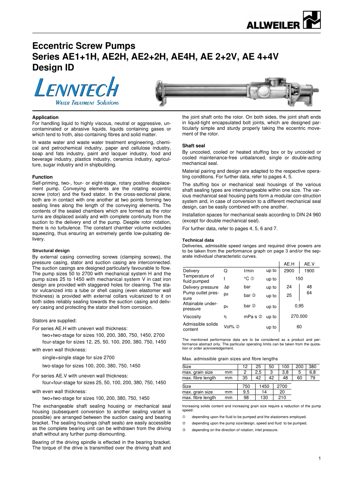

Allweiler AE1E/AE1N/AE1H Series – Drawing (Allweiler datasheet S. 1)
Drawing · Allweiler datasheet · S. 1

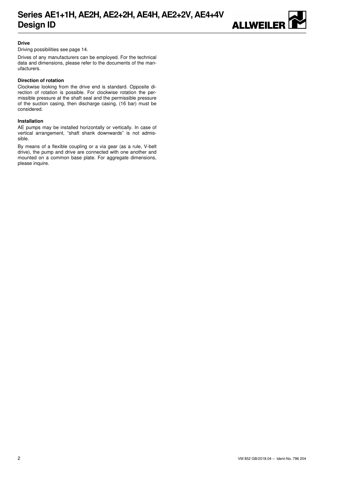

Allweiler AE1E/AE1N/AE1H Series – Drawing (Allweiler datasheet S. 2)
Drawing · Allweiler datasheet · S. 2
Allweiler AE1E/AE1N/AE1H Series – Drawing (Allweiler datasheet S. 4)
Drawing · Allweiler datasheet · S. 4

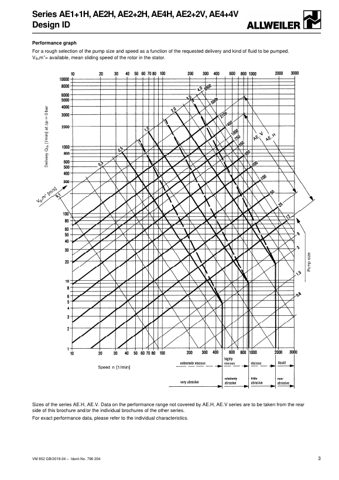

Allweiler AE1E/AE1N/AE1H Series – Page preview (Allweiler datasheet S. 3)
Page preview · Allweiler datasheet · S. 3
Source: Allweiler-AE1-AE2-AE4-GE-852-Eccentric-Srew-pump-Lenntech, p. 1
