Tanabe H-74 — Main Air Compressor.
Inspector Detail
▸
Common issues
- Carbon buildup in air passages and valves, raising the risk of an air-line fire
- Intercooler/aftercooler tube fouling reducing cooling efficiency and raising stage discharge temperature
- Piston ring or cylinder liner wear causing low delivery pressure or excess oil carry-over
- Safety relief valve failing to lift at set pressure due to fouling or corrosion
- Automatic condensate drain trap blockage allowing water buildup in the air receiver
- Unloader/capacity control malfunction causing constant running or short-cycling
- Cooling water leakage into the crankcase lubricating oil
Inspection checklist
- Check final-stage discharge temperature against the safe operating limit
- Test safety relief valves for correct lift pressure
- Drain and inspect intercooler/aftercooler and receiver condensate drains
- Inspect cylinder heads and valves for carbon deposits at overhaul
- Verify automatic start/stop pressure switch settings against the receiver's design pressure
- Check cooling water flow and temperature; check for oil contamination in the cooling water
- Check crankcase oil level and condition, change per schedule
- Test low oil pressure and high air temperature trips
Service intervals
| Oil change | commonly every 500-1,000 running hours or per Tanabe's schedule |
| Safety valve lift test | annually - statutory/class requirement for starting air receivers and compressors |
| Intercooler/aftercooler cleaning | commonly every 2,000-4,000 hours, or sooner if discharge temperature rises |
| Valve plate/piston ring inspection at major overhaul | typically 8,000-12,000 hours, strongly duty-dependent |
Typical wear limits
| Cylinder liner wear | general reciprocating air compressor practice tolerates bore wear up to roughly 0.3-0.5% of bore diameter before liner renewal is considered - confirm against Tanabe's own overhaul manual for the H-74, no maker figure assumed here |
| Piston ring end gap | typically renewed once the gap has opened to about 3-4 times the new-condition value for this class of compressor - confirm against the maker's manual rather than treating this as an exact number |
Ranges are typical for this design class. Always confirm against the manufacturer documentation for your serial number.
Critical spares
- Suction/discharge valve plates (per stage)
- Piston rings and gudgeon pin bushes
- Safety relief valve (spare unit or repair kit)
- Cooling water pump seal/gasket kit
- Oil filter element
- Automatic condensate drain trap
Safety
- Starting air receivers store high-pressure air (this unit is rated around 30 kg/cm2 / roughly 29 bar) - explosion/projectile risk if relief protection is defective; never isolate a safety valve without an approved bypass procedure
- High cylinder discharge temperature can ignite carbonised lubricating oil deposits in the delivery line ('air-line fire') - keep passages clean
- Fully depressurise and lock out before opening any casing, valve or pipe joint
- Hot surfaces at cylinder heads and delivery piping
Class survey
Starting air receivers and compressors are statutory/class items. Class wants safety valve lift-test certificates, periodic internal/external receiver survey, and confirmation that starting air line non-return and isolating valves are inspected alongside the compressor at machinery survey.
Components & Design
Component data being added…

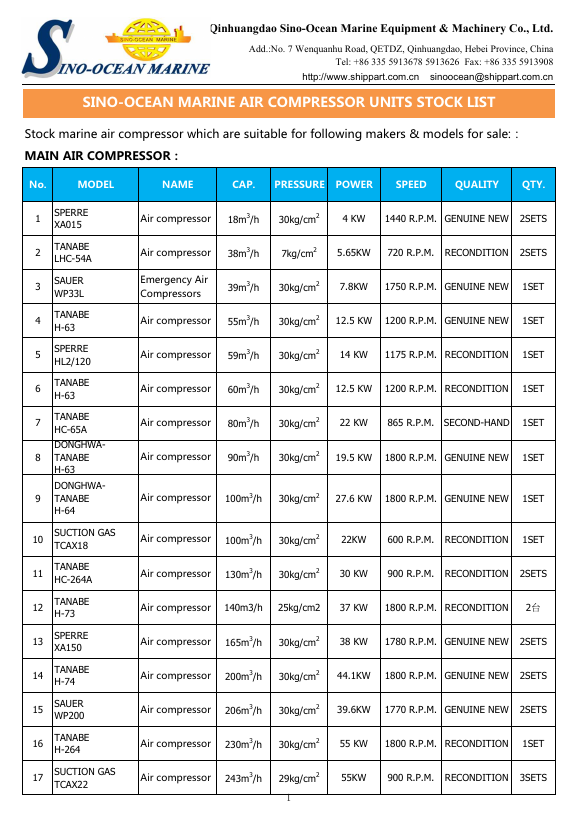

Technical Data
🤖 Ask about this model
One free question — answered like a marine engineer. No account needed.
Common failures & inspection points
Verify safety valve opens at set pressure (typically 1.1-1.2 times max working pressure). Perform bench testing or in-situ pneumatic pressure test. Document set pressure annually. Check inter-stage valve set pressure does not exceed 1.2x stage working pressure; final stage not to exceed 1.1x rated discharge pressure.
Inspect oil level in crankcase sump before startup. Check oil color and clarity for water droplets or discoloration indicating contamination. Verify oil meets ISO VG specification for compressor type. Replace oil per maintenance schedule (typically 250-500 operating hours). Test oil for water content and acid number.
Verify air dryer and filters are functional and not blocked. Check intercooler and aftercooler operation. Inspect oil/water separator for debris or oil carryover. Sample discharged air for oil and water content per ISO 1217 and ISO 8573. Ensure moisture removal to prevent valve freezing and control system failures.
Visually inspect compressor body, air receiver tank, and all piping for rust, corrosion, stress cracks, or dents. Test for leaks at seams and connections using soap solution under pressure. Verify pressure vessel certification and hydrostatic test records. Check valve plate and cylinder head for erosion or damage from cavitation.
Confirm unloader valve and discharge line are clear and functional at startup. Verify automatic discharge valves open to prevent excessive pressure buildup at startup. Inspect for blockages in suction line and unloader passages. Test pressure relief under no-load and full-load conditions.
Type-general inspection and maintenance points for this equipment category — not model-specific.
