Library› Navigation› Position & Heading› Magnetic Compass› AUTONAUTIC C20-00128
AUTONAUTIC

C20-00128

Magnetic Compass · Position & Heading

Class-certified type (DNV register) · technical data sheet not yet verified

AUTONAUTIC C20-00128 is a marine magnetic compass. It is normally installed on or near the bridge in a position selected to minimize magnetic disturbance and provide the required steering or bearing reference. Its primary purpose is to provide an independent heading indication using the Earth's magnetic field. Unlike gyro or satellite-based heading systems, the magnetic compass requires no electrical power for its fundamental heading function. For exact ratings, dimensions, settings, capacities, materials and variant-specific limits, refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Typical vessel typesCOMMERCIAL VESSELS UNDER 150GRT
IMO CompliantYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

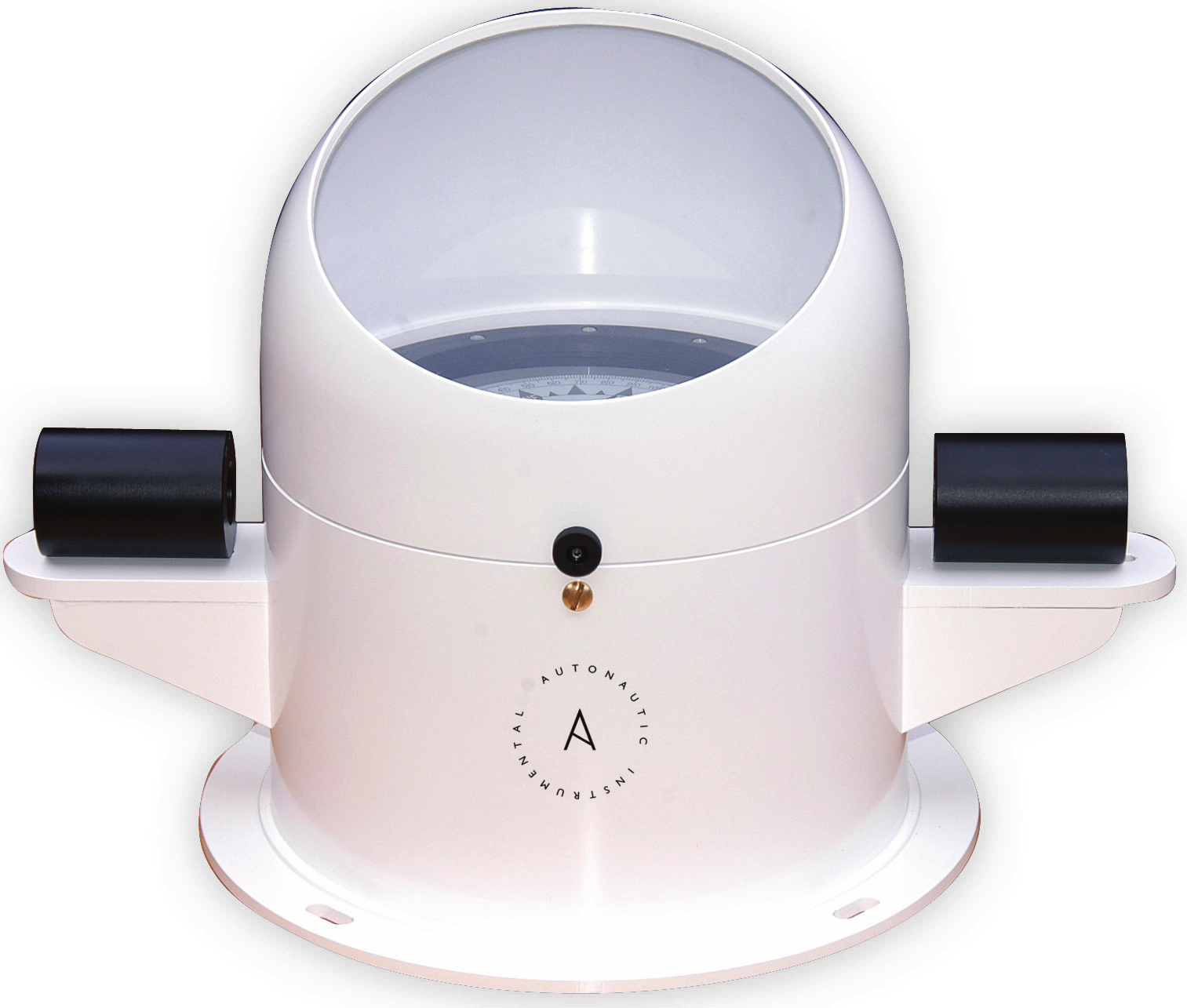

A magnetic compass outfit for commercial vessels, fishing vessels, and workboats. It is designed for aluminum or steel hulls.

Applications

  • COMMERCIAL VESSELS
  • FISHING VESSELS
  • WORKBOATS

Features

  • Reduced shipyard installation work.
  • Arrangements for NMEA0183 TMC sensor.
  • Class A 125 mm magnetic compass.
  • 1 degree graduation.
  • Low weight.
  • Reinforced ABS binnacle.
  • 24 dvc. lighting.
  • Quadrantal corrector for steel hull.

Options

  • Periscope. C20-00135
  • NMEA0183 TMC sensor. C20-00132
  • Spare 125 mm compass. C20-00131

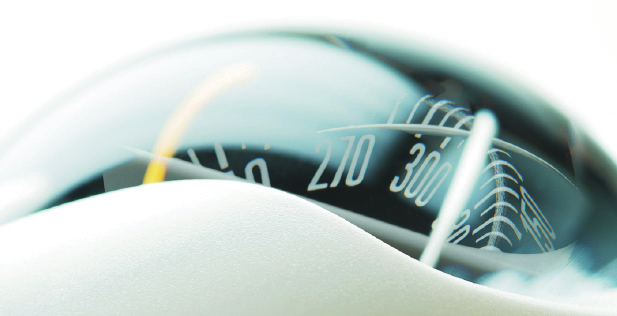

AUTONAUTIC C20-00128 – Photo (3ff51b800995_S1-1 S. 1)
Photo · 3ff51b800995_S1-1 · S. 1
AUTONAUTIC C20-00128 – Photo (3ff51b800995_S1-1 S. 1)
Photo · 3ff51b800995_S1-1 · S. 1
AUTONAUTIC C20-00128 – Photo (3ff51b800995_S1-1 S. 1)
Photo · 3ff51b800995_S1-1 · S. 1
AUTONAUTIC C20-00128 – Drawing (3ff51b800995_S1-1 S. 1)
Drawing · 3ff51b800995_S1-1 · S. 1

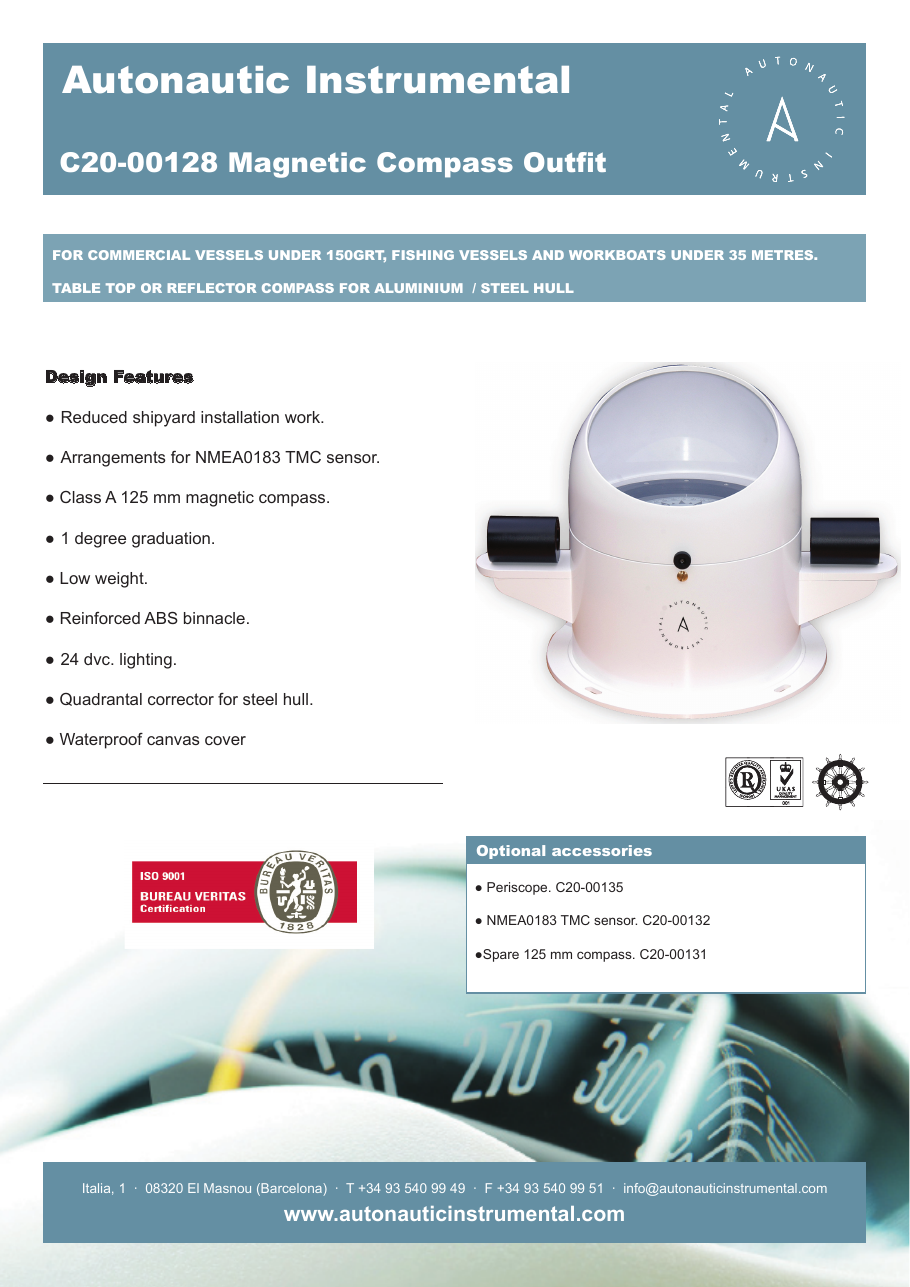

Source: AUTONAUTIC C20-00128 datasheet, p. 1
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Inspect bowl, liquid, card movement, lighting, mounting, corrector arrangements and surrounding magnetic environment. Compare compass headings against approved checks and maintain the vessel deviation record. Investigate equipment changes near the compass. Refer to statutory and manufacturer documentation for exact deviation and inspection criteria.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

Carry approved lighting components, seals or service items where supported and ensure access to compass-adjustment equipment and documentation through qualified service providers.
