Library› Navigation› Navigation & Bridge Equipment› Echo Sounder› Kongsberg Maritime EM 2040 MKII
Kongsberg Maritime

EM 2040 MKII

Echo Sounder · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified

Kongsberg Maritime EM 2040 MKII is a marine echo sounder. It is installed on the bridge and at the associated antenna, transducer, camera or sensor location, with data distributed to connected ship systems as required. Its purpose is to measure water depth beneath the vessel using an acoustic transducer and bridge display. The exact sensor set, recording functions, data interfaces, approval status and redundancy depend on the installed model. The exact model designation distinguishes sensing, recording or communication capability from neighboring bridge equipment; refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Output Sample Rateup to 60 kHz
Frequency range200 to 700 kHz
Max ping rate50 Hz
Depth Rating6000 metres and 50 metres versions available
Roll stabilised beams± 15°
Pitch stabilised beams± 10°
Yaw stabilised beams± 10°
IMO CompliantYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The EM 2040 MKII is a high-resolution multibeam echo sounder designed for detailed mapping and inspection in shallow waters.

Applications

  • High resolution mapping
  • Inspection applications
  • Shallow water surveys

Features

  • Wide band high resolution
  • 3-sector broadband
  • Multi Frequency Backscatter
  • Dual swath capability
  • High vessel speed capability

Options

  • Dual swath capability
  • Specialised dual transmitter and receiver setup

Standards

  • IHO-S44
  • LINZ specification

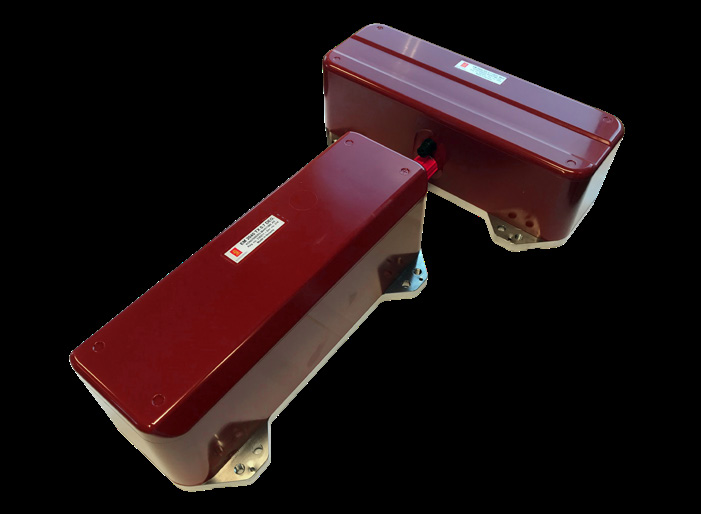

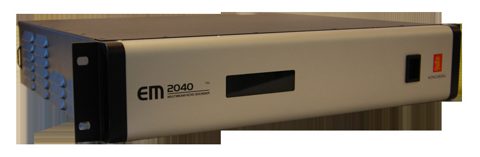

Kongsberg Maritime EM 2040 MKII – Photo (43e8e5caf7f2_S1-2 S. 2)
Photo · 43e8e5caf7f2_S1-2 · S. 2
Kongsberg Maritime EM 2040 MKII – Photo (43e8e5caf7f2_S1-2 S. 2)
Photo · 43e8e5caf7f2_S1-2 · S. 2
Kongsberg Maritime EM 2040 MKII – Photo (43e8e5caf7f2_S1-2 S. 2)
Photo · 43e8e5caf7f2_S1-2 · S. 2
Kongsberg Maritime EM 2040 MKII – Photo (43e8e5caf7f2_S1-2 S. 2)
Photo · 43e8e5caf7f2_S1-2 · S. 2

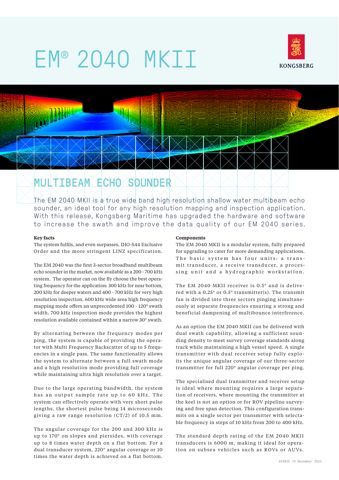

Kongsberg Maritime EM 2040 MKII – Drawing (43e8e5caf7f2_S1-2 S. 1)
Drawing · 43e8e5caf7f2_S1-2 · S. 1

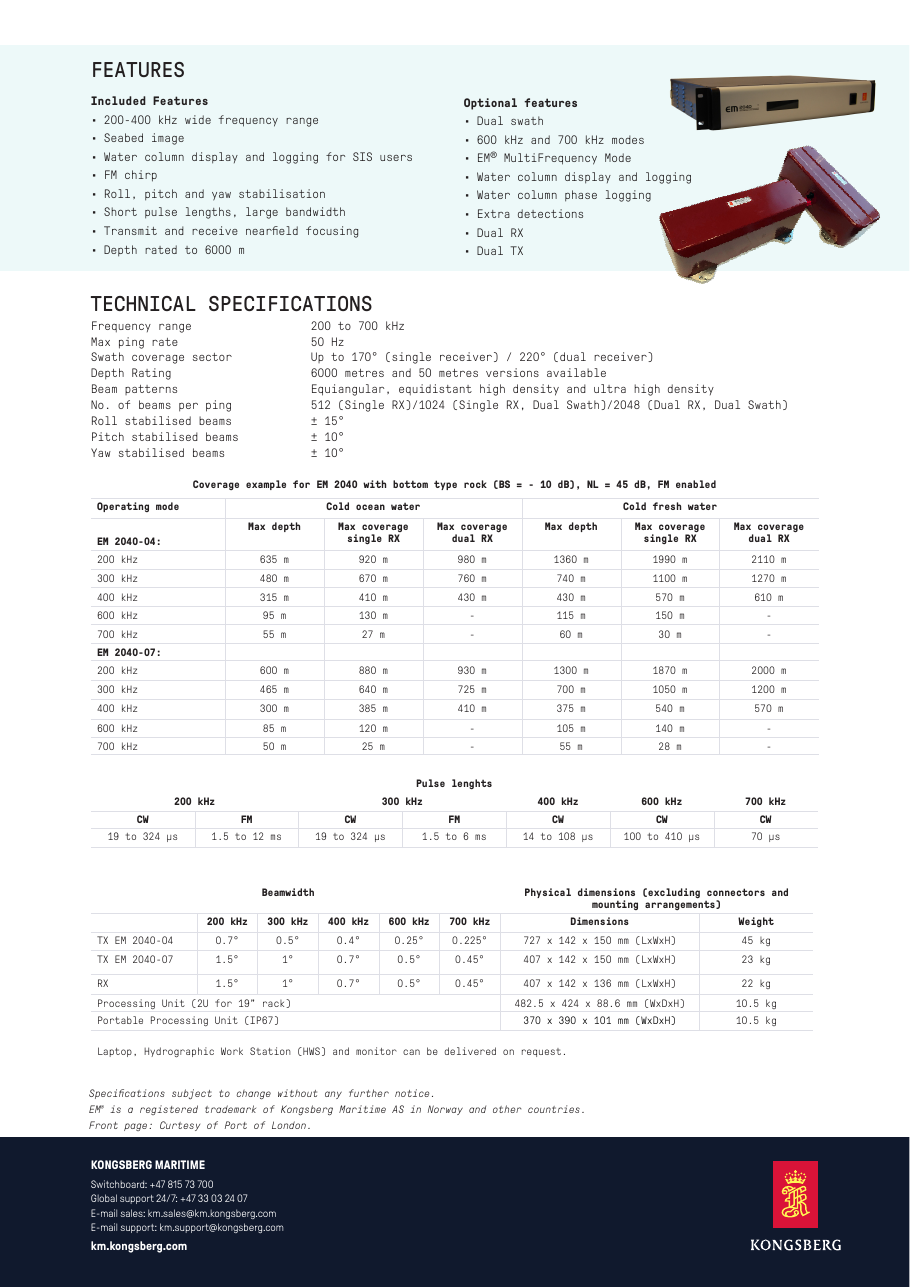

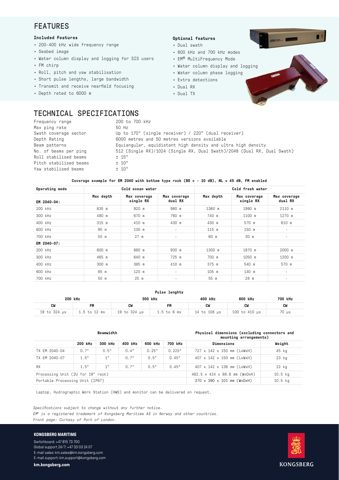

Kongsberg Maritime EM 2040 MKII – Drawing (43e8e5caf7f2_S1-2 S. 2)
Drawing · 43e8e5caf7f2_S1-2 · S. 2
Source: Kongsberg Maritime EM 2040 MKII datasheet, p. 1
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Inspect sensors, antennas, transducers, cameras, cabling, power supplies and network interfaces applicable to the installed equipment. Compare displayed information with independent references where possible and investigate recurring alarms or missing channels. Verify required outputs to other bridge systems and preserve configuration before approved software or hardware maintenance. Clean exposed sensors and optical surfaces without damaging coatings or seals. Check backup power or recording arrangements where applicable. Refer to the manufacturer documentation for the exact figure for test, calibration, update and recovery procedures.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

Keep fuses, selected power-supply and interface modules, cables or connectors, storage media where applicable and manufacturer-recommended sensor or electronic spares. Replacement core units must remain compatible with the approved bridge installation. Preserve configuration and recorded setup data.
