Library› Navigation› GMDSS› Inmarsat Terminal› Intellian v60Ka
Intellian

v60Ka

Inmarsat Terminal · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified

Intellian v60Ka is a shipboard satellite communications terminal. It is normally installed with antenna equipment above deck and indoor modem, control or communication units connected to bridge or vessel networks. Its primary purpose is to provide long-range satellite voice, data, safety or operational communications according to the installed service. Compared with terrestrial VHF or MF/HF radio, satellite communication depends on terminal registration, antenna view of the satellite, modem configuration and network service availability. For exact ratings, dimensions, settings, materials, connection details, and variant-specific limits, refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Memory512MB or higher
Video Memory128MB or higher
FrameworkMicrosoft.Net Framework 3.5 Service Pack 1 or higher
Radome Height103cm / 40.5"
Radome Diameter90cm / 35.5"
Reflector Diameter65cm / 25.6"
WeightApprox. 60kg / 132lbs
Cross-level RangeUp to ±37°
Stabilization Accuracy0.2° max in presence of specified ship motions
Power Requirement100~240V AC, 50~60Hz, 3A
TX Frequency29.00~30GHz Ka-band
TX Gain43.75 dBi @ 29.5GHz (with Radome)
RX Frequency19.2~20.2GHz Ka-band
RX Gain40 dBi @ 19.7GHz (with Radome)
G/t> 15 dB/K (min.)
LnbKa-band LNB (L.O. 18.25GHz)
Diameter65cm
Buc5W Ka-band BUC
TypeVSAT
StabilizedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Intellian v60Ka is a VSAT antenna system that allows users to easily set up and control the antenna using a personal computer.Source: Intellian v60Ka datasheet, p. 58

Applications

  • Passengers
  • Shore based operations

Features

  • Auto Beam Switching
  • Built-In Spectrum Analyzer
  • Remote Firmware Upgrading
  • Log File Retrieval & Analysis
  • Instant Fault Finding Capability
  • Intellian LAN
  • Integrated Monitoring & Control

Options

  • Quick-Deploy Packaging
  • Intellian’s Aptus Graphical User Interface

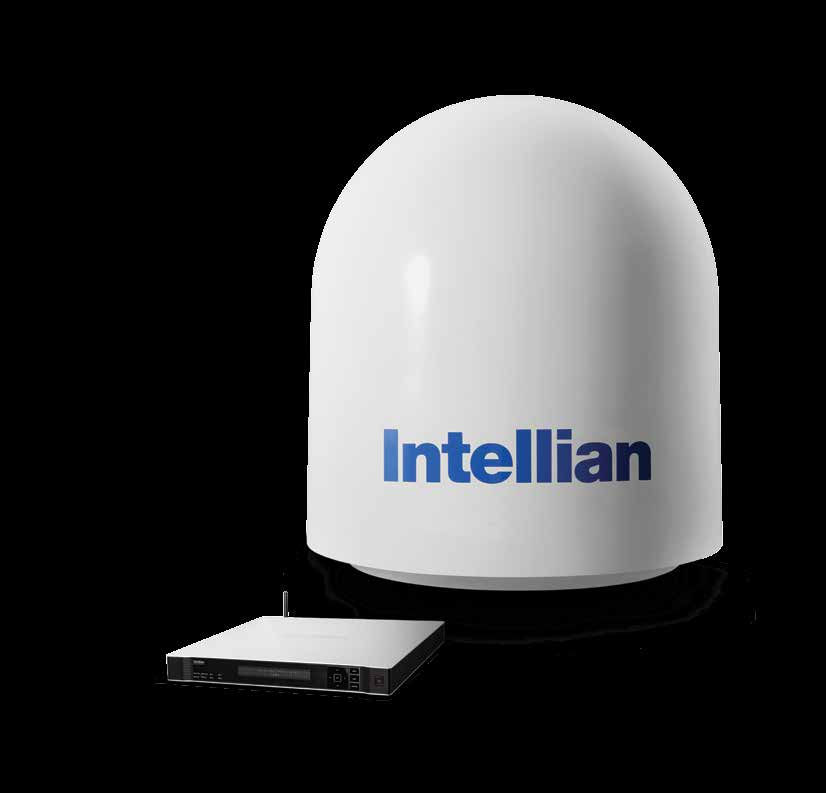

Intellian v60Ka – Photo (71888b0e5247_S1-1 S. 1)
Photo · 71888b0e5247_S1-1 · S. 1

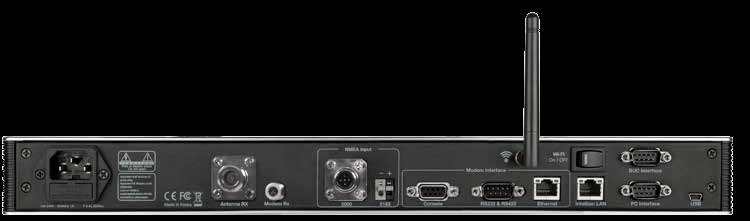

Intellian v60Ka – Photo (d816c3222c0d_S1-2 S. 2)
Photo · d816c3222c0d_S1-2 · S. 2
Intellian v60Ka – Photo (6f264a1085f1_S1-1 S. 1)
Photo · 6f264a1085f1_S1-1 · S. 1
Intellian v60Ka – Drawing (71888b0e5247_S1-1 S. 1)
Drawing · 71888b0e5247_S1-1 · S. 1
Intellian v60Ka – Drawing (d816c3222c0d_S1-2 S. 2)
Drawing · d816c3222c0d_S1-2 · S. 2
Intellian v60Ka – Drawing (6f264a1085f1_S1-1 S. 1)
Drawing · 6f264a1085f1_S1-1 · S. 1

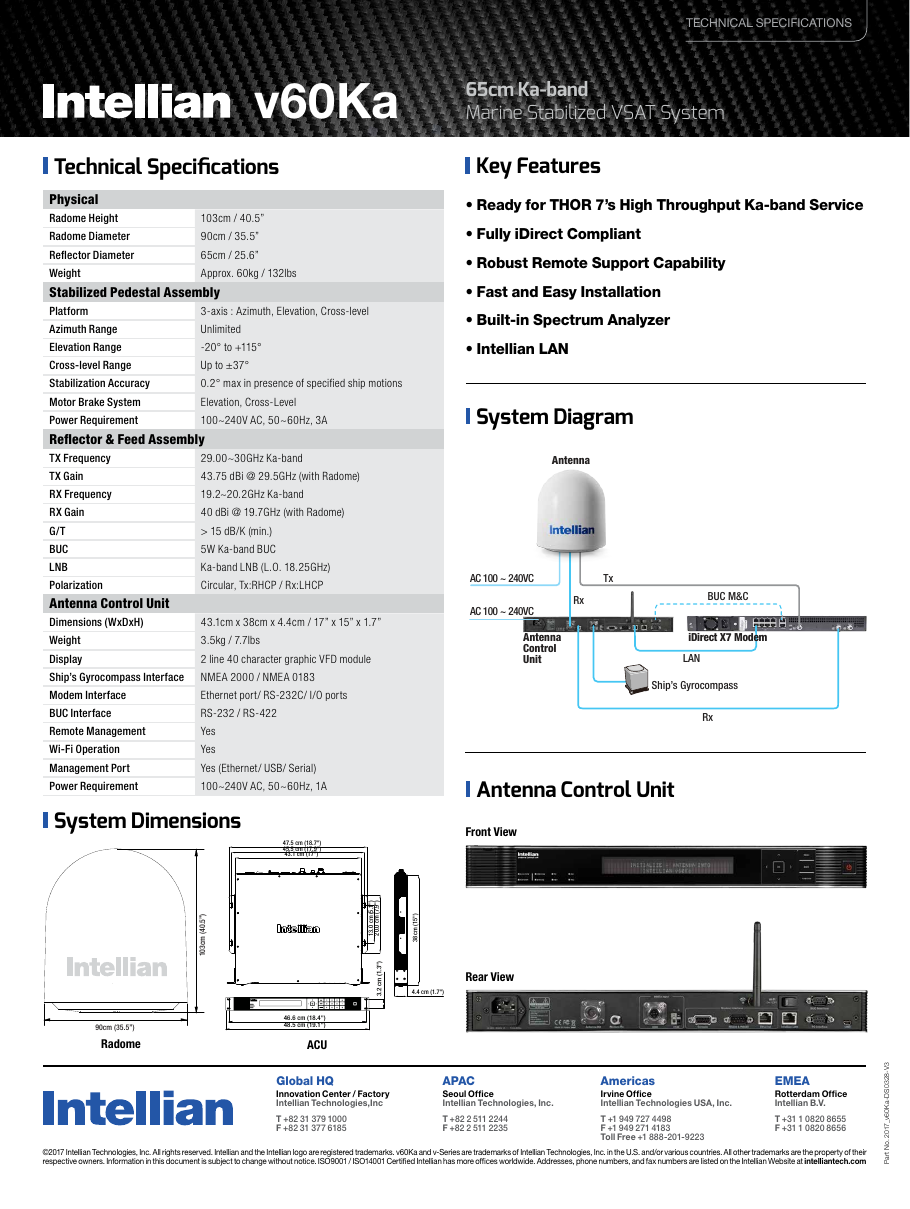

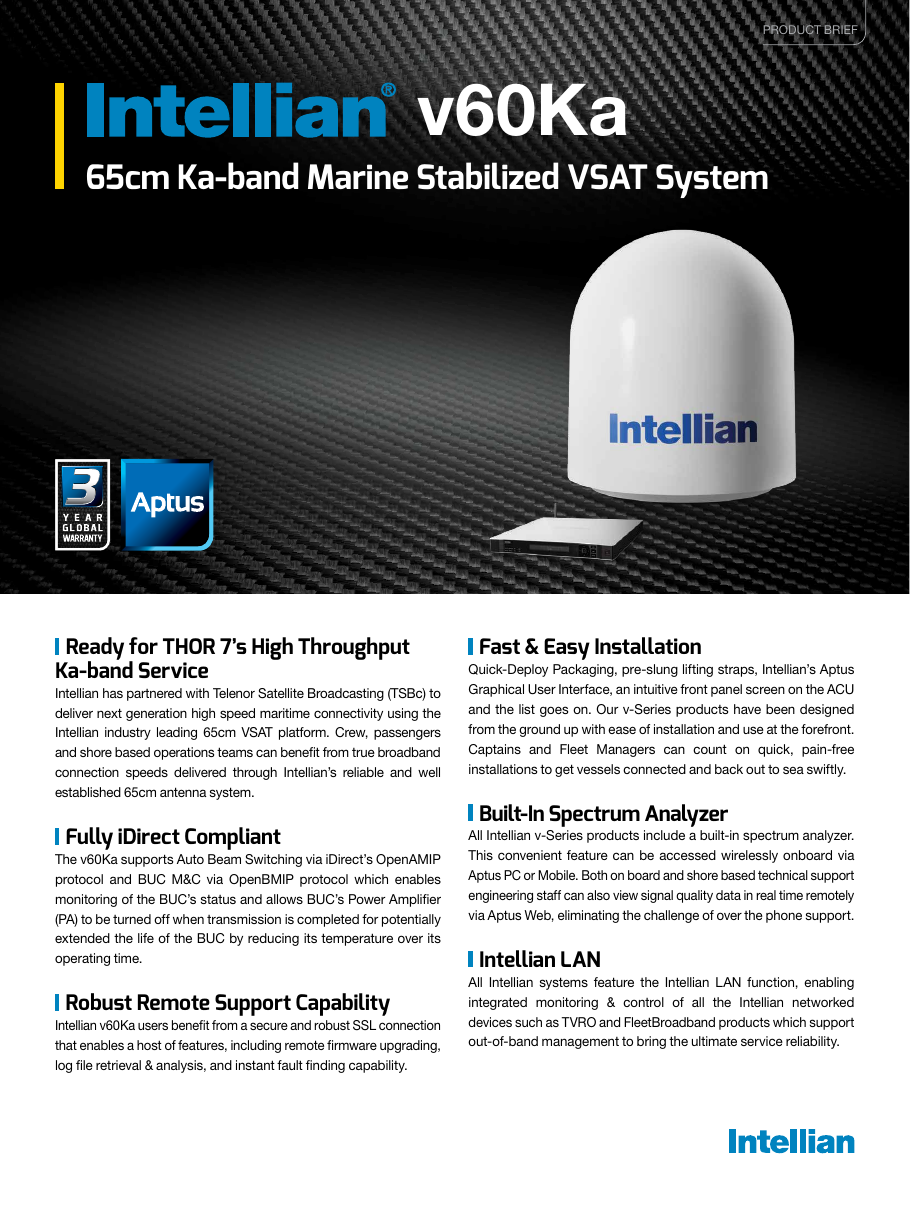

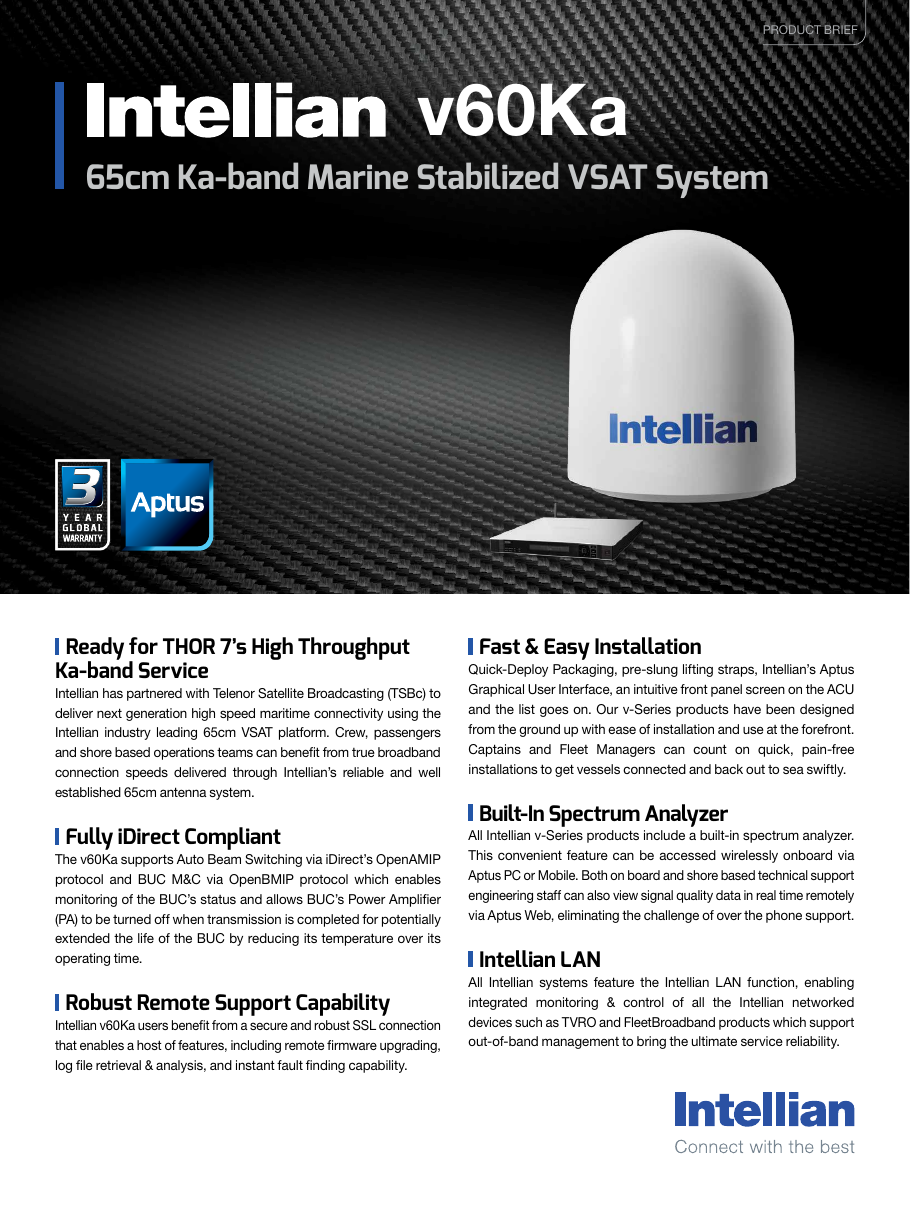

Source: Intellian v60Ka datasheet, p. 1
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Inspect antenna or radome, mounting, cabling, indoor units, power supply and network interfaces. Review signal-quality and terminal logs for recurring dropouts. Confirm vessel identity, service configuration and emergency functions where applicable. Antenna alignment, software and network settings should only be changed using approved documentation.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

Carry fuses, power supplies where supported, network and RF cables, connectors, approved modem or terminal modules where vessel policy requires them and backed-up configuration information.
