Library› Navigation› GMDSS› Inmarsat Terminal› Intellian GX100NX
Intellian

GX100NX

Inmarsat Terminal · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified

Intellian GX100NX is a shipboard satellite communications terminal. It is normally installed with antenna equipment above deck and indoor modem, control or communication units connected to bridge or vessel networks. Its primary purpose is to provide long-range satellite voice, data, safety or operational communications according to the installed service. Compared with terrestrial VHF or MF/HF radio, satellite communication depends on terminal registration, antenna view of the satellite, modem configuration and network service availability. For exact ratings, dimensions, settings, materials, connection details, and variant-specific limits, refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Diameter105cm
StabilizedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

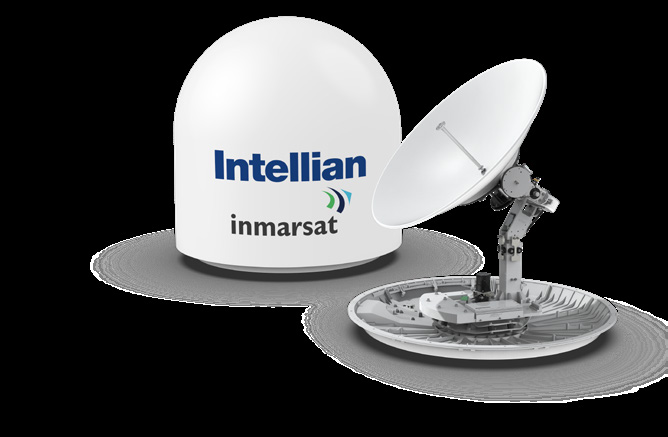

The Intellian GX100NX is a maritime VSAT antenna system designed for reliable satellite communication.

Applications

  • maritime communication
  • vessel tracking

Features

  • GPS position setting
  • target satellite selection
  • installation wizard

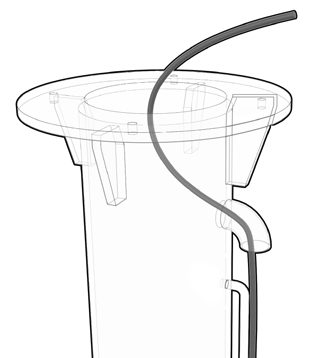

Intellian GX100NX – Photo (2de8f5b2c31e_S1-1 S. 1)
Photo · 2de8f5b2c31e_S1-1 · S. 1

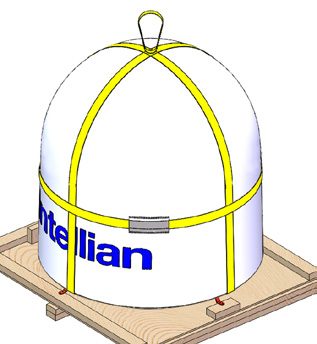

Intellian GX100NX – Photo (2de8f5b2c31e_S1-1 S. 1)
Photo · 2de8f5b2c31e_S1-1 · S. 1

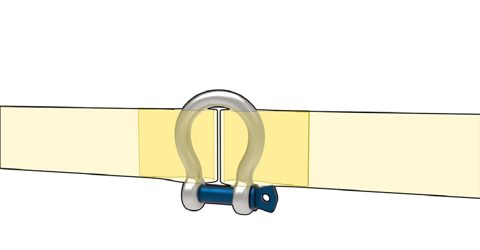

Intellian GX100NX – Photo (2de8f5b2c31e_S1-1 S. 1)
Photo · 2de8f5b2c31e_S1-1 · S. 1
Intellian GX100NX – Photo (2de8f5b2c31e_S1-1 S. 1)
Photo · 2de8f5b2c31e_S1-1 · S. 1
Intellian GX100NX – Photo (2de8f5b2c31e_S1-1 S. 1)
Photo · 2de8f5b2c31e_S1-1 · S. 1
Intellian GX100NX – Photo (2de8f5b2c31e_S1-1 S. 1)
Photo · 2de8f5b2c31e_S1-1 · S. 1
Intellian GX100NX – Photo (2de8f5b2c31e_S1-1 S. 1)
Photo · 2de8f5b2c31e_S1-1 · S. 1
Intellian GX100NX – Drawing (2de8f5b2c31e_S1-1 S. 1)
Drawing · 2de8f5b2c31e_S1-1 · S. 1

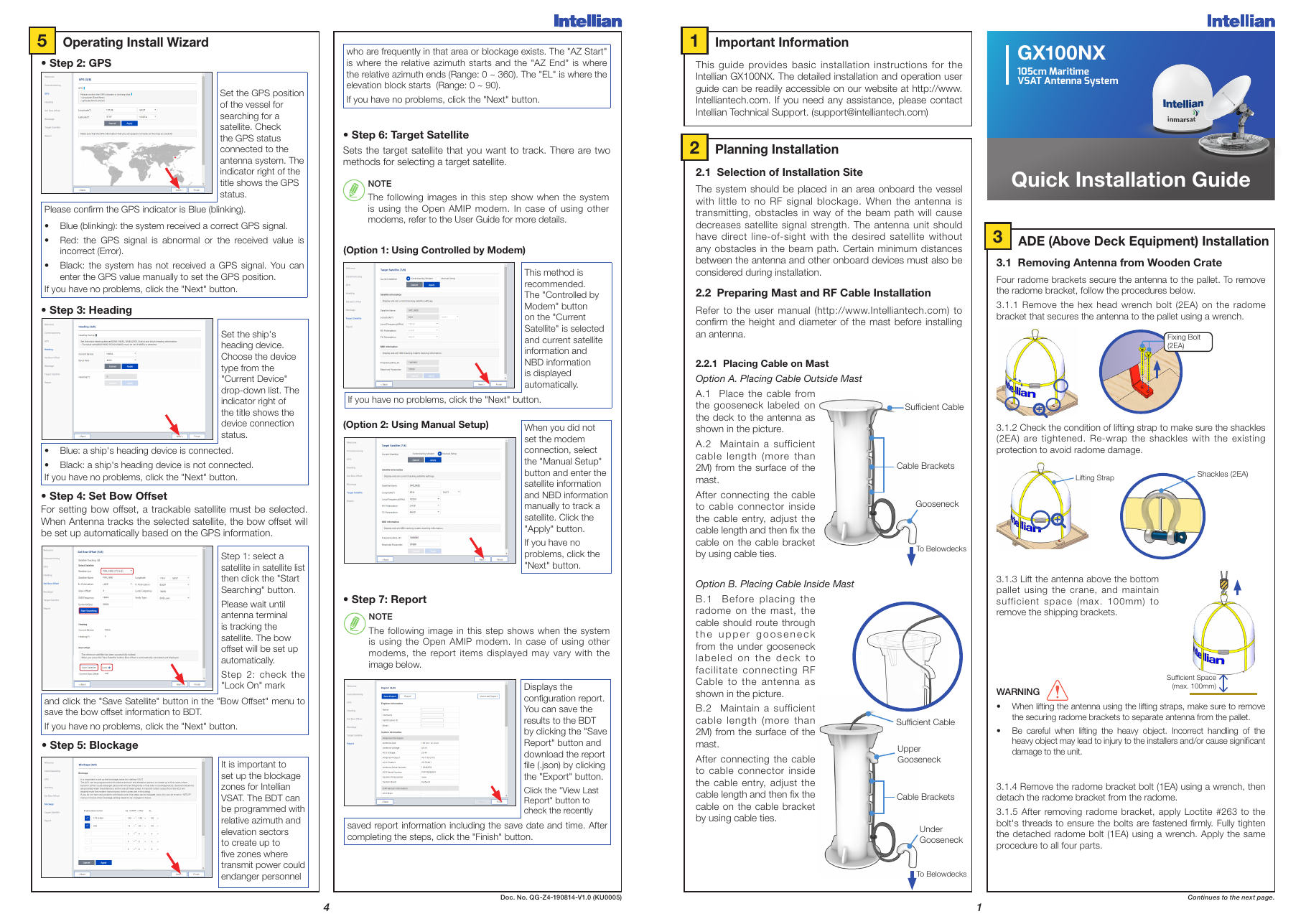

Source: Intellian GX100NX datasheet, p. 1
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Inspect antenna or radome, mounting, cabling, indoor units, power supply and network interfaces. Review signal-quality and terminal logs for recurring dropouts. Confirm vessel identity, service configuration and emergency functions where applicable. Antenna alignment, software and network settings should only be changed using approved documentation.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

Carry fuses, power supplies where supported, network and RF cables, connectors, approved modem or terminal modules where vessel policy requires them and backed-up configuration information.
