W14

Main Engine 4-Stroke · Main Engines (4-Stroke)

Technical data from manufacturer or class sources · not yet verified by a person​‌​​‌​​​‌​⁠​​‌‌‍⁠⁠‌​
140 mmBore
185 mmStroke

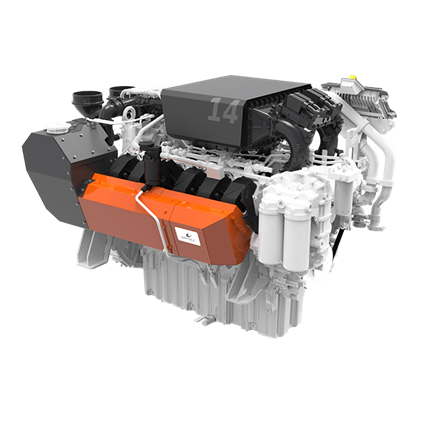

The Wärtsilä W14 is a medium‑speed, four‑stroke trunk‑piston main engine delivering up to 1500 rpm, designed for compact power density and operation on marine gas oil (MGO) or marine diesel oil (MDO).

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Cylinder power610 kW/cyl (diesel)
Mean effective pressure (BMEP)30 bar
SFOC (diesel)167.7 g/kWh (optimal point)
Weight (8V31)~57.1 tonnes (dry, diesel)
Weight (16V31)~89–92.5 tonnes (dry, diesel)
Piston speed10.75 m/s
TurbochargingTwo-stage turbocharging with intercooling
Fuel injectionCommon rail direct injection
Valve layout2 inlet, 2 exhaust valves per cylinder
Speed (rpm)1500
ConfigurationL
Fuel TypeMGO/MDO
TechnologyHigh-Speed Trunk Piston
