Schwer Fittings GmbH

SR-500Z

Pipe Coupling · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified

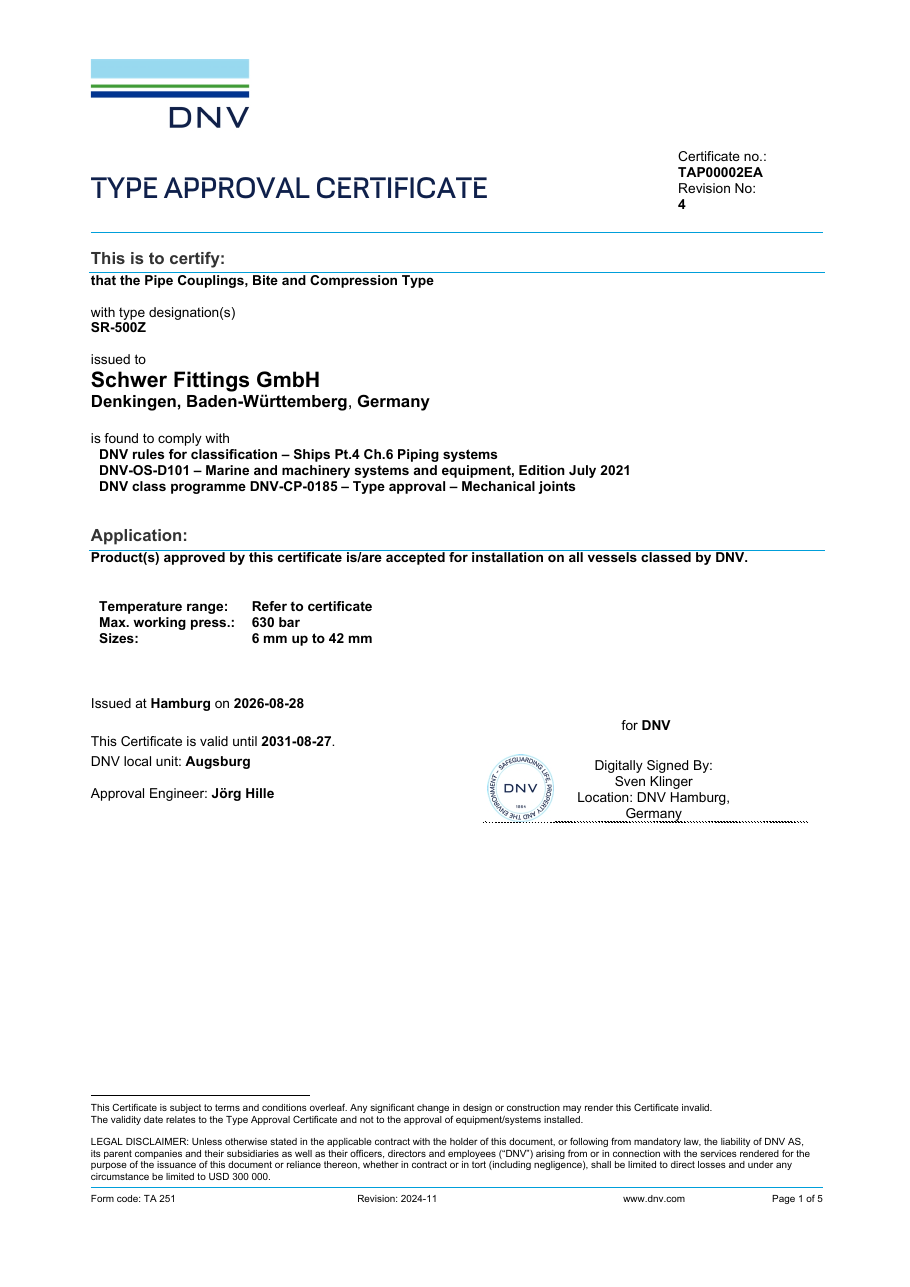

SR-500Z by Schwer Fittings GmbH. DNV TA certificate TAP00002EA.

Specifications

Technical data.reference — unverified

Max. working press.:630 bar
Sizes:6 mm up to 42 mm
CertificationsTAP00002EA
Certificate no.TAP00002EA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Pipe couplings of the SR-500Z type are bite and compression type couplings.Source: Schwer Fittings GmbH SR-500Z datasheet, p. 1

Applications

  • Pipe Classes I, II and III

Features

  • Type approved
  • Suitable for various media and service conditions
  • Resistant to corrosion, erosion, oxidation

Standards

  • DIN EN ISO 8434-1:11/2018
Source: Schwer Fittings GmbH SR-500Z datasheet, p. 2
Schwer Fittings GmbH SR-500Z – Drawing (a6bbae7cfb49_S1-3 S. 1)
Drawing · a6bbae7cfb49_S1-3 · S. 1

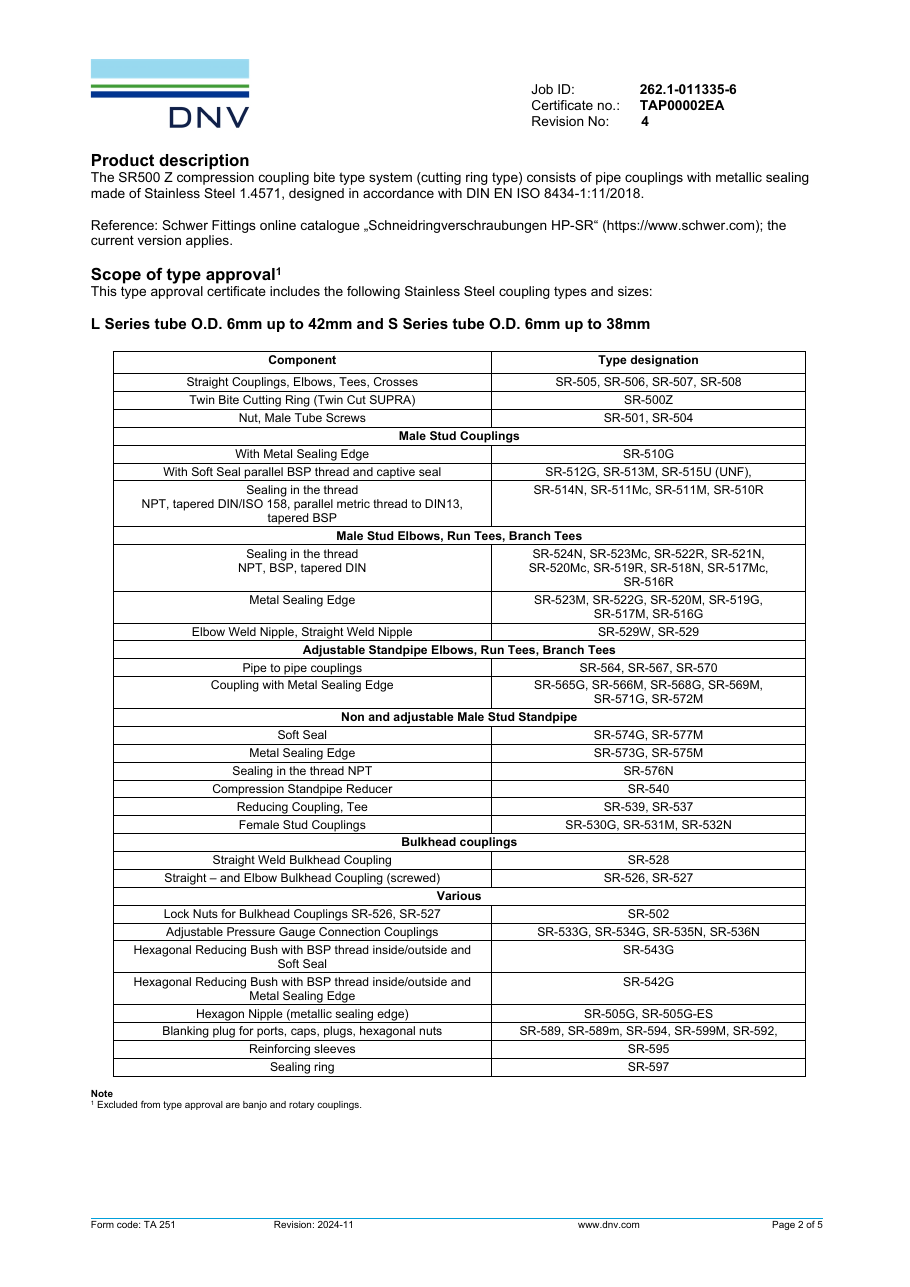

Schwer Fittings GmbH SR-500Z – Drawing (a6bbae7cfb49_S1-3 S. 2)
Drawing · a6bbae7cfb49_S1-3 · S. 2

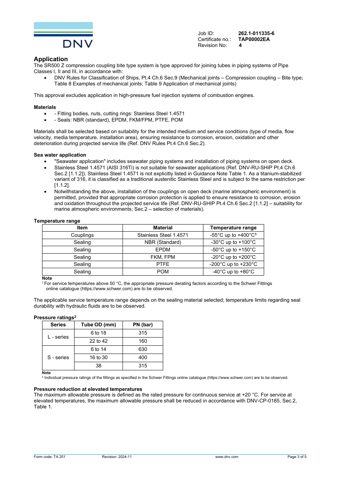

Schwer Fittings GmbH SR-500Z – Drawing (a6bbae7cfb49_S1-3 S. 3)
Drawing · a6bbae7cfb49_S1-3 · S. 3
Source: Schwer Fittings GmbH SR-500Z datasheet, p. 3
