VEGAPULS 6X

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified​​⁠‌⁠​‌‍​​​​‍​​‌⁠⁠⁠​

VEGAPULS 6X by VEGA Grieshaber KG. DNV TA certificate TAA0000367.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring range up to120 m (393.7 ft)
Deviation, depending on≤ 1 mm
Beam angle, depending on3°
Measuring frequencyW-band (80 GHz technology)
Process pressure-1 … 25 bar (-100 … 2500 kPa/-14.5 … 362.6 psig)
Process temperature-196 … +250 °C (-321 … +482 °F)
Operating voltage12 … 35 V DC
Output signal4 … 20 mA/HART
Bluetooth standardBluetooth 5.0
Effective range typ.25 m (82 ft) 1)
Protection acc. toIP66/IP67
IEC 60529IP66/IP68 (0.2 bar)
Protection acc. to NEMAType 4X
Frequency80 GHz
125 mm4.92 in
2,5 mm0.10 in
20 mm0.79 in
24 mm0.94 in
89 mm3.50 in
300 mm11.81 in
170 mm6.69 in
4 mm / 8mm0.16 / 0.32 in
Ø45 mm1.77 in
19 mm0.75 in
Ø102 mm4.02 in
Ø 40 mm40 mm
Ø 39,5 mm39,5 mm
Ø 51,6 mm51,6 mm
Ø 43,8 mm43,8 mm
Ø 45 mm45 mm
Ø 44 mm44 mm
Ø 64 mm64 mm
Ø 68,5 mm68,5 mm
Ø 67 mm67 mm
16,5 mm16,5 mm
203 mm203 mm
69,9 mm69,9 mm
72 mm72 mm
85 mm85 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

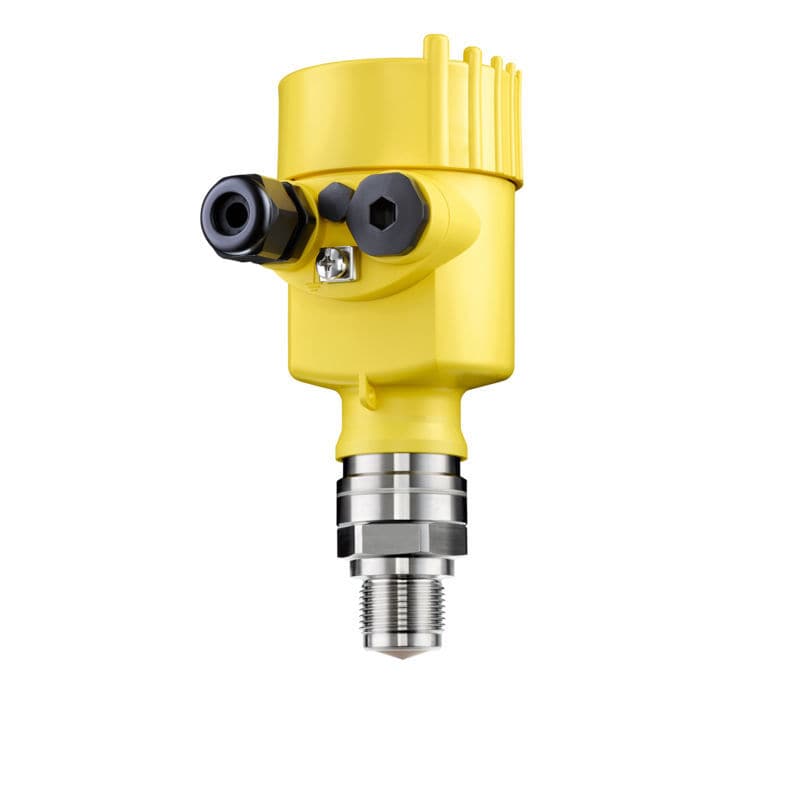

VEGAPULS 6X is a radar sensor for continuous level measurement of liquids and bulk solids, suitable for small tanks, high silos, and vessels with many installations.

Applications

  • small tanks
  • tight mounting spaces
  • vessels with installations
  • high silos
  • large bunkers
  • segmented vessels

Features

  • maintenance-free operation
  • high plant availability
  • exact measuring results independent of process conditions

Options

  • Profibus PA
  • Foundation Fieldbus
  • Modbus protocol
  • integrated overvoltage arrester
  • additional current output
  • integrated radio module PLISCMOBILE 81
