Library› Engine Room› Welding Consumables› General Welding Consumables› INE S.p.A. INETUB M71TG / M21
INE S.p.A.

INETUB M71TG / M21

General Welding Consumables · Welding Consumables

Class-certified type (DNV register) · technical data sheet not yet verified

INETUB M71TG / M21 by INE S.p.A. DNV TA certificate TAW00003KC.

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Copper-coated solid wire for welding carbon and C-Mn steels with tensile strength up to 510 MPa.

Applications

  • tanks
  • boilers
  • steel structural works
  • earthworks
  • construction works

Features

  • Suitable for single pass or multi-pass welding
  • To be used under the shield of Ar+CO2, Ar+O2 or CO2

Standards

  • AWS A 5.18: ER70S-6
  • AWS A 5.18M: ER48S-6
  • ASME SFA 5.18: ER70S-6
  • ASME SFA 5.18M: ER48S-6
  • EN ISO 14341-A: G 46 4 M21 3Si1
  • EN ISO 14341-A: G 42 2 C1 3Si1
  • EN ISO 14341-A: G 46 3 M14 3Si1
  • EN ISO 14175
INE S.p.A. INETUB M71TG / M21 – Photo (0148ce636ec0_S1-1 S. 1)
Photo · 0148ce636ec0_S1-1 · S. 1
INE S.p.A. INETUB M71TG / M21 – Photo (0148ce636ec0_S1-1 S. 1)
Photo · 0148ce636ec0_S1-1 · S. 1
INE S.p.A. INETUB M71TG / M21 – Drawing (0148ce636ec0_S1-1 S. 1)
Drawing · 0148ce636ec0_S1-1 · S. 1

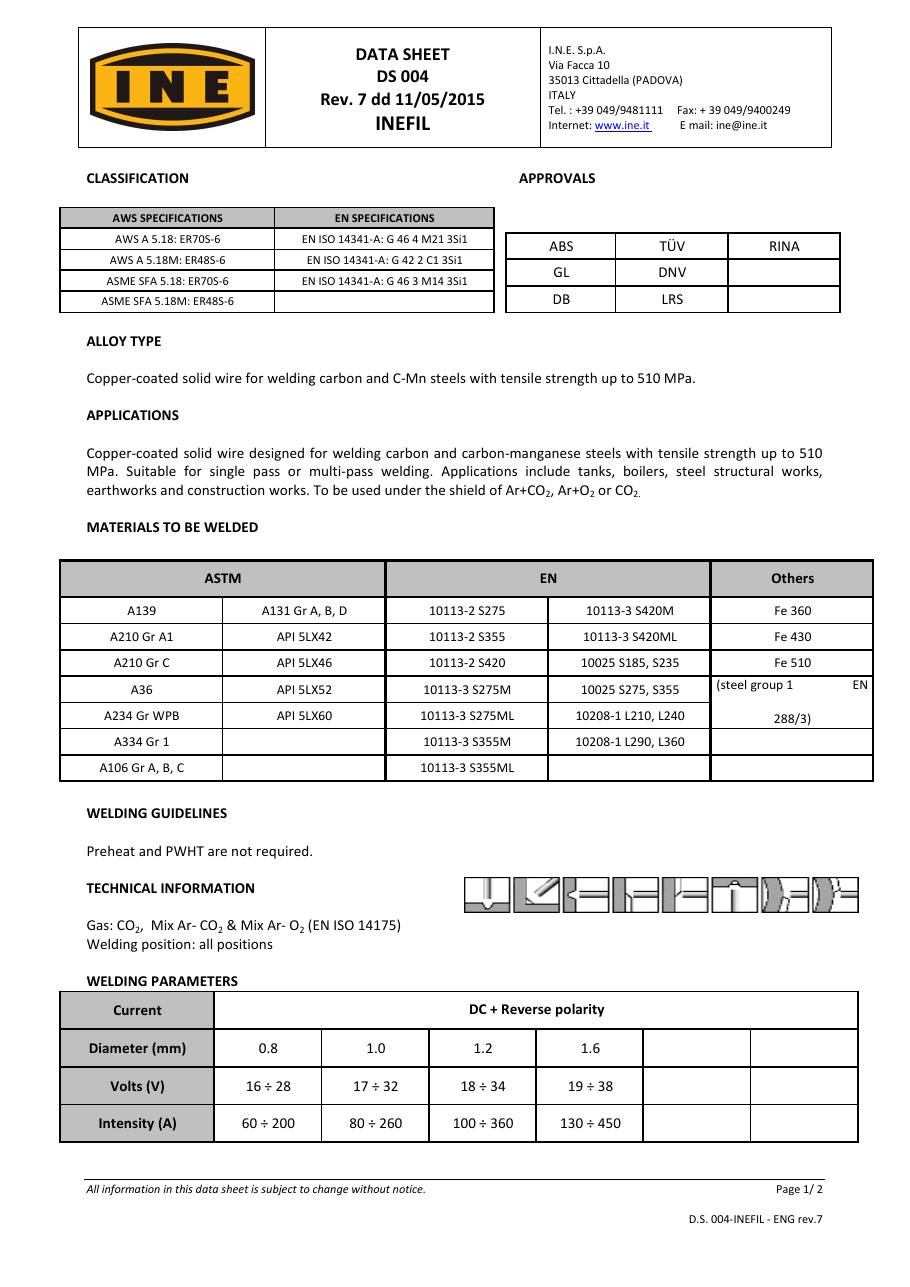

Source: M21 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAW00003KC
Open the certificate at DNV
