Library› Electrical› Electrical Components & Switchgear› Control Relay› E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300
E. Dold & Söhne GmbH & Co. KG

MK 9300N, MH 9300

Control Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

MK 9300N, MH 9300 by E. Dold & Söhne GmbH & Co. KG. DNV TA certificate TAA0000155.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight MK 9300N140 g
Weight MH 9300250 g
Measuring range voltage3 AC 24 ... 400 V
Current measuring rangeAC 100 mA ... 12 A
Degree of protection housingIP 40
Temperature range- 20... + 60°C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The VARIMETER PRO multifunction measuring relays monitor up to 9 parameters simultaneously, including voltage, current, frequency, and power.

Features

  • Min-, Max. value or window monitoring
  • Simultaneous monitoring of up to 9 different parameters
  • Simple configuration and fault diagnostic
  • Different fault indications
  • Large measuring range 3 AC 24 ... 690 V
  • Early detection of irregular states
  • Space and cost saving

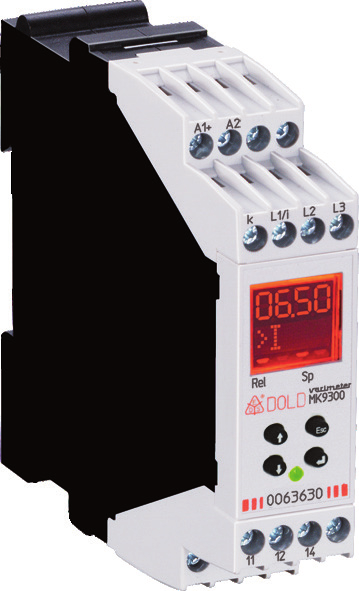

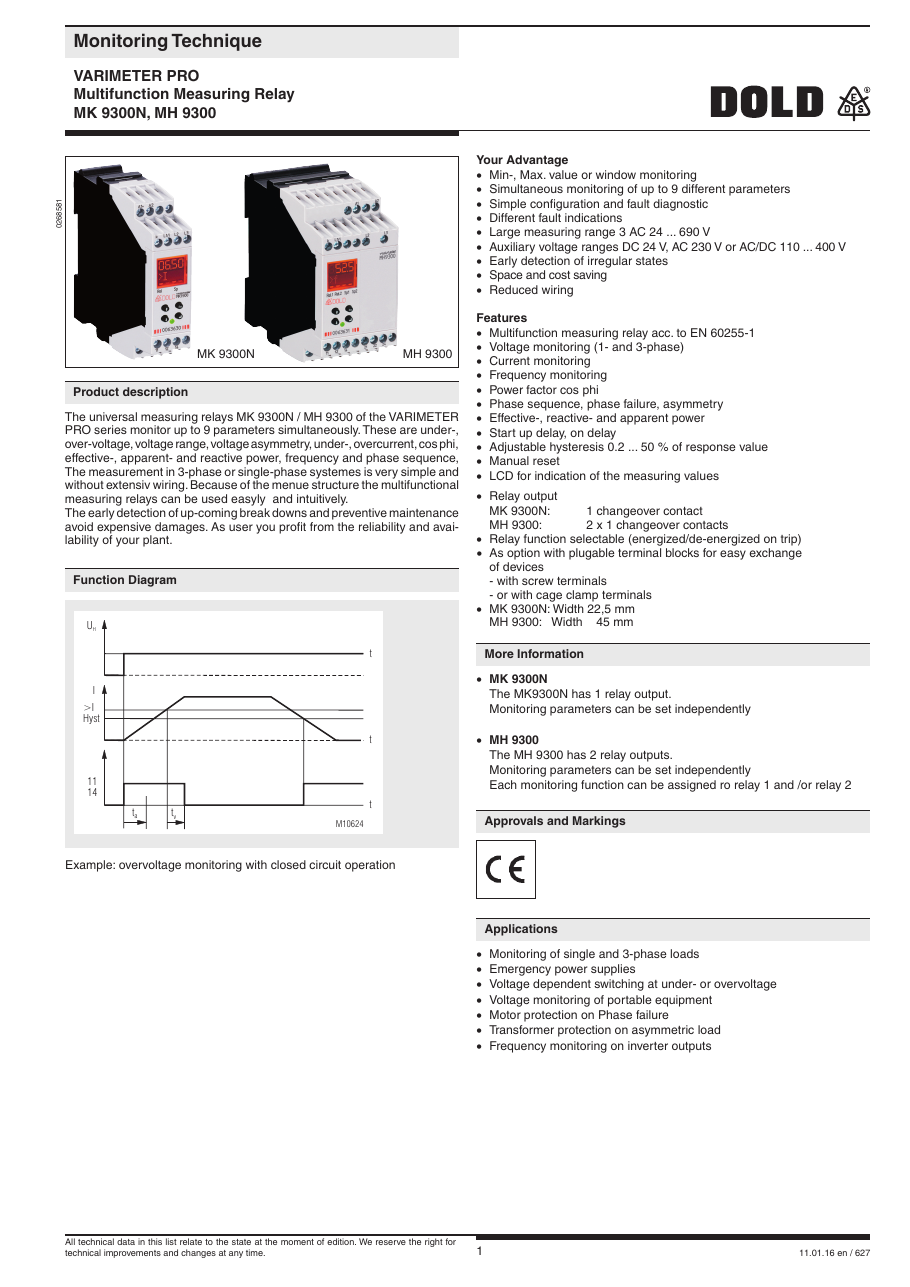

E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Photo (f5c011d0ce6a_S1-6 S. 1)
Photo · f5c011d0ce6a_S1-6 · S. 1

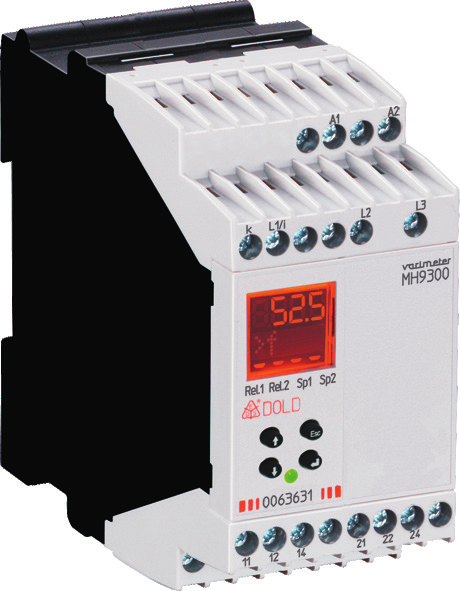

E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Photo (f5c011d0ce6a_S1-6 S. 1)
Photo · f5c011d0ce6a_S1-6 · S. 1
E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Photo (f5c011d0ce6a_S1-6 S. 1)
Photo · f5c011d0ce6a_S1-6 · S. 1
E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Photo (f5c011d0ce6a_S1-6 S. 1)
Photo · f5c011d0ce6a_S1-6 · S. 1

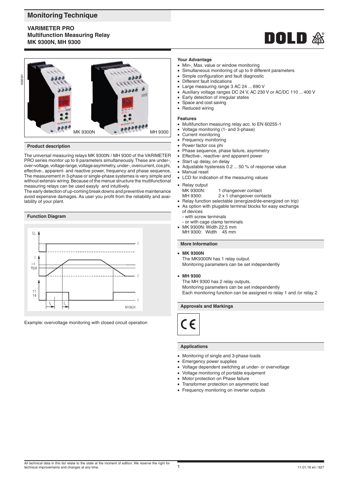

E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Drawing (f5c011d0ce6a_S1-6 S. 1)
Drawing · f5c011d0ce6a_S1-6 · S. 1

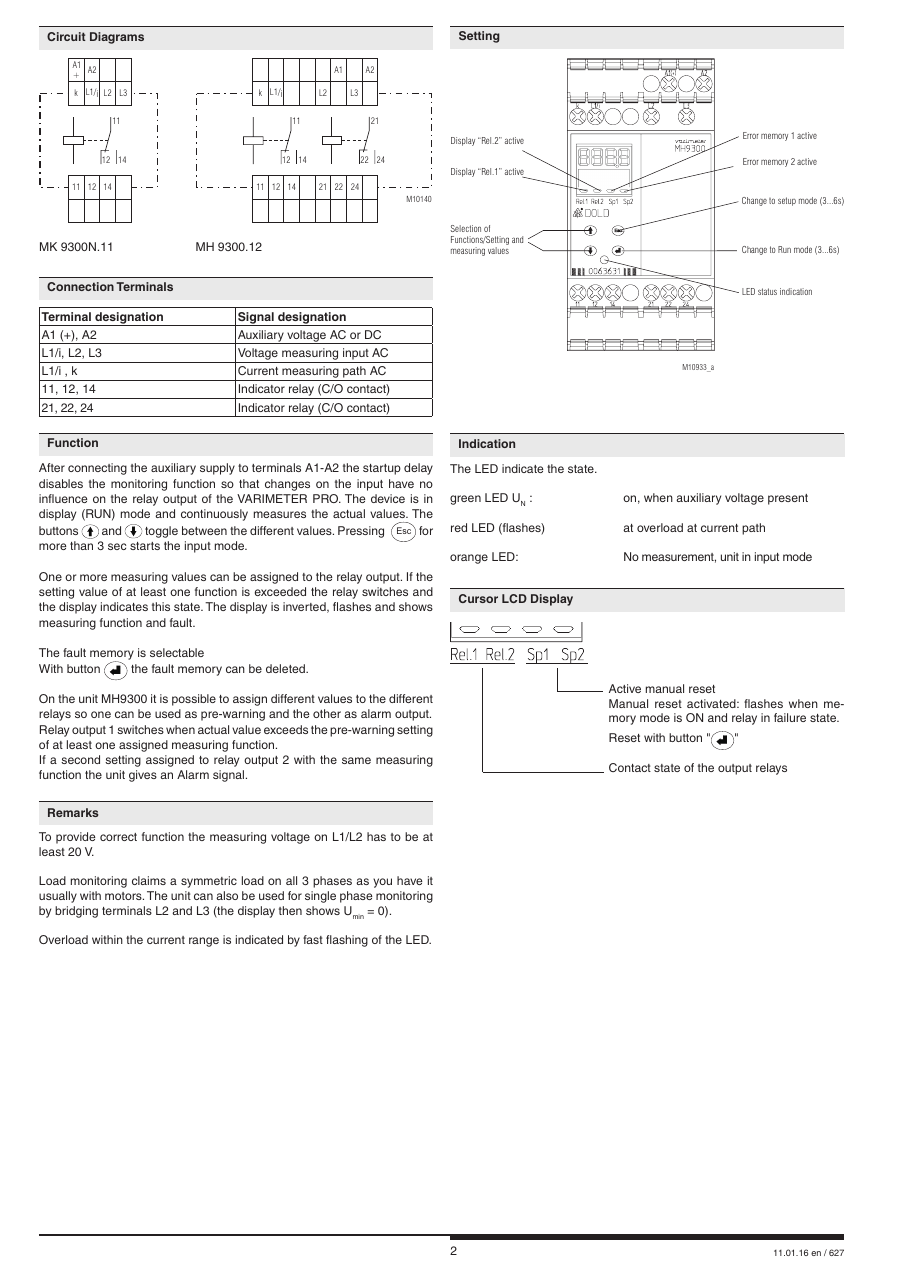

E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Drawing (f5c011d0ce6a_S1-6 S. 2)
Drawing · f5c011d0ce6a_S1-6 · S. 2

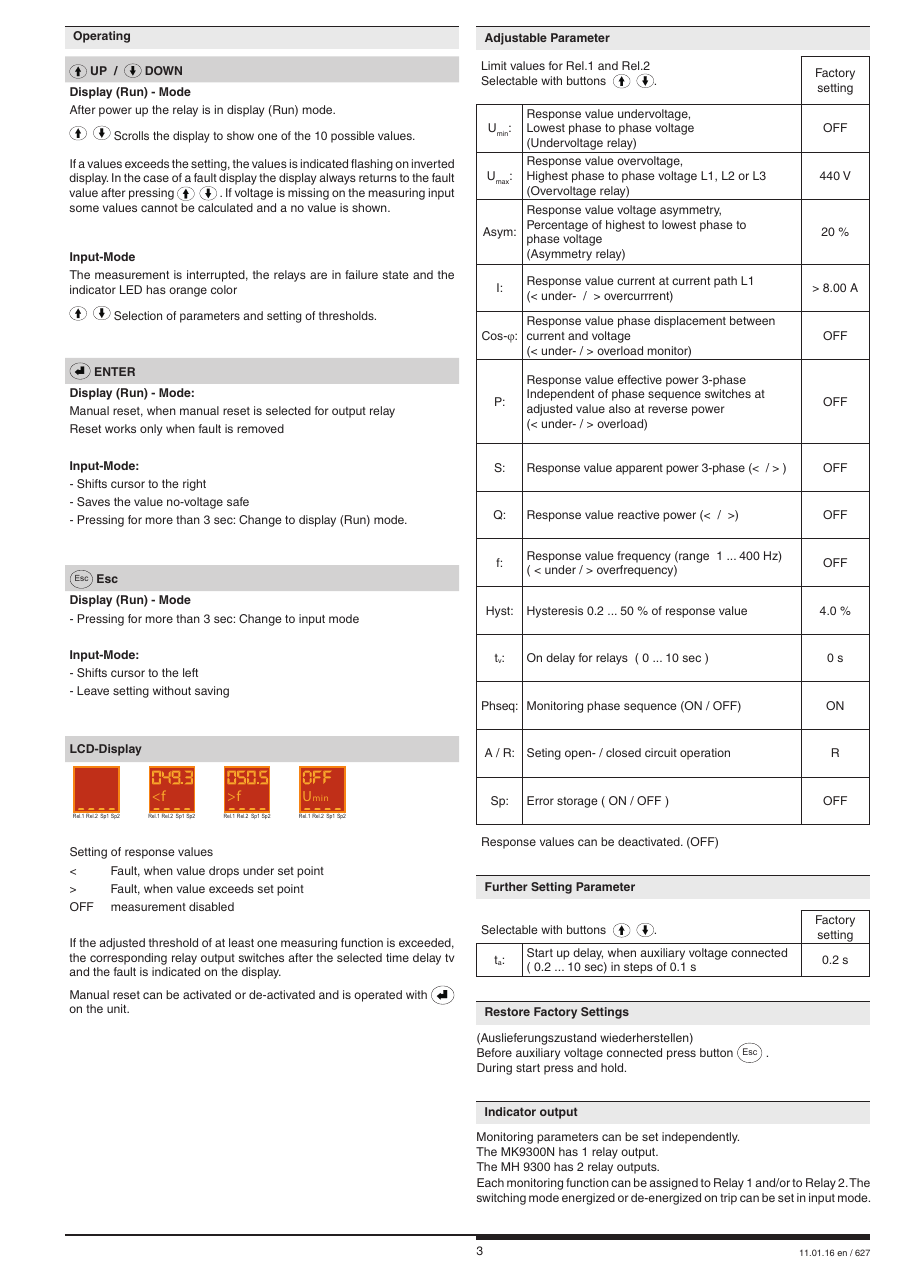

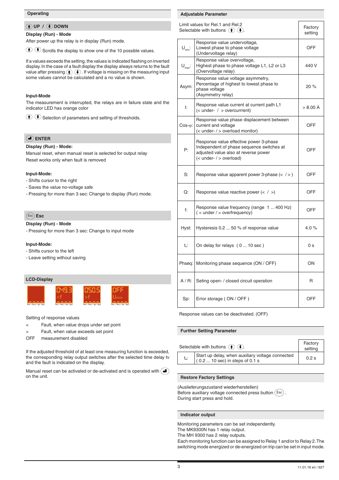

E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Drawing (f5c011d0ce6a_S1-6 S. 3)
Drawing · f5c011d0ce6a_S1-6 · S. 3

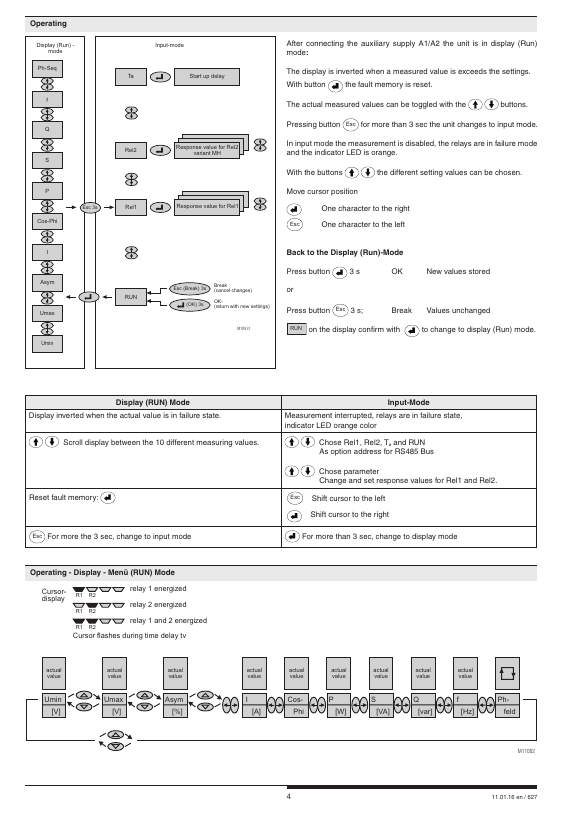

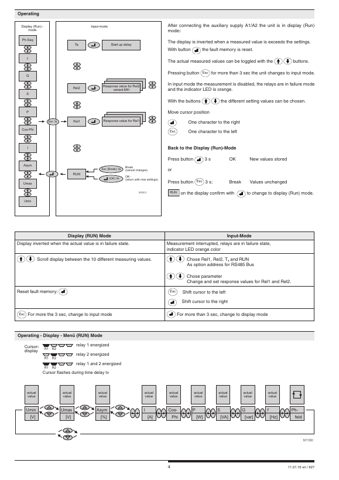

E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 – Page preview (f5c011d0ce6a_S1-6 S. 4)
Page preview · f5c011d0ce6a_S1-6 · S. 4
Source: E. Dold & Söhne GmbH & Co. KG MK 9300N, MH 9300 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAA0000155
Open the certificate at DNV
