Library› Electrical› Marine Cables & Wiring› General Marine Cables› TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV
TOP CABLE, S.A.

TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV

General Marine Cables · Marine Cables & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified

Under DNV SE Type Approval certificate TAE00002AF, TOP CABLE, S.A. of Spain is approved for TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV, issued on 2022-12-14 and valid until 2027-10-09. Electric power cables carry electrical energy between generators, switchboards and consumers. The register lists the product type as Electric Power Cable, in the category Electrical Equipment and Systems.

Application

Where it is used.

Electric power cables of this kind are typically installed on cable trays and in cable ducts to supply power to equipment and distribution boards throughout a vessel.

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Toxfree® Marine XZ1-K (AS) cable is a halogen-free safety cable. It does not emit toxic or corrosive gases in case of fire, protecting public health and electronic equipment.

Applications

  • public places
  • marine applications
Source: 1kV datasheet, p. 13

Features

  • Flame non-propagation according to IEC 60332-1
  • Fire non-propagation according to IEC 60332-3-22
  • Low smoke halogen free according to IEC 60754-1
  • Low corrosive gases emission according to IEC 60754-2
  • Minimum bending radius: Ø ≤ 25mm 4x cable diameter.
  • Minimum bending radius: Ø > 25mm 6x cable diameter.
  • Impact resistance: AG3 high severity.
Source: 1kV datasheet, p. 12

Standards

  • IEC 60092-353
  • IEC 60092-360
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1
  • IEC 60754-2
  • IEC 61034
  • EN 50618

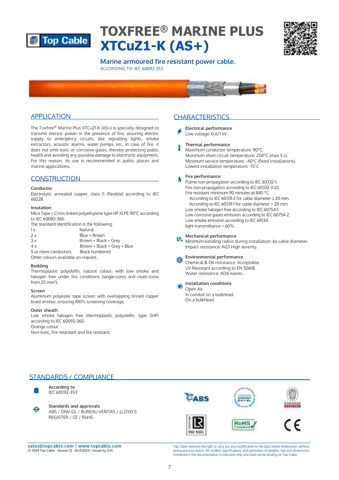

TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV – Drawing (86d1b00c3b5e_S4-13 S. 4)
Drawing · 86d1b00c3b5e_S4-13 · S. 4
TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV – Drawing (86d1b00c3b5e_S4-13 S. 5)
Drawing · 86d1b00c3b5e_S4-13 · S. 5
TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV – Drawing (86d1b00c3b5e_S4-13 S. 6)
Drawing · 86d1b00c3b5e_S4-13 · S. 6

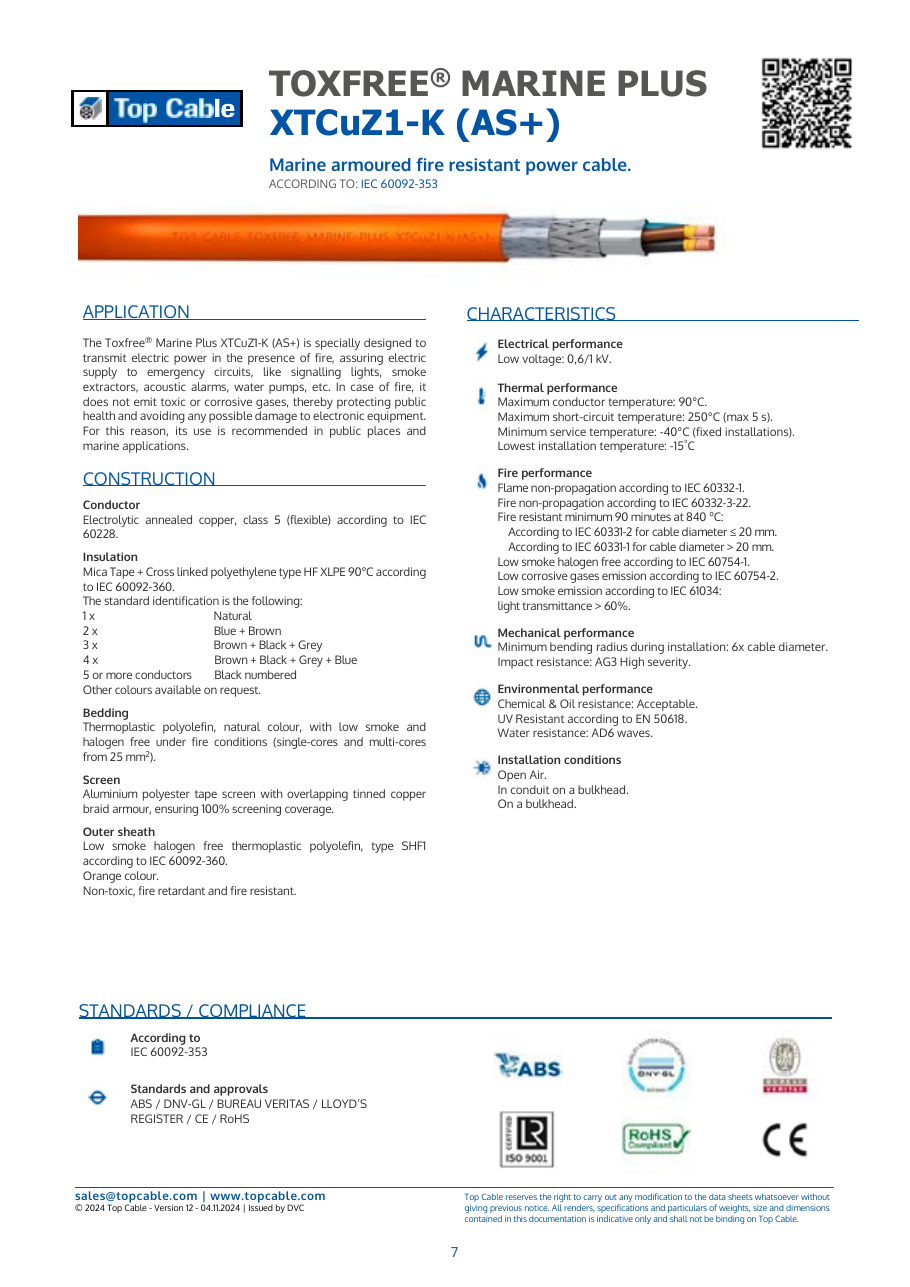

TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV – Page preview (86d1b00c3b5e_S4-13 S. 7)
Page preview · 86d1b00c3b5e_S4-13 · S. 7
TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV – Page preview (86d1b00c3b5e_S4-13 S. 8)
Page preview · 86d1b00c3b5e_S4-13 · S. 8
TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV – Page preview (86d1b00c3b5e_S4-13 S. 9)
Page preview · 86d1b00c3b5e_S4-13 · S. 9
TOP CABLE, S.A. TOXFREE MARINE PLUS XTCuZ1-K (AS+) 0,6/1kV – Page preview (86d1b00c3b5e_S4-13 S. 10)
Page preview · 86d1b00c3b5e_S4-13 · S. 10
Source: 1kV datasheet, p. 4
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAE00002AF
Open the certificate at DNV
