Triangle Fluid Controls Ltd.

Durlon 9002

Gasket & Sealing Material · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified

Durlon 9002 by Triangle Fluid Controls Ltd. DNV TA certificate TAP00002ME.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Max. temperature271°C (520°F)
Min. temperature-212°C (-350°F)
Continuous max. temperature260°C (500°F)

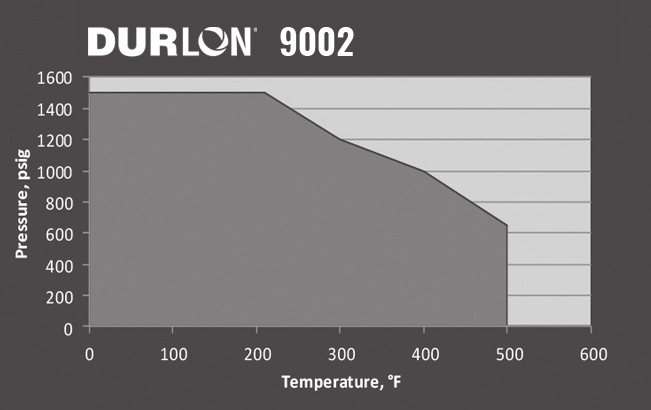

Max. pressure103 (1,500) bar (psi)
Tensile strength13.8 (2,000) MPa (psi)
Dielectric breakdown16 (406) kV/mm (V/mil)
Pressure, max, bar (psi)103 (1,500)
Recovery, %40
Creep Relaxation, %30
Tensile Strength, MPa (psi)13.8 (2,000)
Volume Resistivity, ASTM D2571.0 x 105 (ohm-cm)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Durlon® 9002 is an inorganic filler with pure PTFE resins. It is a filled PTFE gasket material that is suitable for extreme cryogenic demands.

Applications

  • Chemical Processing
  • Pharmaceutical
  • Marine (LNG)
  • Cryogenic

Features

  • Readily available through the standard manufacturing process

Standards

  • ASTM F104: F452111-A9B5E11K6M6

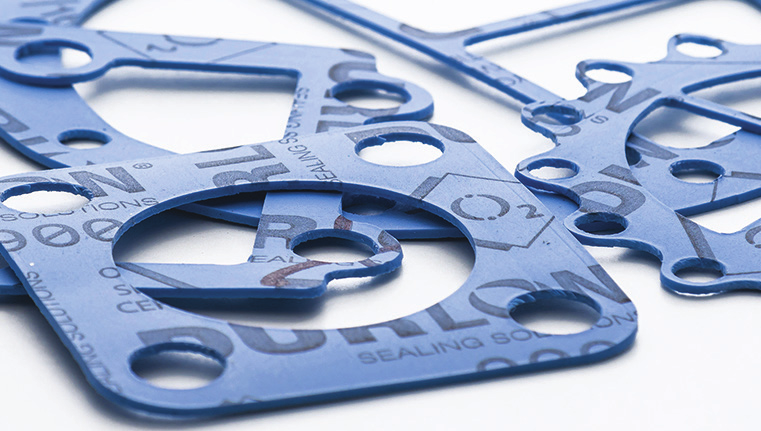

Triangle Fluid Controls Ltd. Durlon 9002 – Photo (6232a0d6a47a_S1-1 S. 1)
Photo · 6232a0d6a47a_S1-1 · S. 1
Triangle Fluid Controls Ltd. Durlon 9002 – Photo (6232a0d6a47a_S1-1 S. 1)
Photo · 6232a0d6a47a_S1-1 · S. 1
Triangle Fluid Controls Ltd. Durlon 9002 – Drawing (6232a0d6a47a_S1-1 S. 1)
Drawing · 6232a0d6a47a_S1-1 · S. 1

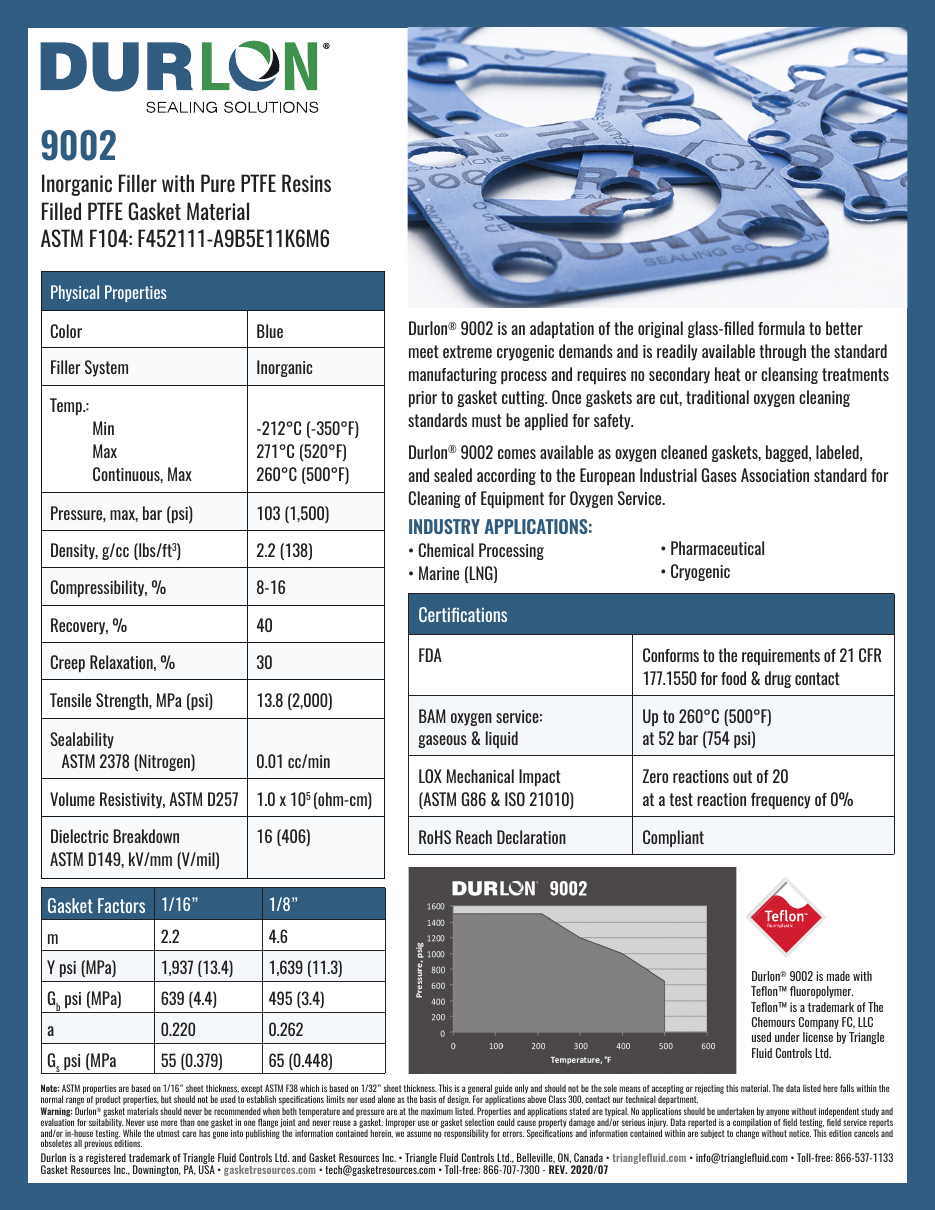

Source: Triangle Fluid Controls Ltd. Durlon 9002 datasheet, p. 1
Classification

DNV type approval

Listed in the DNV Approval Finder at the time we recorded it. The certificate is issued by DNV, not by us; check its current status at DNV.

CertificateTAP00002ME
