Library› Electrical› Marine Cables & Wiring› General Marine Cables› Helkama Bica (Shanghai) Co. Ltd. LKSM-EMC-FRHF, LKSM-EMC-FRSHF2
Helkama Bica (Shanghai) Co. Ltd.

LKSM-EMC-FRHF, LKSM-EMC-FRSHF2

General Marine Cables · Marine Cables & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Certificate No.03-001772/031474🔖
XLPE insulated0.6/1 kV (1.2 kV)🔖
Cross Sect area [mm2]1.0, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300🔖
Zertifikate03-001772/031474🔖
Voltage0.6/1 kV🔖
Temperature90°C🔖
StandardIEC 60092-353, 60331-2 (180) or 60331-1 (180), 60332-3-22🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Multi core power and control cable for fixed marine installations, flame retardant, fire resistant, low smoke, halogen free.

Applications

  • Fixed marine installations

Features

  • Flame retardant
  • Fire resistant
  • Low smoke
  • Halogen free
  • Enhanced Electromagnetic compatibility (EMC)

Standards

  • IEC 60092-353

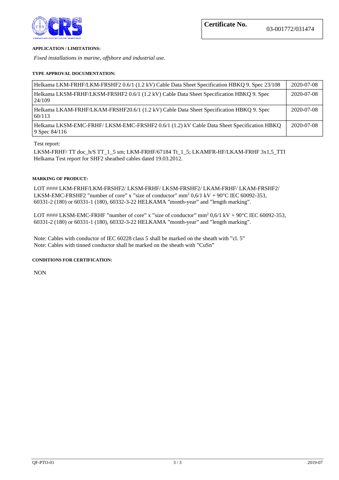

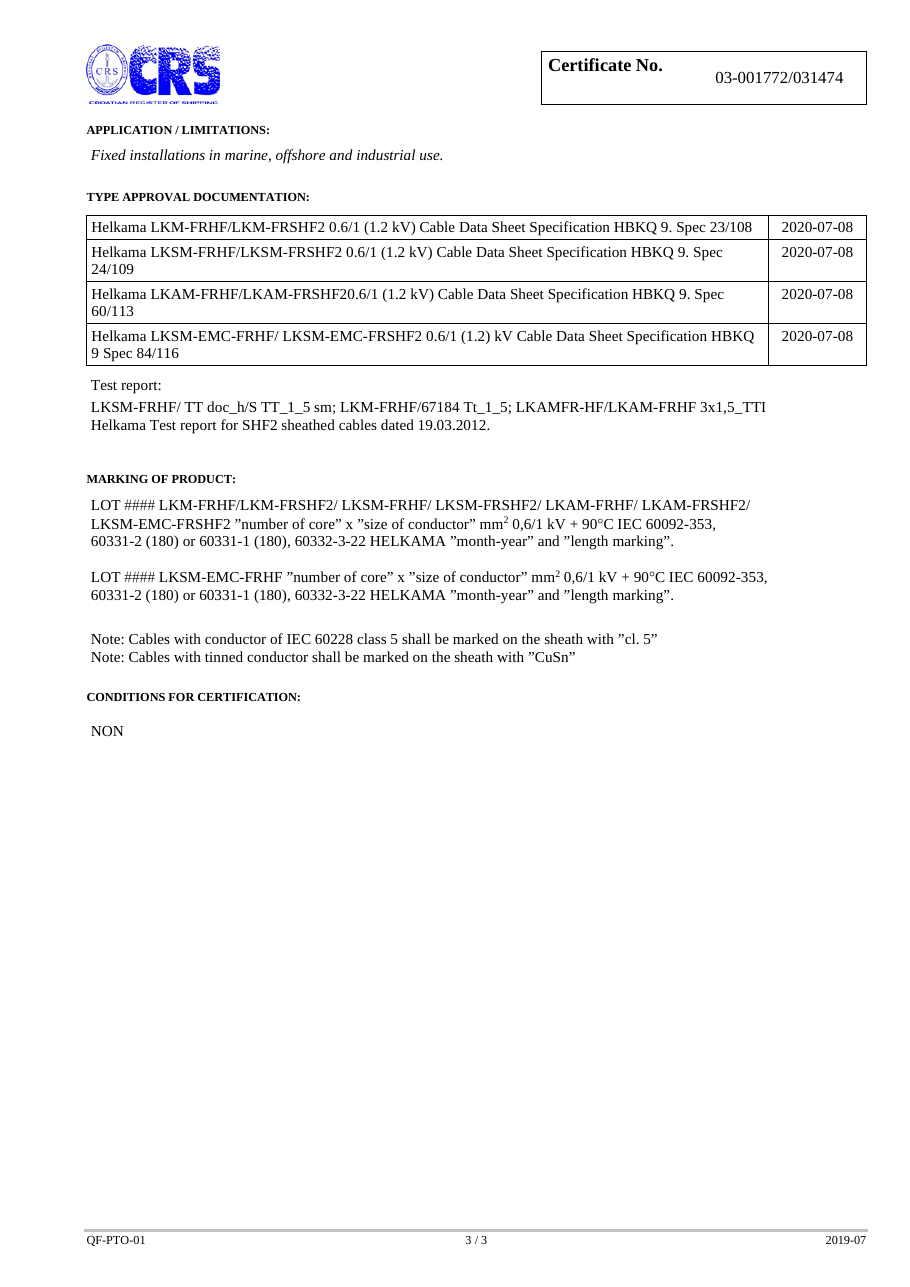

Source: Helkama Bica (Shanghai) Co. Ltd. LKSM-EMC-FRHF, LKSM-EMC-FRSHF2 datash, p. 3
Helkama Bica (Shanghai) Co. Ltd. LKSM-EMC-FRHF, LKSM-EMC-FRSHF2 – Drawing (550f56b9fb1c_S2-3 S. 2)
Drawing · 550f56b9fb1c_S2-3 · S. 2
Source: Helkama Bica (Shanghai) Co. Ltd. LKSM-EMC-FRHF, LKSM-EMC-FRSHF2 datash, p. 2
