Library› Engine Room› Welding Consumables› General Welding Consumables› Luoyang Ship Material Research Institute ENiCrMo-6
Luoyang Ship Material Research Institute

ENiCrMo-6

General Welding Consumables · Welding Consumables

Class-certified type (DNV register) · technical data sheet not yet verified

Luoyang Ship Material Research Institute (China) holds DNV Type Approval certificate TAW00005DS for ENiCrMo-6, issued 2023-04-03 by DNV SE. A welding electrode is a consumable rod that carries the arc current and supplies filler metal to the joint. The register classifies the product as an electrode within the category Welding Consumables, and the certificate is valid until 2028-04-02.

Application

Where it is used.

Welding electrodes of this kind are typically used for manual metal arc welding in shipyards, repair yards and on-site steelwork, where the electrode is replaced by hand as it is consumed.

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Materials for LNG tank construction that remain ductile and crack resistant at cryogenic temperatures, with high strength and weldability.

Applications

  • LNG transportation
  • cryogenic storage
  • natural gas liquefaction

Features

  • High strength
  • ductile
  • crack resistant
  • weldable without risk of brittle fracture

Standards

  • ASTM
  • EN 10088-1
  • EN 10028-4
Source: Luoyang Ship Material Research Institute ENiCrMo-6 datasheet, p. 2

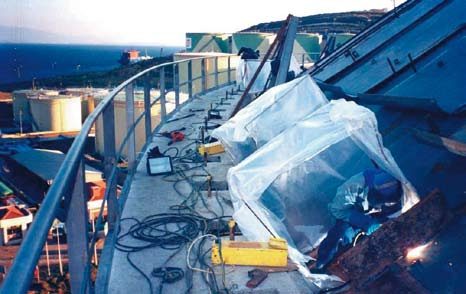

Luoyang Ship Material Research Institute ENiCrMo-6 – Photo (b6fd888c1785_S1-4 S. 1)
Photo · b6fd888c1785_S1-4 · S. 1

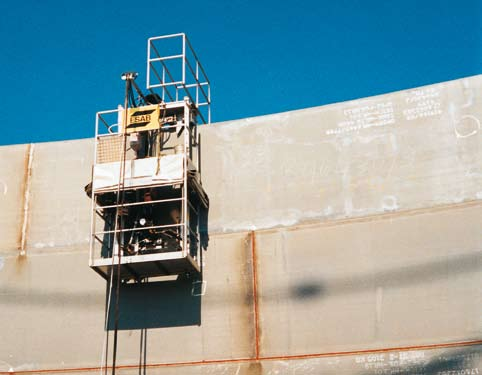

Luoyang Ship Material Research Institute ENiCrMo-6 – Photo (b6fd888c1785_S1-4 S. 4)
Photo · b6fd888c1785_S1-4 · S. 4
Luoyang Ship Material Research Institute ENiCrMo-6 – Drawing (b6fd888c1785_S1-4 S. 1)
Drawing · b6fd888c1785_S1-4 · S. 1

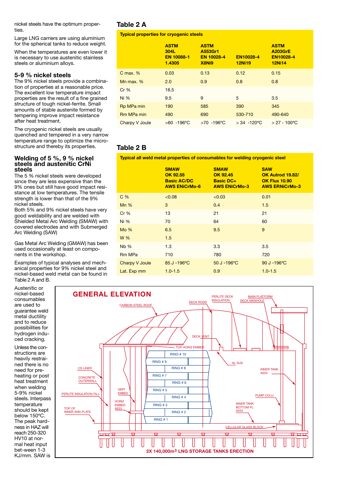

Luoyang Ship Material Research Institute ENiCrMo-6 – Drawing (b6fd888c1785_S1-4 S. 2)
Drawing · b6fd888c1785_S1-4 · S. 2
Luoyang Ship Material Research Institute ENiCrMo-6 – Drawing (b6fd888c1785_S1-4 S. 3)
Drawing · b6fd888c1785_S1-4 · S. 3
Luoyang Ship Material Research Institute ENiCrMo-6 – Page preview (b6fd888c1785_S1-4 S. 4)
Page preview · b6fd888c1785_S1-4 · S. 4
Source: Luoyang Ship Material Research Institute ENiCrMo-6 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAW00005DS
