Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Barksdale GmbH E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC

Barksdale GmbH

E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC by Barksdale GmbH. DNV TA certificate TAA0000202.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Pressure range E1H-H150,10…1,0 bar (rising)

Pressure range E1H-H900,8…6,0 bar (rising)

Pressure range E1H-H2502,10…17,0 bar (rising)

Pressure range E1H-H5003,70…34,0 bar (rising)

Pressure range E1H-H-VAC-0,28…-0,9 bar (rising)

Degree of protectionIP 56

Contact rating H-types125/250VAC, 10A

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

This is a pressure switch with type designations E1H-H15, E1H-H90, E1H-H250, E1H-H500, and E1H-H-VAC.

Standards

DNV CG-0339

Source: Barksdale GmbH E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC datashe, p. 3

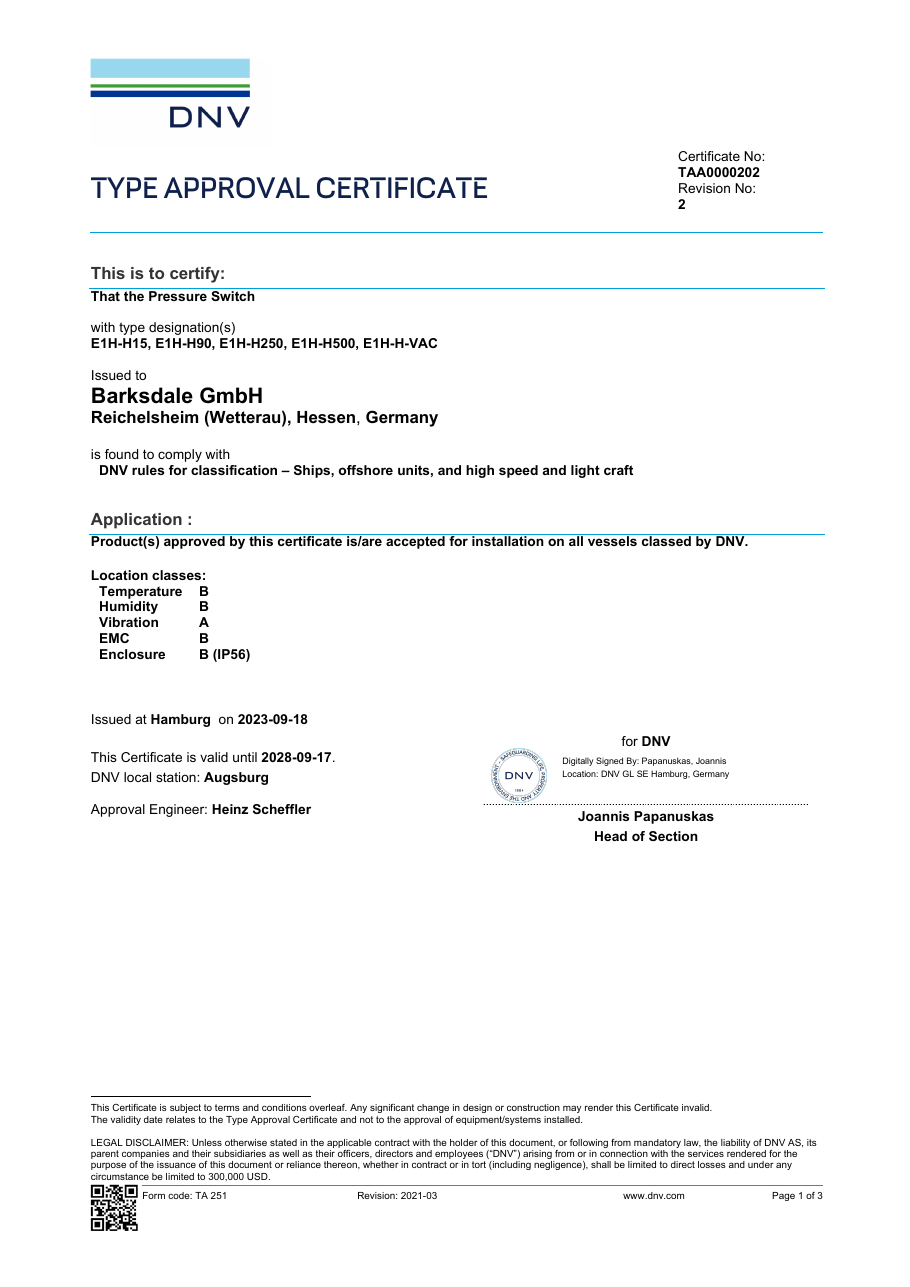

Barksdale GmbH E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC – Drawing (ea919188904b_S1-3 S. 1)

Drawing · ea919188904b_S1-3 · S. 1

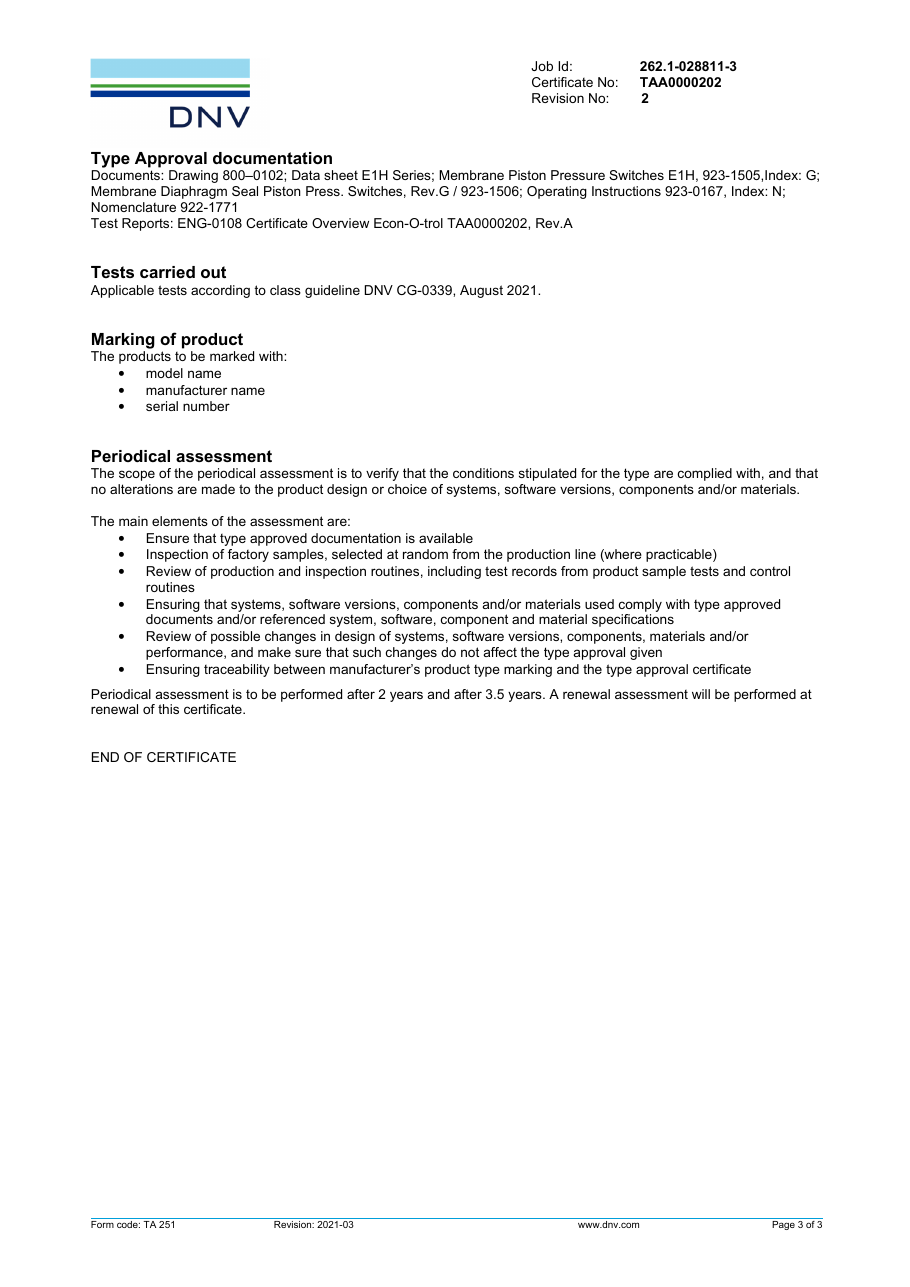

Barksdale GmbH E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC – Drawing (ea919188904b_S1-3 S. 3)

Drawing · ea919188904b_S1-3 · S. 3

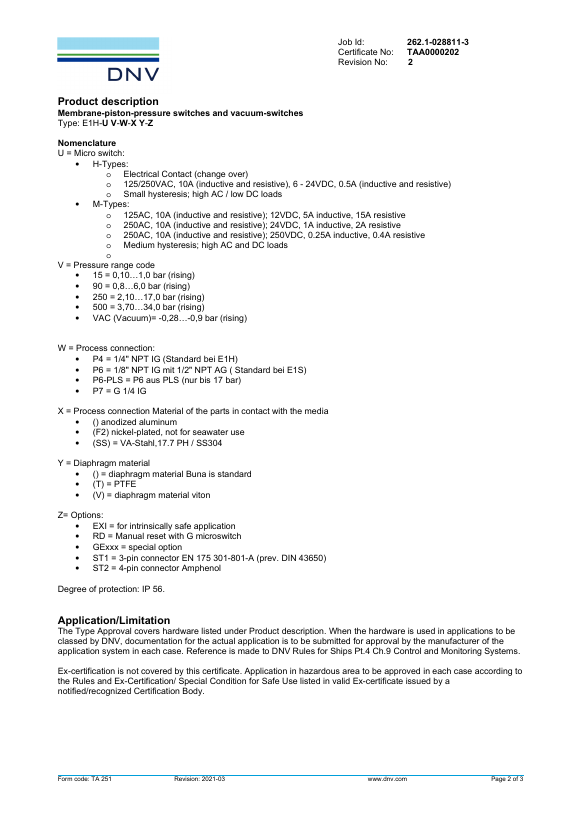

Barksdale GmbH E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC – Page preview (ea919188904b_S1-3 S. 2)

Page preview · ea919188904b_S1-3 · S. 2

Source: Barksdale GmbH E1H-H15, E1H-H90, E1H-H250, E1H-H500, E1H-H-VAC datashe, p. 1

Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAA0000202

Open the certificate at DNV
