Fischer Meß- und Regeltechnik GmbH

ER 76 1000000X, ER 76 2000000X

Control Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified​​⁠​⁠​‍‍⁠‍⁠‌‍⁠‍‌⁠‍‌​

ER 76 1000000X, ER 76 2000000X by Fischer Meß- und Regeltechnik GmbH. DNV TA certificate TAA00001ZU.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Contact rating (maximal)250V AC, 2A
Power supplyX = 1: 230 V AC, X = 2: 115 V AC, X = 3: 48 V AC, X = 4: 24 V AC
CertificationsType Approval Assessment Report 2018-08-28
Input per channel1 common, 1 min., 1 max.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“This is to certify: That the Electrical Measuring and Protection Relay with type designation(s) ER 76 1000000X, ER 76 2000000X Issued to”

Applications

  • all vessels classed by DNV GL

Features

  • Temperature B
  • Humidity B
  • Vibration A
  • Enclosure A (IP20)

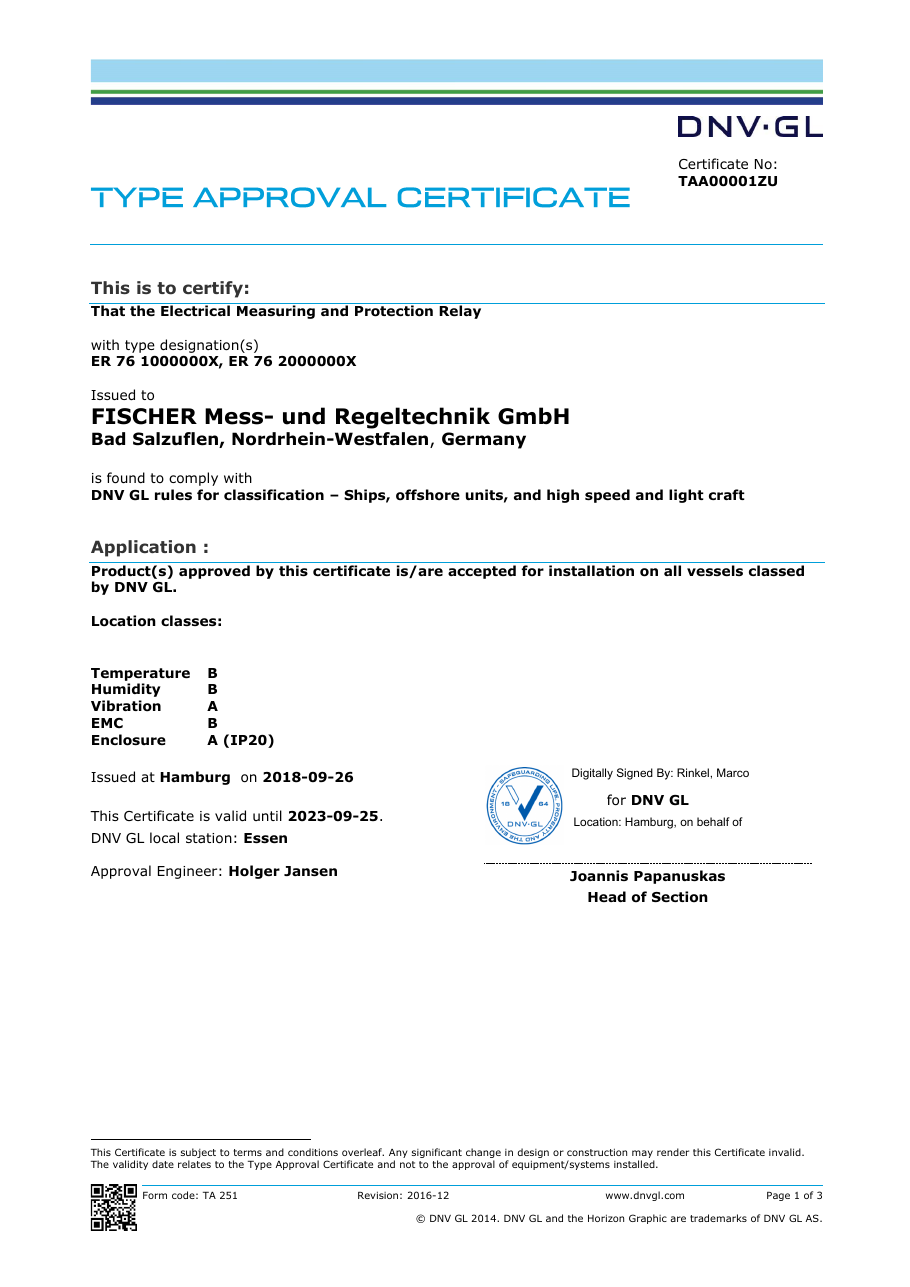

Fischer Meß- und Regeltechnik GmbH ER 76 1000000X, ER 76 2000000X – Drawing (7589d5028b0e_S1-2 S. 1)
Drawing · 7589d5028b0e_S1-2 · S. 1

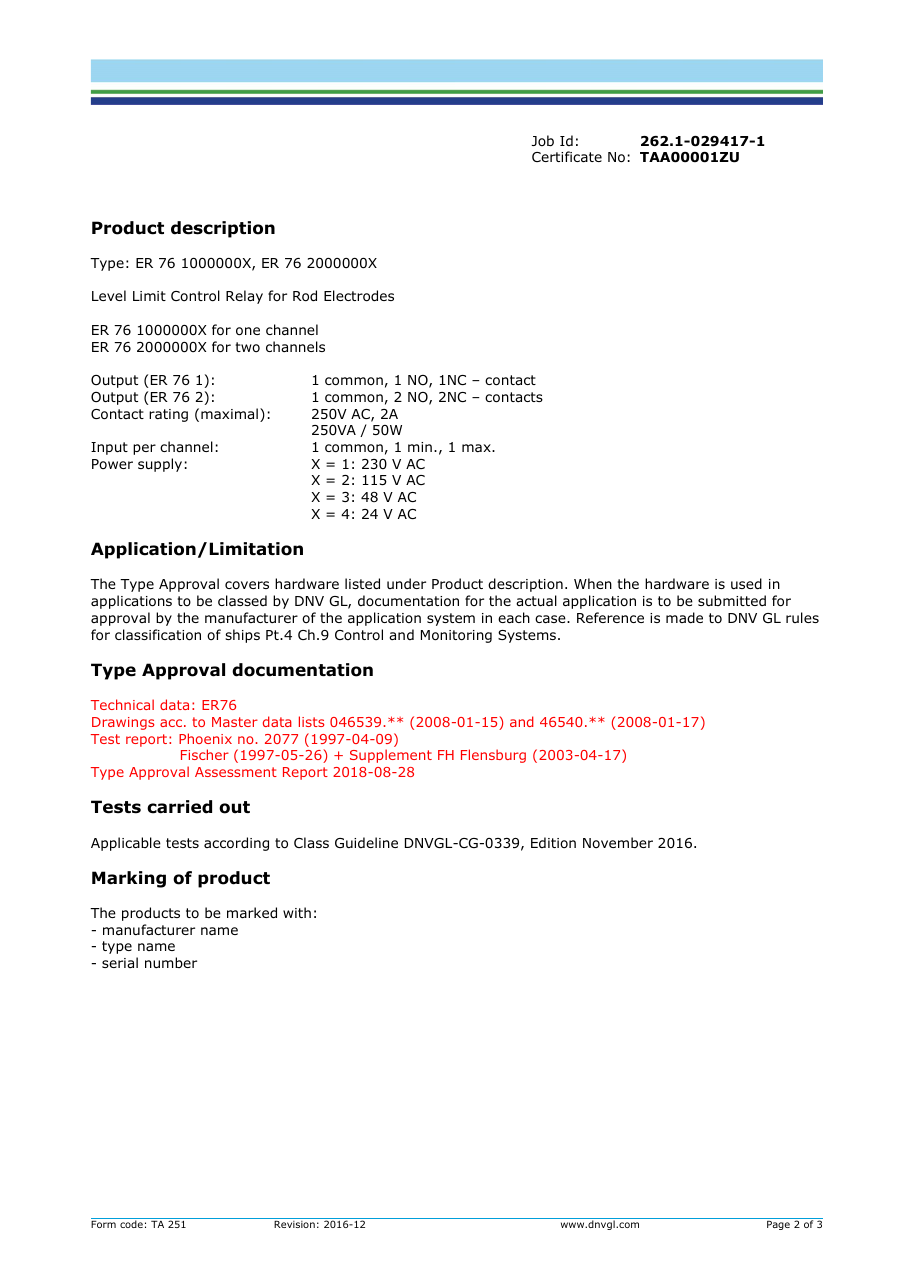

Fischer Meß- und Regeltechnik GmbH ER 76 1000000X, ER 76 2000000X – Drawing (7589d5028b0e_S1-2 S. 2)
Drawing · 7589d5028b0e_S1-2 · S. 2
Source: Fischer Meß- und Regeltechnik GmbH ER 76 1000000X, ER 76 2000000X data, p. 1
Classification

DNV type approval

Listed in the DNV Approval Finder at the time we recorded it. The certificate is issued by DNV, not by us; check its current status at DNV.

CertificateTAA00001ZU
Open the certificate at DNV
