Library› Electrical› Lighting› LED Light Fitting› Luminell Sweden AB SL2
Luminell Sweden AB

SL2

LED Light Fitting · Lighting

Class-certified type (DNV register) · technical data sheet not yet verified

The Luminell SL2 is a searchlight with high luminous flux and adjustable beam angles, designed for range and near vessel operations. It has a compact, ruggedized construction, a powerful spotbeam, unlimited horizontal and vertical movement and a user friendly operator panel. It complies with FiFi regulation and has excellent EMC characteristics, with optional integration and automation functions.

Specifications

Technical data.reference — unverified

Total light intensity4.0 MCd
Spot beam3.5° / 3600 kCd / 1900 m
Wide beam15 ° / 840 kCd / 24 000 lm
Initial luminous fluxOver 60 000 lm
CriMin. 70
Color temp6000
Mains power searchlight24 VDC to electrical cabinet. Power consumption max 800 W (for AC mains power, a
Mains power operator panel9 – 28 VDC
IP classSearchlight IP66 Operator panel IP56
Operating temperatureSearchlight -40°C to +55°C* Operator panel -20°C to +55°C
EmcDesigned for IEC 60945
Vibration/shockDesigned for IEC 60945
Materials- Searchlight body in acidproof stainless steel 1.4404, powder coated. - LED-mod
Colours- The searchlight comes in 3 optional colours: - White RAL 9016 gloss level 70 -
Mechanical interface4 x M10 bolts in the searchlight mechanical foot. to vessel Vibration dampers fo
Static size and weight26x65x50 cm, weight 28 kg (excluding cabinet and operator panel) (see also drawi
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

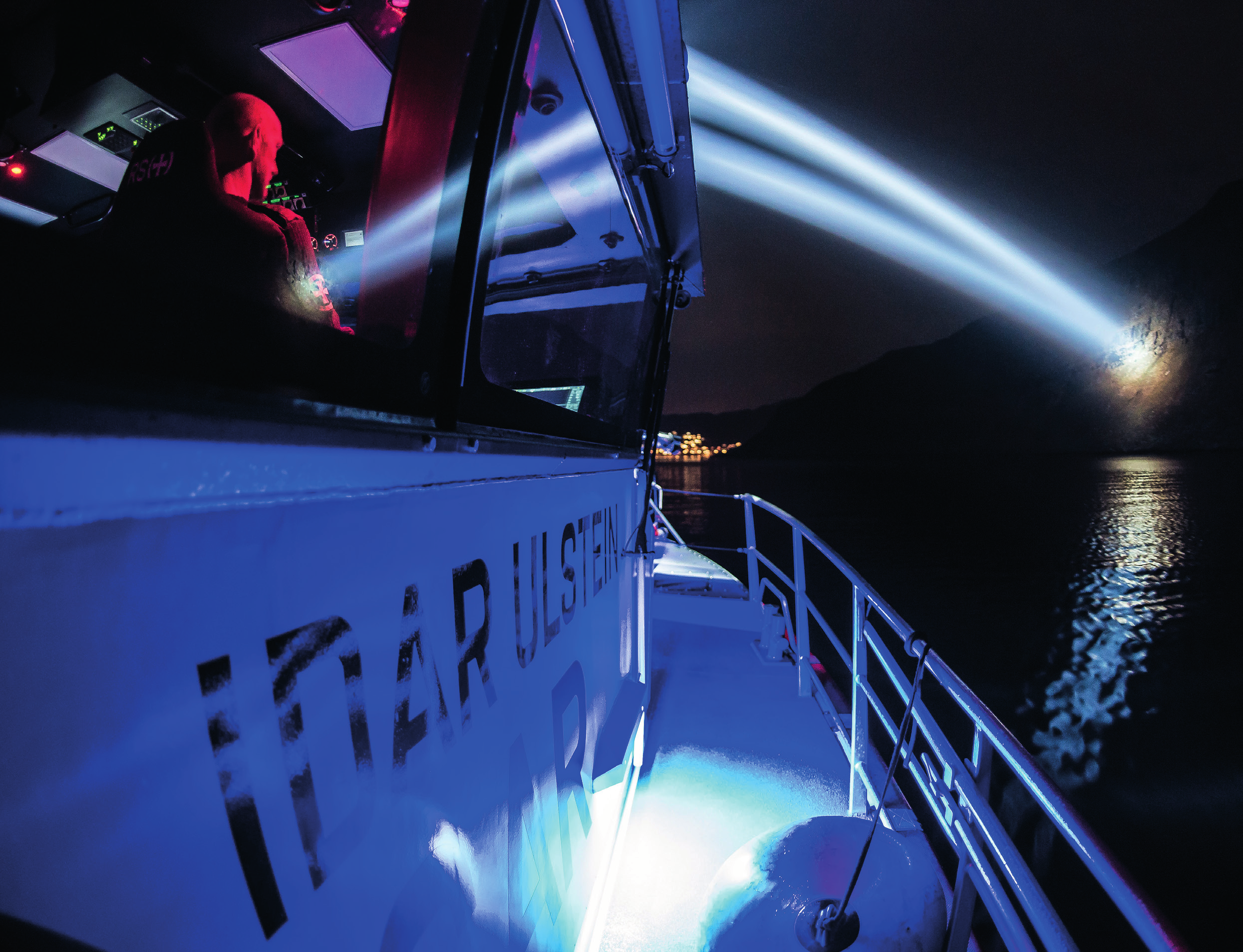

A searchlight with high luminous flux and adjustable beam angles for various applications.Source: Luminell Sweden AB SL2 datasheet, p. 2

Applications

  • range
  • near vessel operations

Features

  • Compact size
  • User friendly operator panel logic
  • Progressive design
  • Powerful spotbeam
  • FiFi regulation compliance
  • Excellent EMC characteristics
  • Ruggedized construction
  • Unlimited horizontal and vertical movement

Options

  • Optional integration and automation functions

Standards

  • Fifi regulation

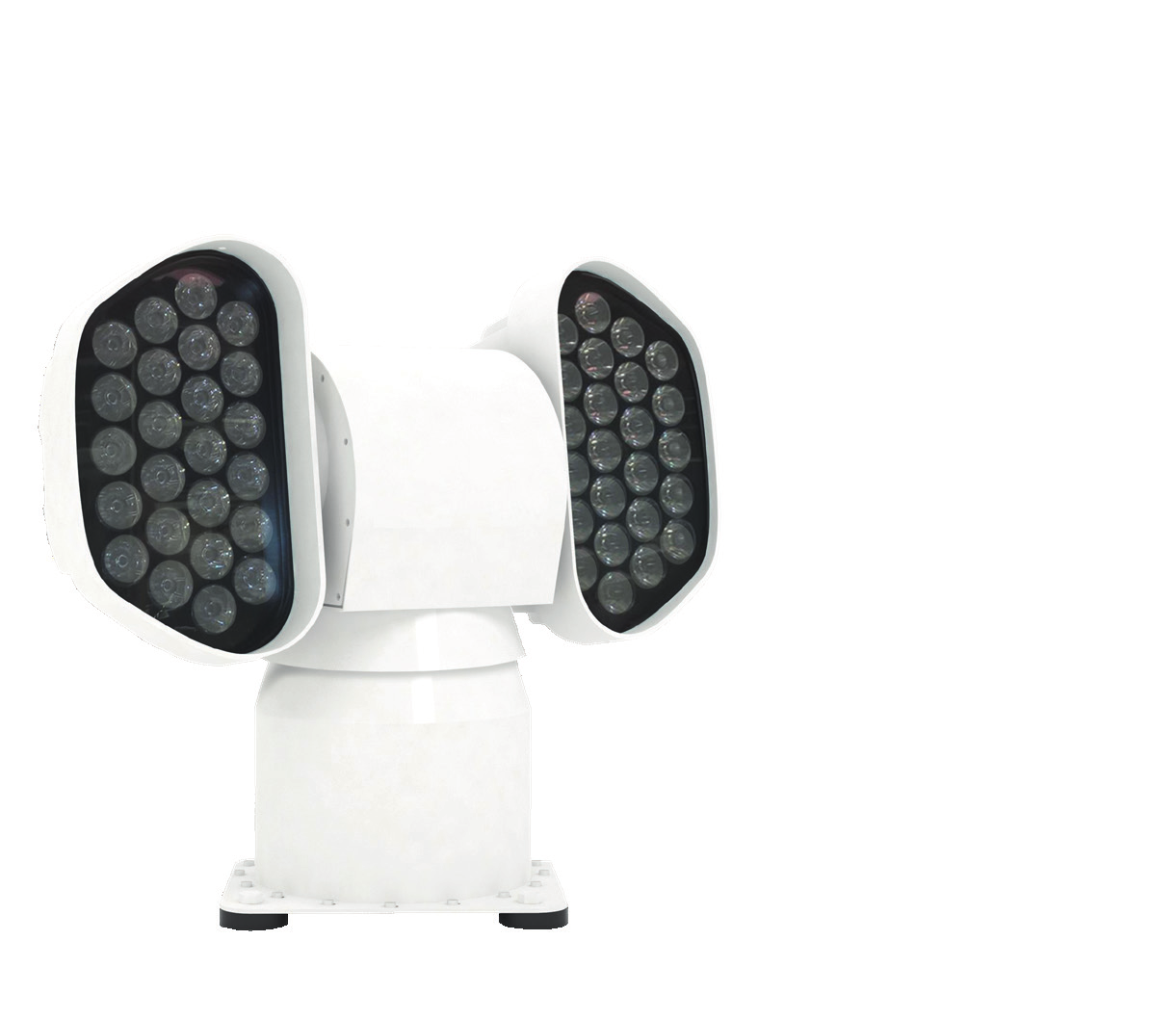

Luminell Sweden AB SL2 – Photo (c107056dc8b2_S1-4 S. 1)
Photo · c107056dc8b2_S1-4 · S. 1
Luminell Sweden AB SL2 – Photo (c107056dc8b2_S1-4 S. 1)
Photo · c107056dc8b2_S1-4 · S. 1
Luminell Sweden AB SL2 – Photo (c107056dc8b2_S1-4 S. 4)
Photo · c107056dc8b2_S1-4 · S. 4

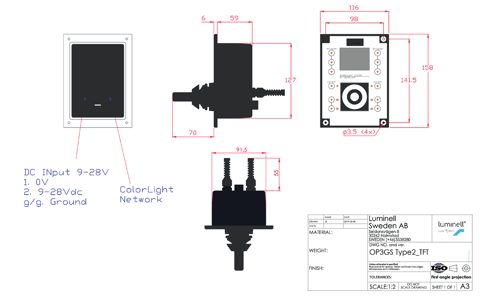

Luminell Sweden AB SL2 – Photo (c107056dc8b2_S1-4 S. 4)
Photo · c107056dc8b2_S1-4 · S. 4

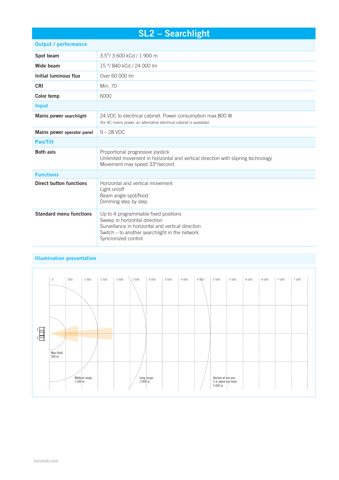

Luminell Sweden AB SL2 – Drawing (c107056dc8b2_S1-4 S. 2)
Drawing · c107056dc8b2_S1-4 · S. 2

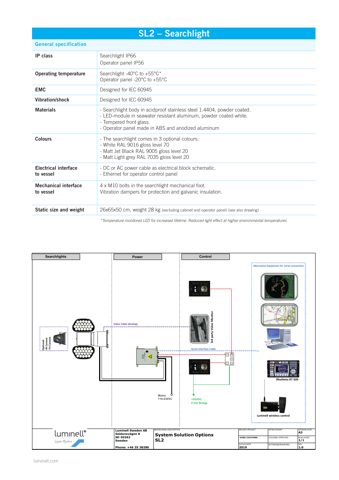

Luminell Sweden AB SL2 – Drawing (c107056dc8b2_S1-4 S. 3)
Drawing · c107056dc8b2_S1-4 · S. 3

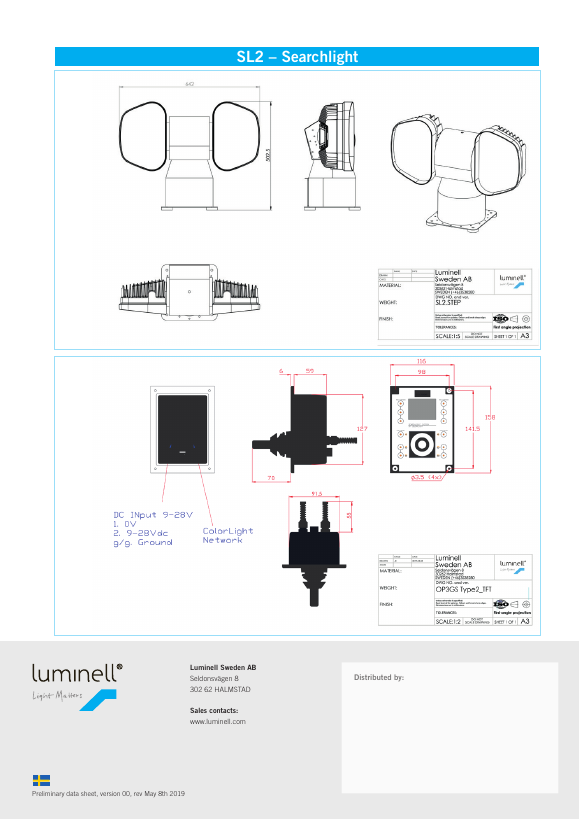

Luminell Sweden AB SL2 – Page preview (c107056dc8b2_S1-4 S. 4)
Page preview · c107056dc8b2_S1-4 · S. 4
Source: Luminell Sweden AB SL2 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAE00004UT
