EXMAR GmbH

Cutting ring fitting

Pipe Coupling · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified

Cutting ring fitting by EXMAR GmbH. DNV TA certificate TAP000020Z.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal pressure PN800 bar
Temperature range-196°C to +400°C
Tube diameter range (series LL)4 - 12 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Cutting ring fittings are used to create a secure seal between pipes and connectors. They work by pressing a cutting ring into the tube, creating a tight fit.

Features

  • according to ISO 8434-1/DIN 2353
  • large range of products
  • corrosion resistant

Standards

  • ISO 8434-1/DIN 2353
EXMAR GmbH Cutting ring fitting – Photo (6e22590bb6cf_S1-2 S. 1)
Photo · 6e22590bb6cf_S1-2 · S. 1
EXMAR GmbH Cutting ring fitting – Photo (6e22590bb6cf_S1-2 S. 1)
Photo · 6e22590bb6cf_S1-2 · S. 1
EXMAR GmbH Cutting ring fitting – Drawing (6e22590bb6cf_S1-2 S. 2)
Drawing · 6e22590bb6cf_S1-2 · S. 2

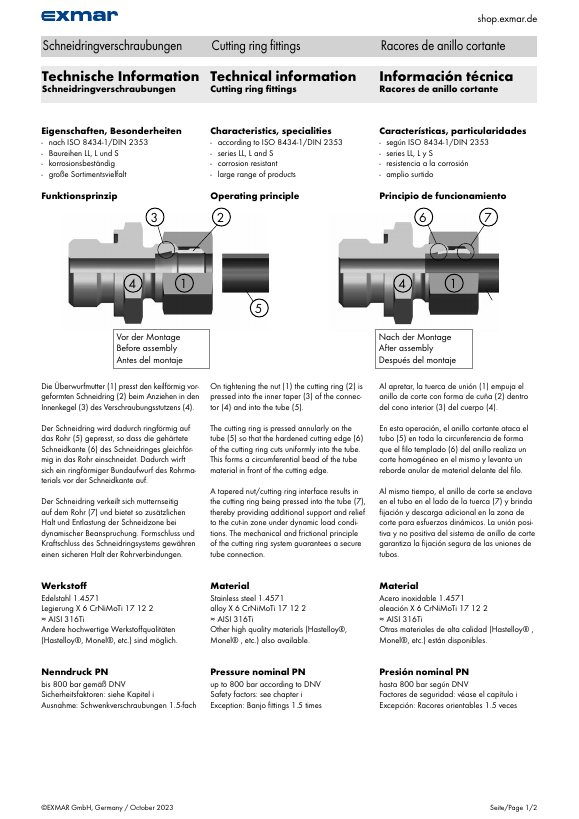

EXMAR GmbH Cutting ring fitting – Page preview (6e22590bb6cf_S1-2 S. 1)
Page preview · 6e22590bb6cf_S1-2 · S. 1
Source: EXMAR GmbH Cutting ring fitting datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAP000020Z
Open the certificate at DNV
