Bühler Technologies GmbH

GAS 222.15-MA

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified​​⁠​​​​⁠​​​‌⁠⁠‍⁠‌‌​‍

GAS 222.15-MA by Bühler Technologies GmbH. DNV TA certificate TAA00002FW.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Certificate no.:TAA00002FW
Housing:B (IP66)
Probe gas inlet temperature:max. 200 °C
Ambient temperature:-20 to +60 °C
Self-regulating heater:+180 °C
Low temperature alarm:Switching current max. 4 A (switch-back point < 140 °C)
Electrical data:115 V/230 V, 50/60 Hz, 400 W
Weight:8.5 kg
IP rating:IP66
Materials in contact with media:1.4571, graphite/1.4404 and see filter
Max. operating pressure:6 bar
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The GAS 222.15-MA gas probe is designed for sampling gas in maritime applications. It is certified for use on ships and offshore units.

Applications

  • monitoring pollutant emissions
  • controlling the combustion process

Features

  • Heated probe with downstream filter
  • Type tested for use on ships according to DNV
  • Certified for high vibration environments up to 4 g
  • Safe for use in environments between -20 °C and 60 °C
  • Type of protection IP66
  • For dust loads up to 2 g/m3

Standards

  • DNV CG-0339
Source: Bühler Technologies GmbH GAS 222.15-MA datasheet, p. 2

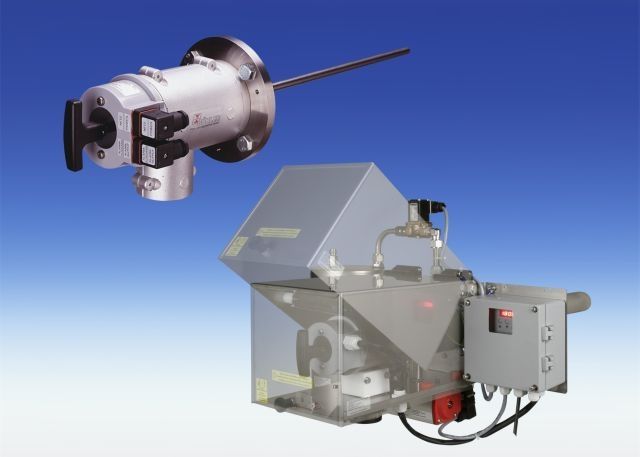

Bühler Technologies GmbH GAS 222.15-MA – Photo (4de1233c12b3_S1-2 S. 1)
Photo · 4de1233c12b3_S1-2 · S. 1
Bühler Technologies GmbH GAS 222.15-MA – Page preview (4de1233c12b3_S1-2 S. 1)
Page preview · 4de1233c12b3_S1-2 · S. 1
Bühler Technologies GmbH GAS 222.15-MA – Page preview (4de1233c12b3_S1-2 S. 2)
Page preview · 4de1233c12b3_S1-2 · S. 2
Source: Bühler Technologies GmbH GAS 222.15-MA datasheet, p. 1
Classification

DNV type approval

Listed in the DNV Approval Finder at the time we recorded it. The certificate is issued by DNV, not by us; check its current status at DNV.

CertificateTAA00002FW
Open the certificate at DNV
