Library› Engine Room› Engine Components› Engine Control Unit (ECU)› MOTORTECH GmbH MIC6, MIC6-Marine
MOTORTECH GmbH

MIC6, MIC6-Marine

Engine Control Unit (ECU) · Engine Components

Class-certified type (DNV register) · technical data sheet not yet verified
385 x 240 x 114.5Dimensions
18 to 32 V DCVoltage

MIC6, MIC6-Marine by MOTORTECH GmbH. DNV TA certificate TAA00000ZZ.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage18 to 32 V DC VDC
Max. ignition energy1000 mJ
Max. primary voltage250 V DC
Max. ignition outputs24
Max. programmable spark duration100 to 1500 µsec
Degree of protectionIP65
Dimensions385 x 240 x 114.5 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

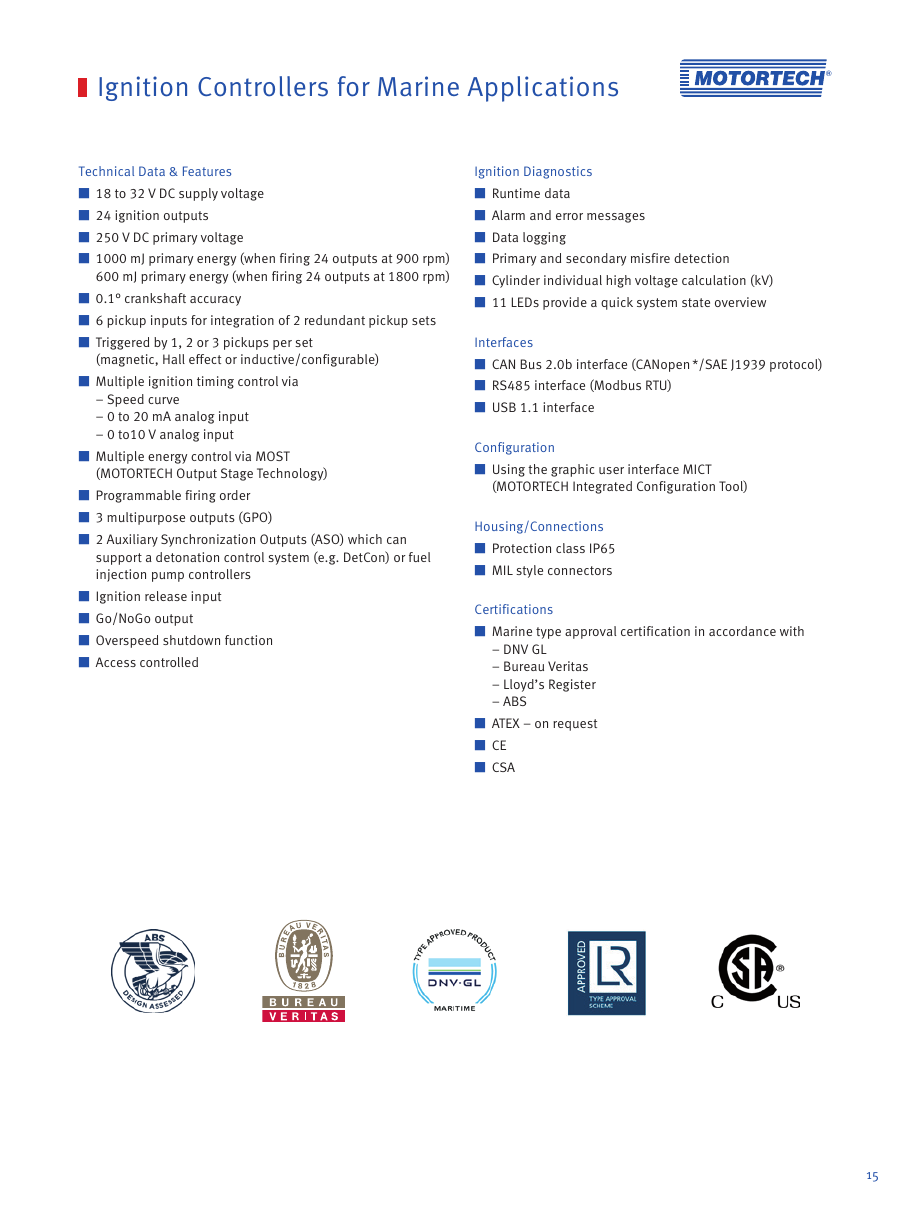

The MIC3+/MIC4/MIC5/MIC6 series are ignition controllers for marine engines.

Features

  • Max. 24 ignition outputs
  • 250 V DC max. primary voltage
  • 100 to 1500 μsec max. programmable spark duration
  • MOST – MOTORTECH Output Stage Technology
  • Available as Heavy Duty (HD) housing version
  • Protection class IP65 (HD)
Source: MOTORTECH GmbH MIC6, MIC6-Marine datasheet, p. 13

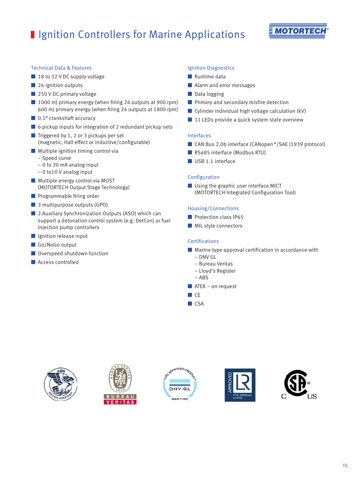

MOTORTECH GmbH MIC6, MIC6-Marine – Drawing (c4f25f800f3b_S8-16 S. 8)
Drawing · c4f25f800f3b_S8-16 · S. 8

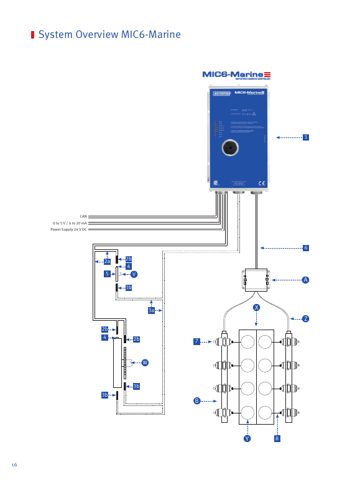

MOTORTECH GmbH MIC6, MIC6-Marine – Page preview (c4f25f800f3b_S8-16 S. 9)
Page preview · c4f25f800f3b_S8-16 · S. 9
Source: MOTORTECH GmbH MIC6, MIC6-Marine datasheet, p. 8
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAA00000ZZ
Open the certificate at DNV
