Library› Electrical› Instrumentation & Gauges› Pressure Gauge› WIKA Alexander Wiegand SE & Co. KG DPGS40TA
WIKA Alexander Wiegand SE & Co. KG

DPGS40TA

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

DPGS40TA by WIKA Alexander Wiegand SE & Co. KG. DNV TA certificate TAP000021A.

Specifications

Technical data.reference — unverified

Measuring range0 ... 250 mbar or 0 ... 15 psi
CertificationsIEC 61508 / IEC 61511
Max. input voltage UiDC 30 V
Max. input current li100 mA
Max. input power Pi (dust)≤ 750 mW
WeightApprox. 4 kg [10.7 lb]
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Differential pressure gauge with integrated working pressure indication and microswitch.

Applications

  • Boilers and pressure vessels
  • Marine boilers, bilge-water collection
  • Water and wastewater treatment plants

Features

  • Shatterproof window
  • Robust aluminium or stainless steel measuring chamber
  • TÜV-certified functional safety through SIL certificate
  • QR code on dial links to instrument-specific information

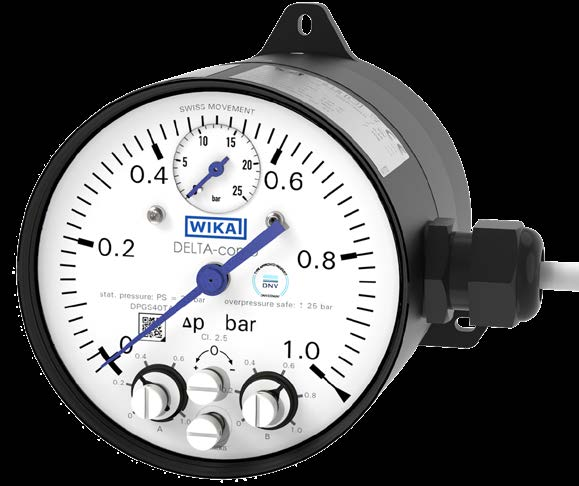

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Photo (06c9a8f893f3_S1-8 S. 1)
Photo · 06c9a8f893f3_S1-8 · S. 1

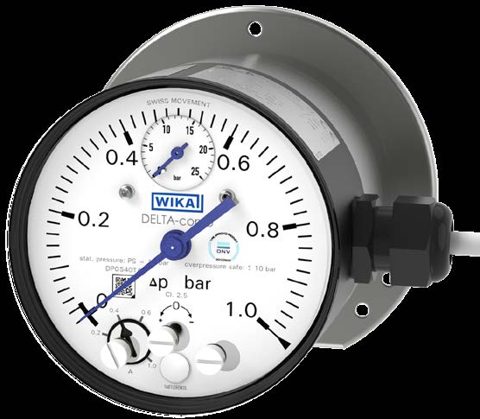

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Photo (06c9a8f893f3_S1-8 S. 1)
Photo · 06c9a8f893f3_S1-8 · S. 1

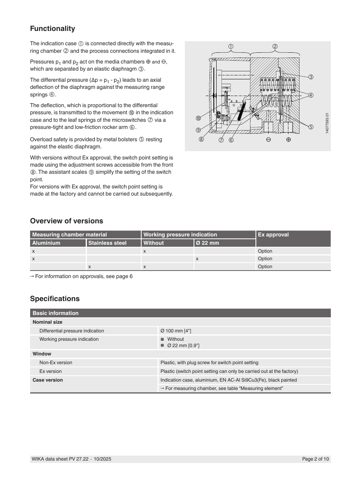

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Drawing (06c9a8f893f3_S1-8 S. 2)
Drawing · 06c9a8f893f3_S1-8 · S. 2

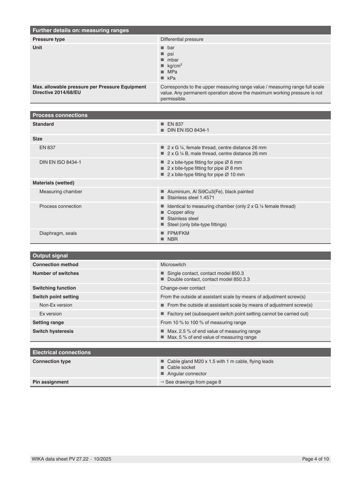

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Drawing (06c9a8f893f3_S1-8 S. 4)
Drawing · 06c9a8f893f3_S1-8 · S. 4

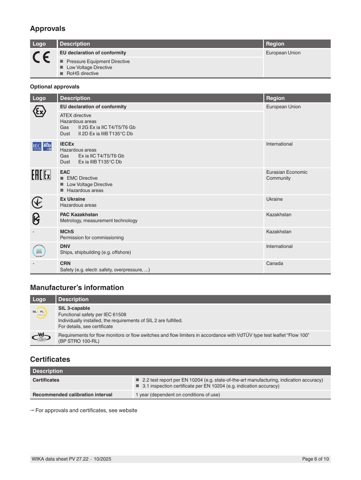

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Drawing (06c9a8f893f3_S1-8 S. 6)
Drawing · 06c9a8f893f3_S1-8 · S. 6

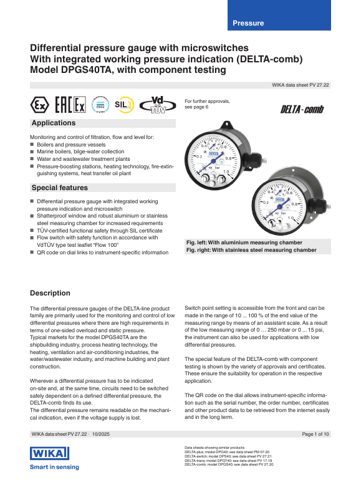

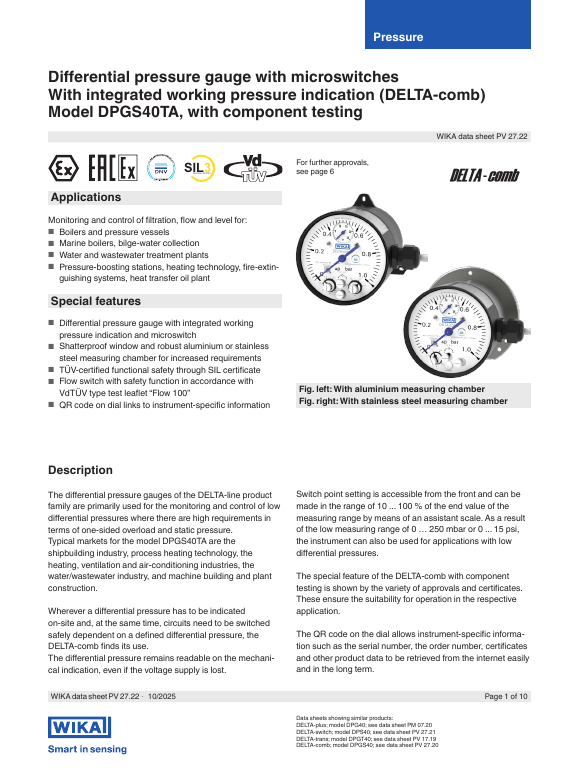

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Page preview (06c9a8f893f3_S1-8 S. 1)
Page preview · 06c9a8f893f3_S1-8 · S. 1

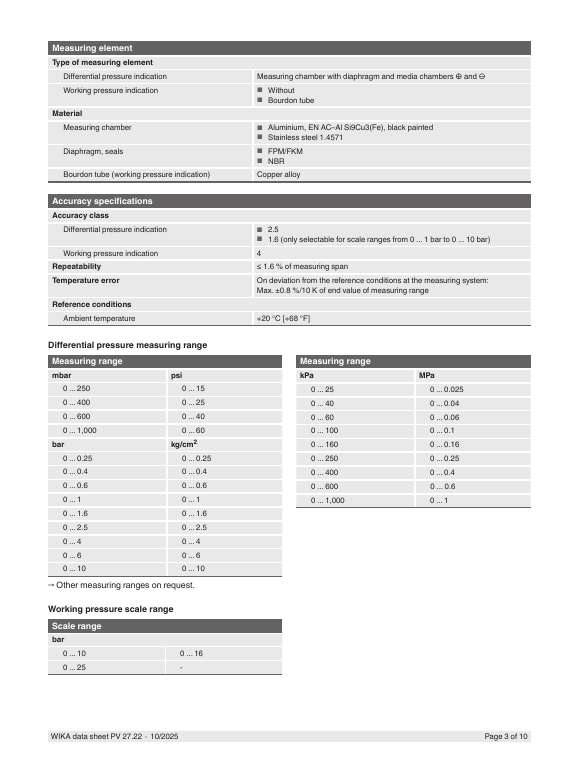

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Page preview (06c9a8f893f3_S1-8 S. 3)
Page preview · 06c9a8f893f3_S1-8 · S. 3

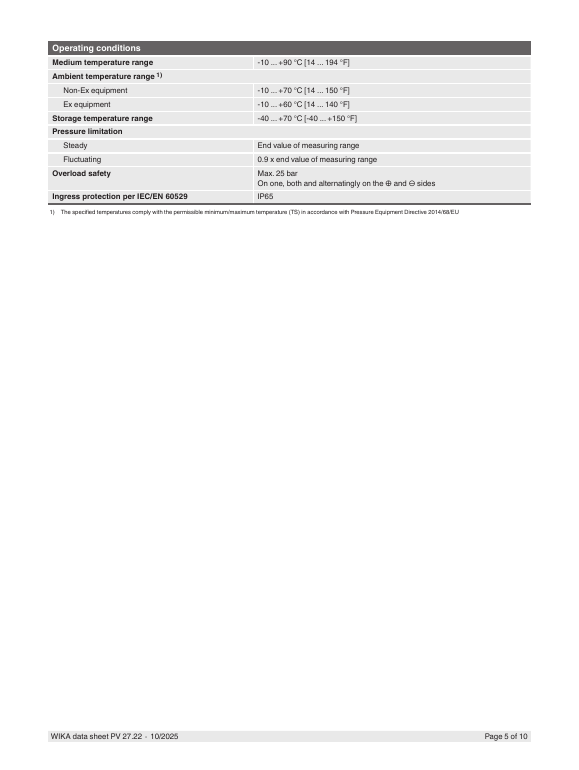

WIKA Alexander Wiegand SE & Co. KG DPGS40TA – Page preview (06c9a8f893f3_S1-8 S. 5)
Page preview · 06c9a8f893f3_S1-8 · S. 5
Source: WIKA Alexander Wiegand SE & Co. KG DPGS40TA datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAP000021A
Open the certificate at DNV
