Lateral (MFL DN-800), Angular (MFP DN-800), Axial + Lateral (MFD DN-2324)

Expansion Joint / Compensator · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified​​‍⁠‍‍‌⁠‍⁠⁠​‌‌⁠​‌​‍⁠

Lateral (MFL DN-800), Angular (MFP DN-800), Axial + Lateral (MFD DN-2324) by MACOGA, S.A. DNV TA certificate TAP0000213.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temperature range+20°C to +230°C
Sizes32"
Max. working press.0.75 bar / FV
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

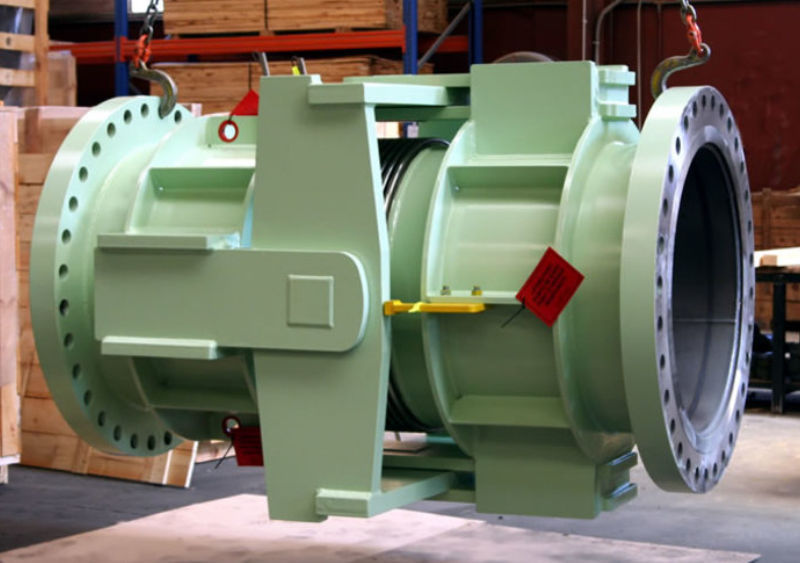

Metallic expansion joints designed to accommodate thermal expansion and contraction in piping systems on vessels.

Applications

  • ship piping systems
  • marine vessels
  • thermal expansion management

Features

  • temperature range +20°C to +230°C
  • maximum working pressure 1 bar / FV
  • sizes up to 32 inches
MACOGA Lateral (MFL DN-800), Angular (MFP DN-800), Axial + Lateral (MFD DN-2324) – Drawing (b93167a63dab_S1-1 S. 1)
Drawing · b93167a63dab_S1-1 · S. 1
MACOGA Lateral (MFL DN-800), Angular (MFP DN-800), Axial + Lateral (MFD DN-2324) – Drawing (9621e2341098_S1-3 S. 2)
Drawing · 9621e2341098_S1-3 · S. 2
MACOGA Lateral (MFL DN-800), Angular (MFP DN-800), Axial + Lateral (MFD DN-2324) – Drawing (9621e2341098_S1-3 S. 3)
Drawing · 9621e2341098_S1-3 · S. 3
