Library› Electrical› Electrical Components & Switchgear› Switch Disconnector / Fused Switch› Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C
Wöhner GmbH & Co. KG Elektrotechnische Systeme

QCB-NH00, QCB-NH000/00C

Switch Disconnector / Fused Switch · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
106 x 200 x 97Dimensions
690Voltage

The Wöhner QCB-NH00 and QCB-NH000/00C are DNV-approved fused switches for NH00 and NH000 fuse links, rated 160 A at 690 VAC with 440 V DC rating, 800 V isolation voltage and IP30 protection. Dimensions are 106 x 200 x 97 mm.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rated current160 A
Voltage690 VAC
Rated voltage DC (IEC)440 V
Rated isolation voltage Ui AC800 V
Conditional short-circuit current with fuses (AC)50 kA / 690 V
Dimensions106 x 200 x 97 mm
Degree of protectionIP30
Permitted power dissipation of the fuse-link12 W
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Changes in the interest of developments and technical progress are reserved. Wöhner GmbH & Co. KG, Mönchrödener Straße 10, 96472 Rödental, Germany, Tel. +49 9563 751-0”

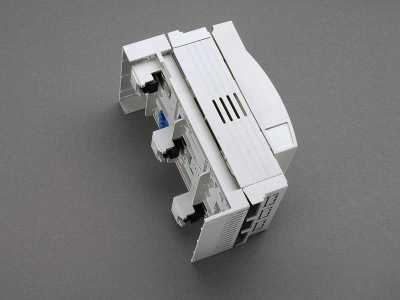

Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Photo (3928b65addfa_S1-7 S. 1)
Photo · 3928b65addfa_S1-7 · S. 1
Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Photo (3928b65addfa_S1-7 S. 1)
Photo · 3928b65addfa_S1-7 · S. 1

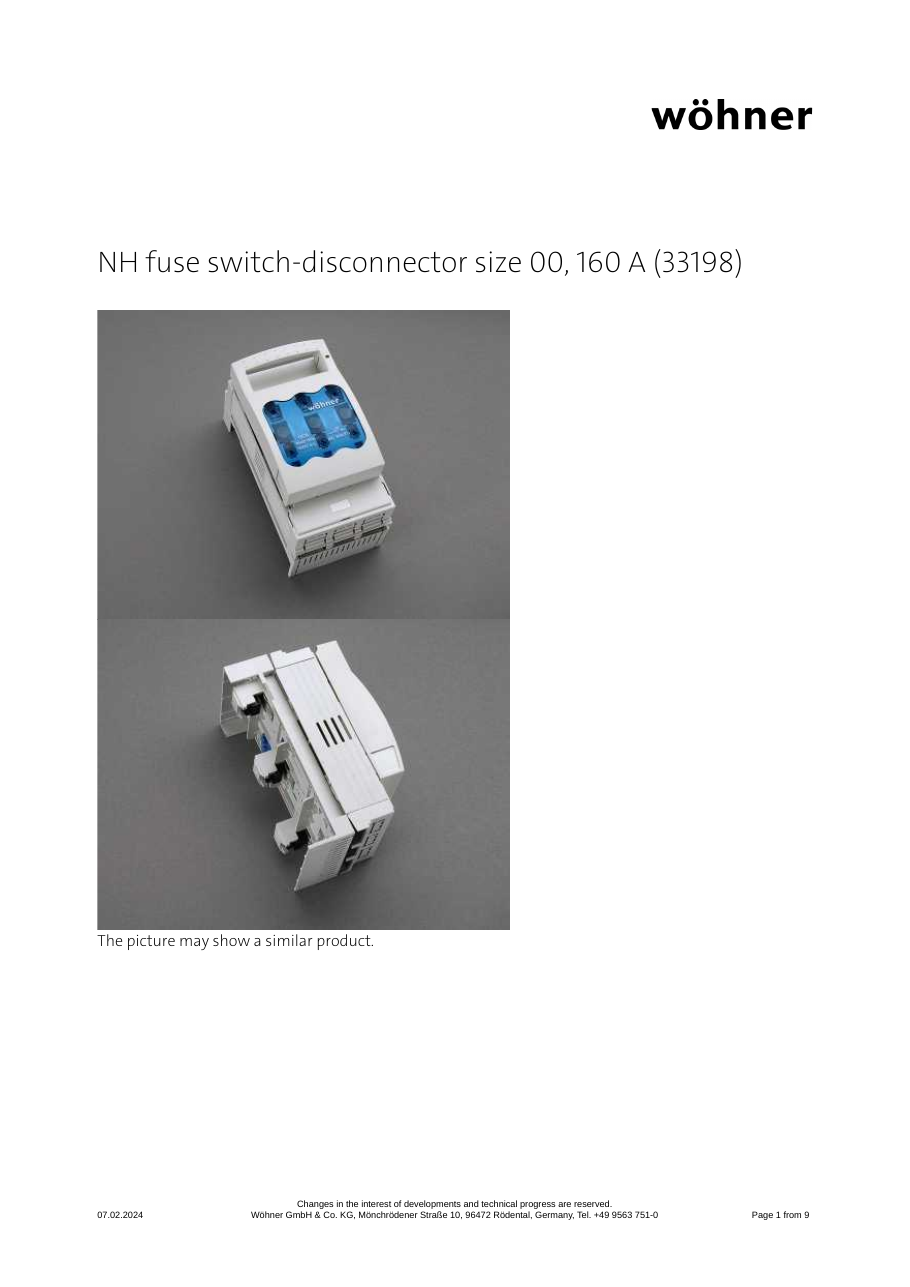

Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Drawing (3928b65addfa_S1-7 S. 1)
Drawing · 3928b65addfa_S1-7 · S. 1
Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Drawing (3928b65addfa_S1-7 S. 2)
Drawing · 3928b65addfa_S1-7 · S. 2

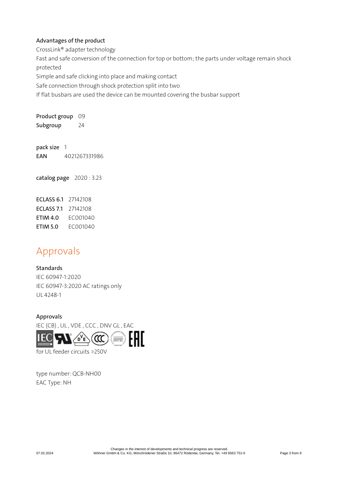

Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Drawing (3928b65addfa_S1-7 S. 3)
Drawing · 3928b65addfa_S1-7 · S. 3

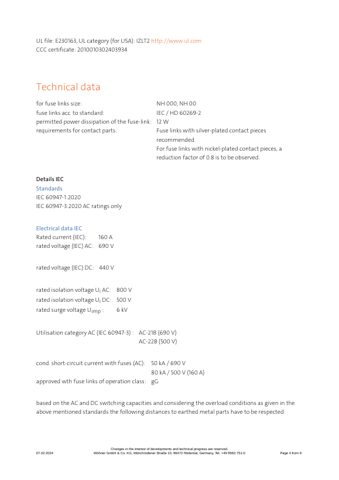

Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Page preview (3928b65addfa_S1-7 S. 4)
Page preview · 3928b65addfa_S1-7 · S. 4
Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Page preview (3928b65addfa_S1-7 S. 5)
Page preview · 3928b65addfa_S1-7 · S. 5

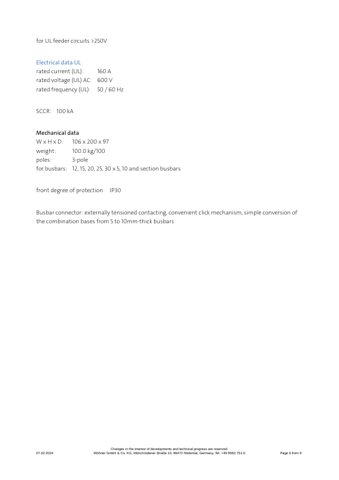

Wöhner GmbH & Co. KG Elektrotechnische Systeme QCB-NH00, QCB-NH000/00C – Page preview (3928b65addfa_S1-7 S. 6)
Page preview · 3928b65addfa_S1-7 · S. 6
Source: 00C, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAE00003W3
Open the certificate at DNV
