Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› KROHNE Pressure Solutions GmbH OPTIBAR DP 7060
KROHNE Pressure Solutions GmbH

OPTIBAR DP 7060

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
11...35Voltage

OPTIBAR DP 7060 by KROHNE Pressure Solutions GmbH. DNV TA certificate MRA0000044.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage11...35 VDC
Ambient temperature-40...+80 °C
Process temperature-40...+105 °C
Output signal4...20 mA
Degree of protectionIP66 / IP67
Max. output current21.5 mA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A versatile and robust differential pressure transmitter for process control.

Applications

  • pressure monitoring
  • level measurement
  • flow measurement
  • density and interface measurement

Features

  • outstanding temperature stability
  • very good repeatability and long-term stability
  • extremely quick step response times
  • combined DP, SP and T measurements
  • measuring ranges down to 10 mbar / 0.145 psi
  • universal modularity

Options

  • remote measured value indication
  • adjustments
  • diagnostics

Standards

  • IEC 60770-1
  • DIN EN 61298
  • EN 61326-1
Source: KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 datasheet, p. 9

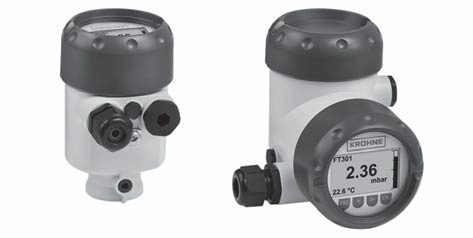

KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 3)
Photo · 944837bd6934_S3-52 · S. 3
KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 3)
Photo · 944837bd6934_S3-52 · S. 3

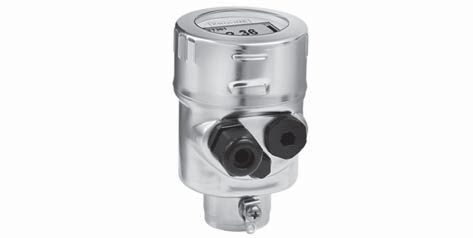

KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 4)
Photo · 944837bd6934_S3-52 · S. 4

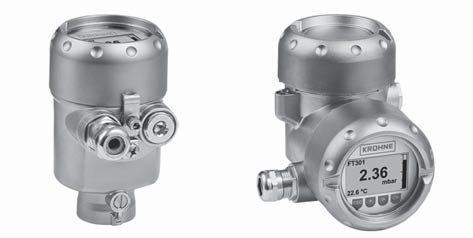

KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 4)
Photo · 944837bd6934_S3-52 · S. 4

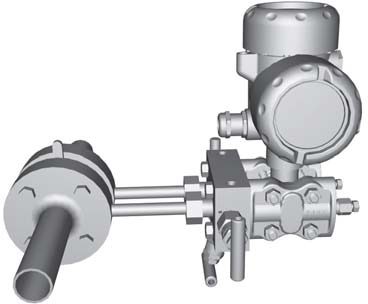

KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 34)
Photo · 944837bd6934_S3-52 · S. 34
KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 35)
Photo · 944837bd6934_S3-52 · S. 35
KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 36)
Photo · 944837bd6934_S3-52 · S. 36
KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 – Photo (944837bd6934_S3-52 S. 37)
Photo · 944837bd6934_S3-52 · S. 37
Source: KROHNE Pressure Solutions GmbH OPTIBAR DP 7060 datasheet, p. 3
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateMRA0000044
Open the certificate at DNV
