VOSS Fluid GmbH

VOSSLok40

Pipe Coupling · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified

VOSSLok40 by VOSS Fluid GmbH. DNV TA certificate TAP00001MD.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temperature range:Up to 200°C
Max. working press.:up to 50MPa
Sizes:6mm up to 22mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Pipe couplings of the VOSSLok40 type are designed for use in marine applications.

Applications

  • Installation on all vessels classed by DNV

Features

  • resistance to corrosion
  • erosion
  • oxidation
Source: VOSS Fluid GmbH VOSSLok40 datasheet, p. 4

Standards

  • DNV-RU-SHIP Rules Pt.4 Ch.6 Piping system
  • DIN EN 10088-3
  • DIN EN 10216-5
  • DIN EN 10305-1
Source: VOSS Fluid GmbH VOSSLok40 datasheet, p. 2

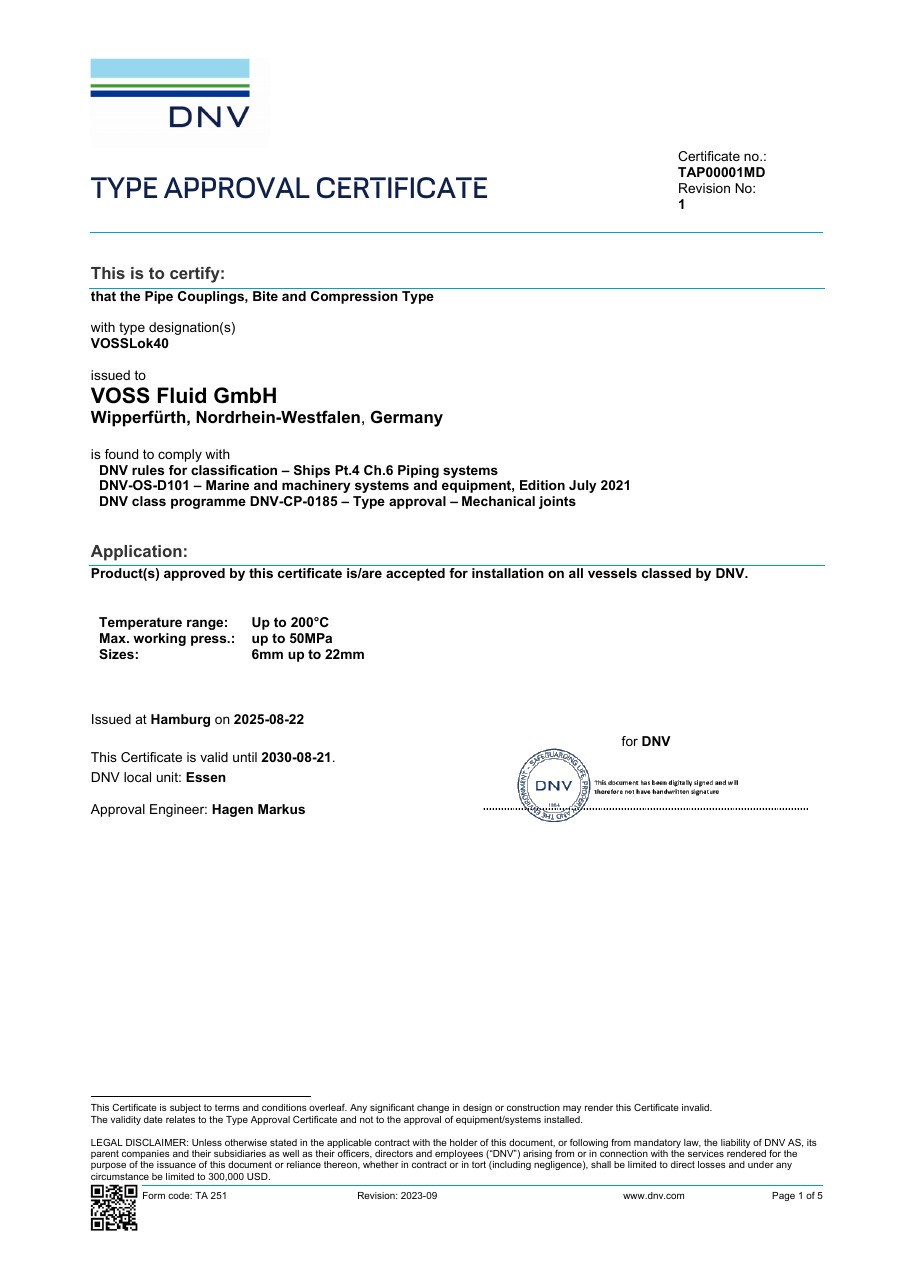

VOSS Fluid GmbH VOSSLok40 – Drawing (0c231a3a6754_S1-1 S. 1)
Drawing · 0c231a3a6754_S1-1 · S. 1

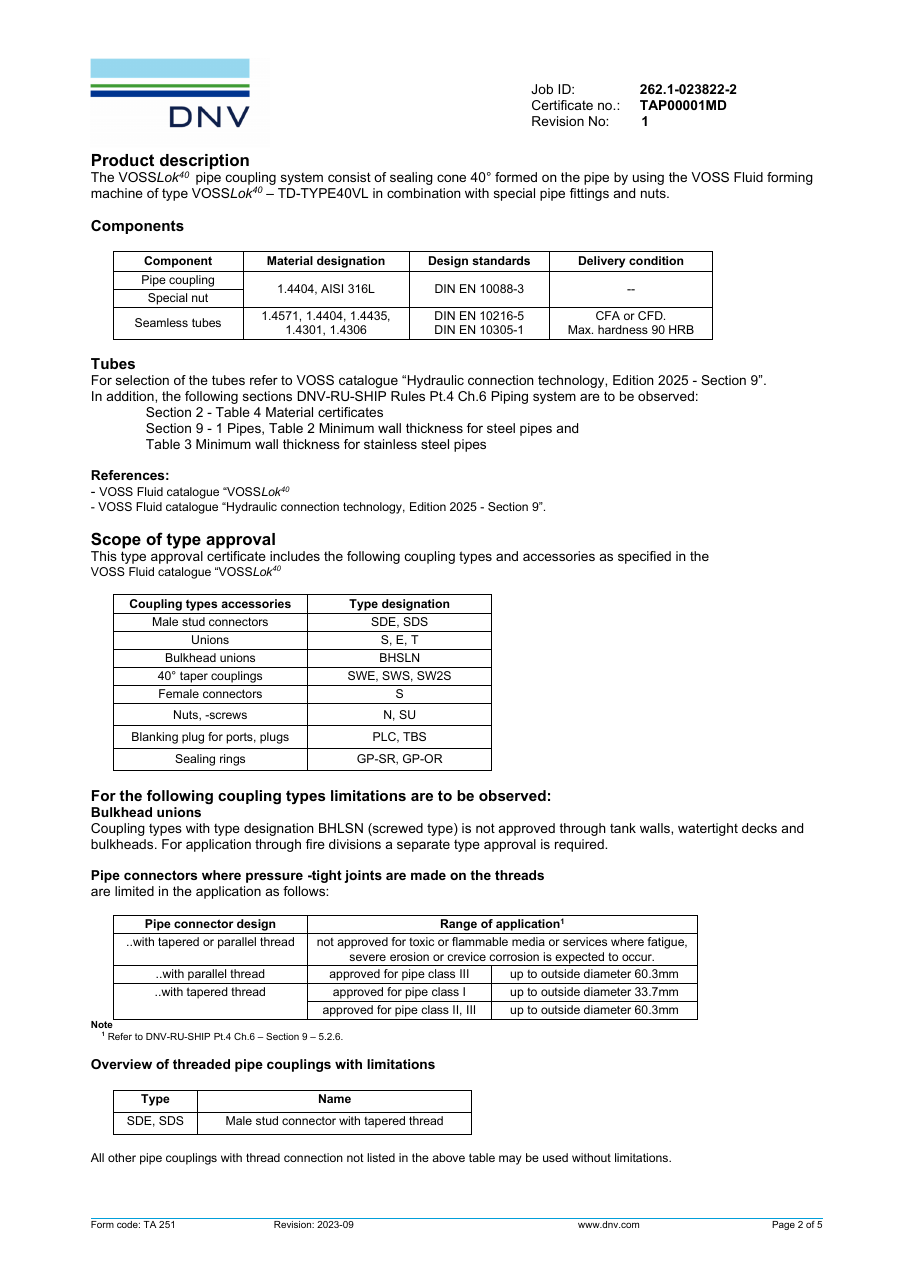

VOSS Fluid GmbH VOSSLok40 – Drawing (905d7a8e2c5a_S1-5 S. 2)
Drawing · 905d7a8e2c5a_S1-5 · S. 2

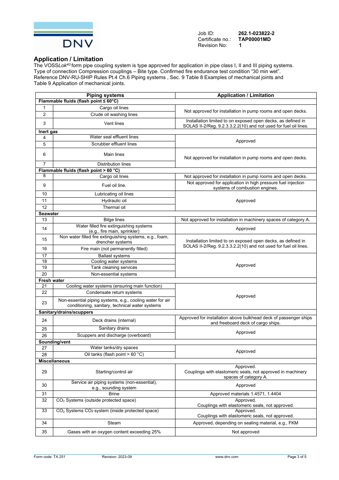

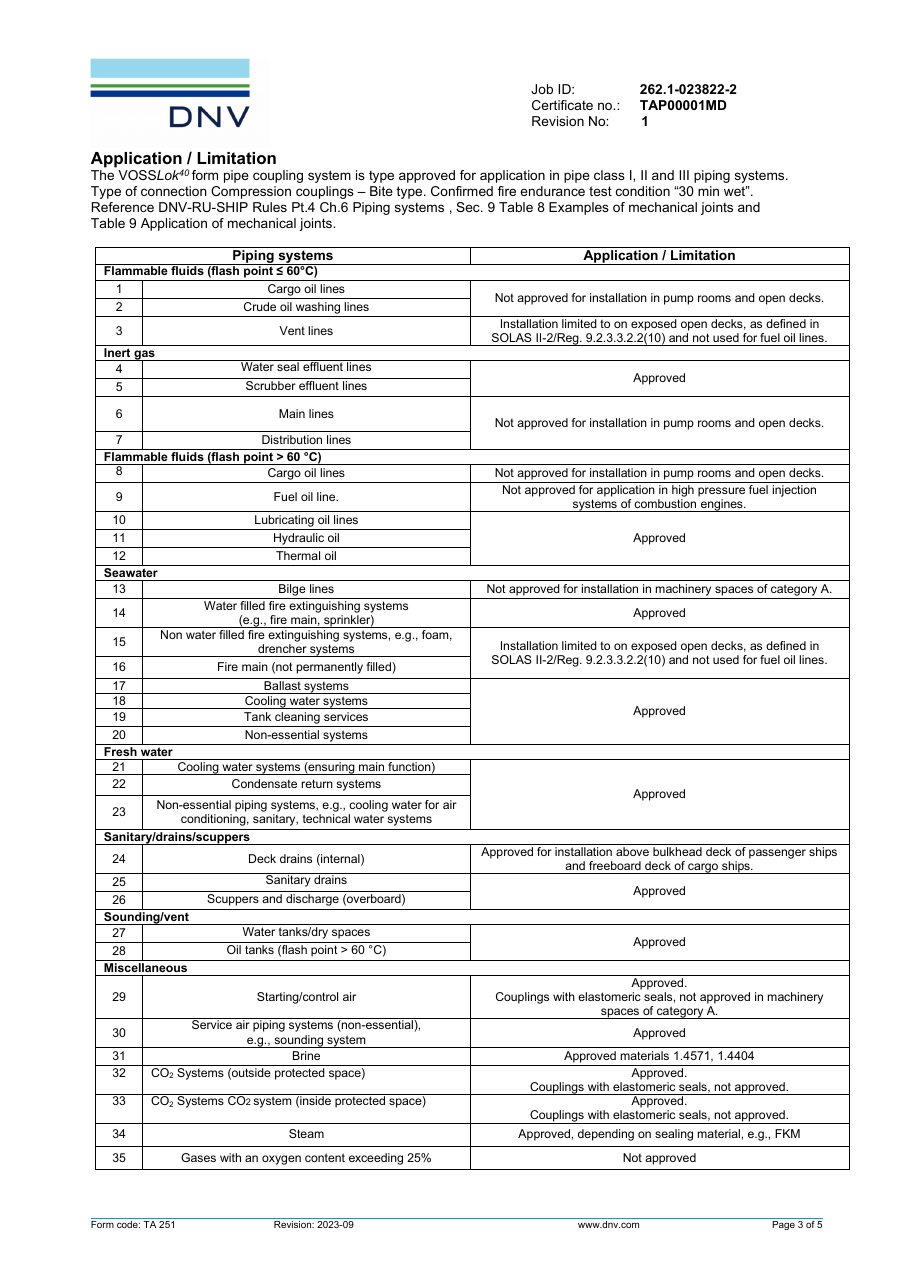

VOSS Fluid GmbH VOSSLok40 – Drawing (905d7a8e2c5a_S1-5 S. 3)
Drawing · 905d7a8e2c5a_S1-5 · S. 3

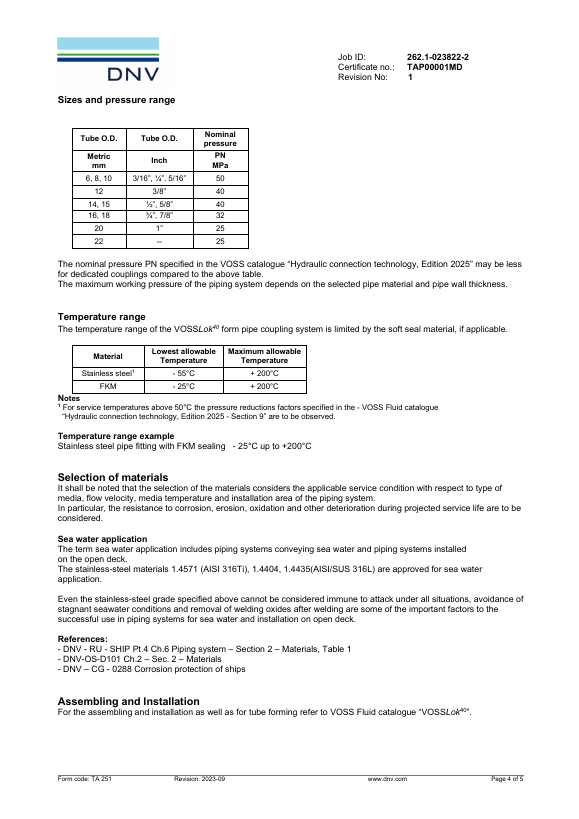

VOSS Fluid GmbH VOSSLok40 – Page preview (905d7a8e2c5a_S1-5 S. 4)
Page preview · 905d7a8e2c5a_S1-5 · S. 4

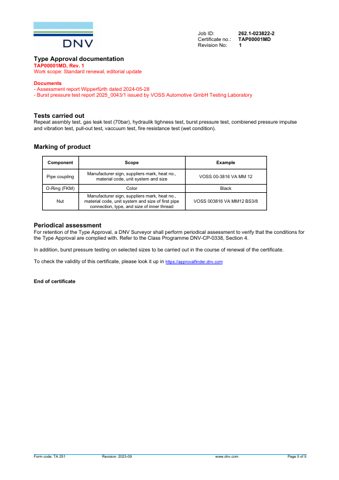

VOSS Fluid GmbH VOSSLok40 – Page preview (905d7a8e2c5a_S1-5 S. 5)
Page preview · 905d7a8e2c5a_S1-5 · S. 5
Source: VOSS Fluid GmbH VOSSLok40 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAP00001MD
Open the certificate at DNV
