Library› Engine Room› Welding Consumables› General Welding Consumables› Hyundai Welding (Kunshan) Co., Ltd. Supercored 70MXH / C1
Hyundai Welding (Kunshan) Co., Ltd.

Supercored 70MXH / C1

General Welding Consumables · Welding Consumables

Class-certified type (DNV register) · technical data sheet not yet verified

Supercored 70MXH / C1 by Hyundai Welding (Kunshan) Co., Ltd. DNV TA certificate TAW00000TV.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Yield strength (1.4 mm)565 MPa
Tensile strength (1.4 mm)620 MPa

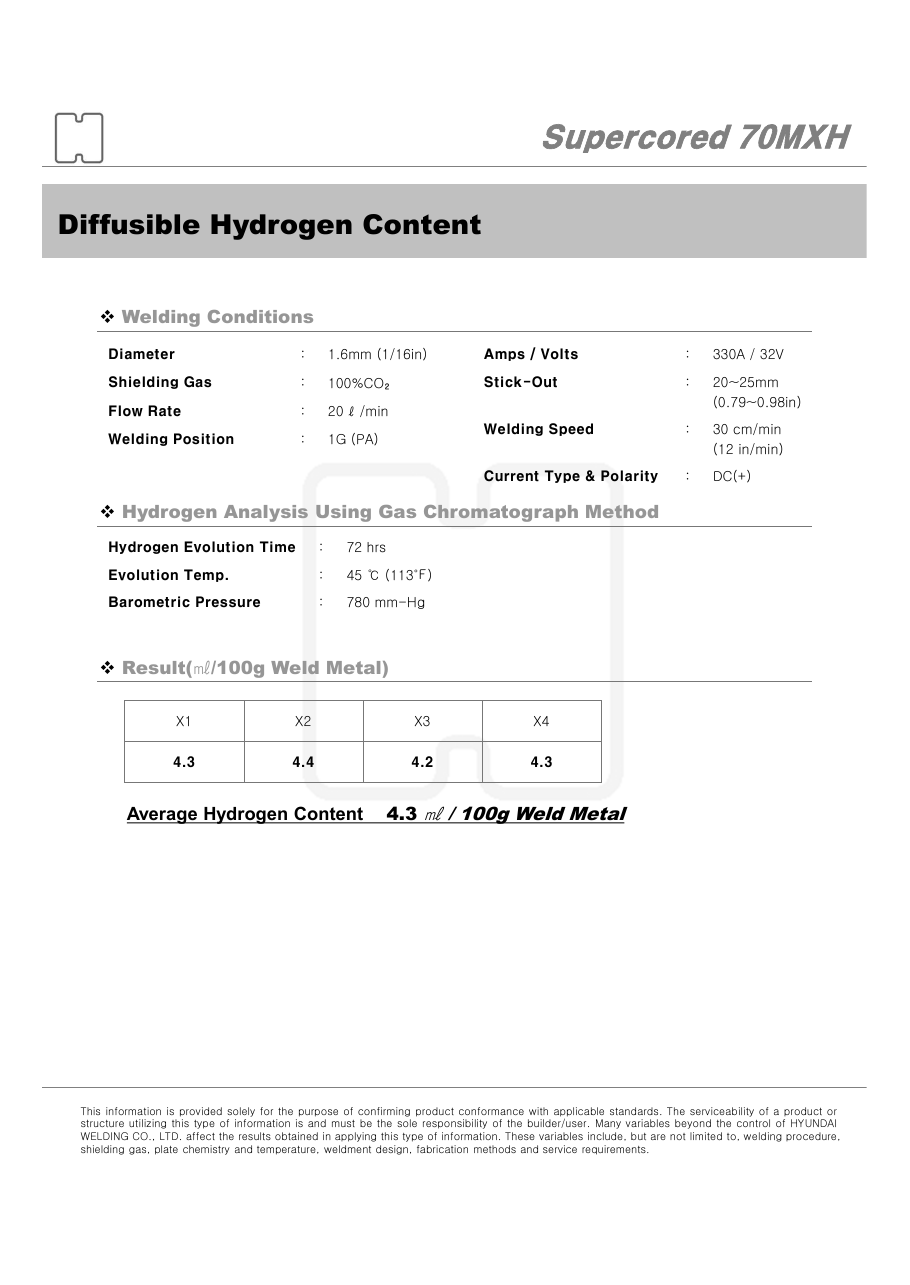

Average diffusible hydrogen content4.3 ml/100g weld metal
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Welding consumable for marine applications, conforming to AWS A5.36 E70T1-C1A2-CS1 standards.

Applications

  • marine welding

Features

  • 1G(PA) position
  • 1.4mm diameter

Standards

  • AWS A5.36
  • E70T1-C1A2-CS1

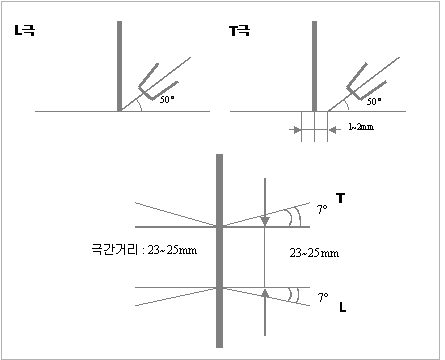

Hyundai Welding (Kunshan) Co., Ltd. Supercored 70MXH / C1 – Photo (96cb080cb2ca_S3-7 S. 5)
Photo · 96cb080cb2ca_S3-7 · S. 5

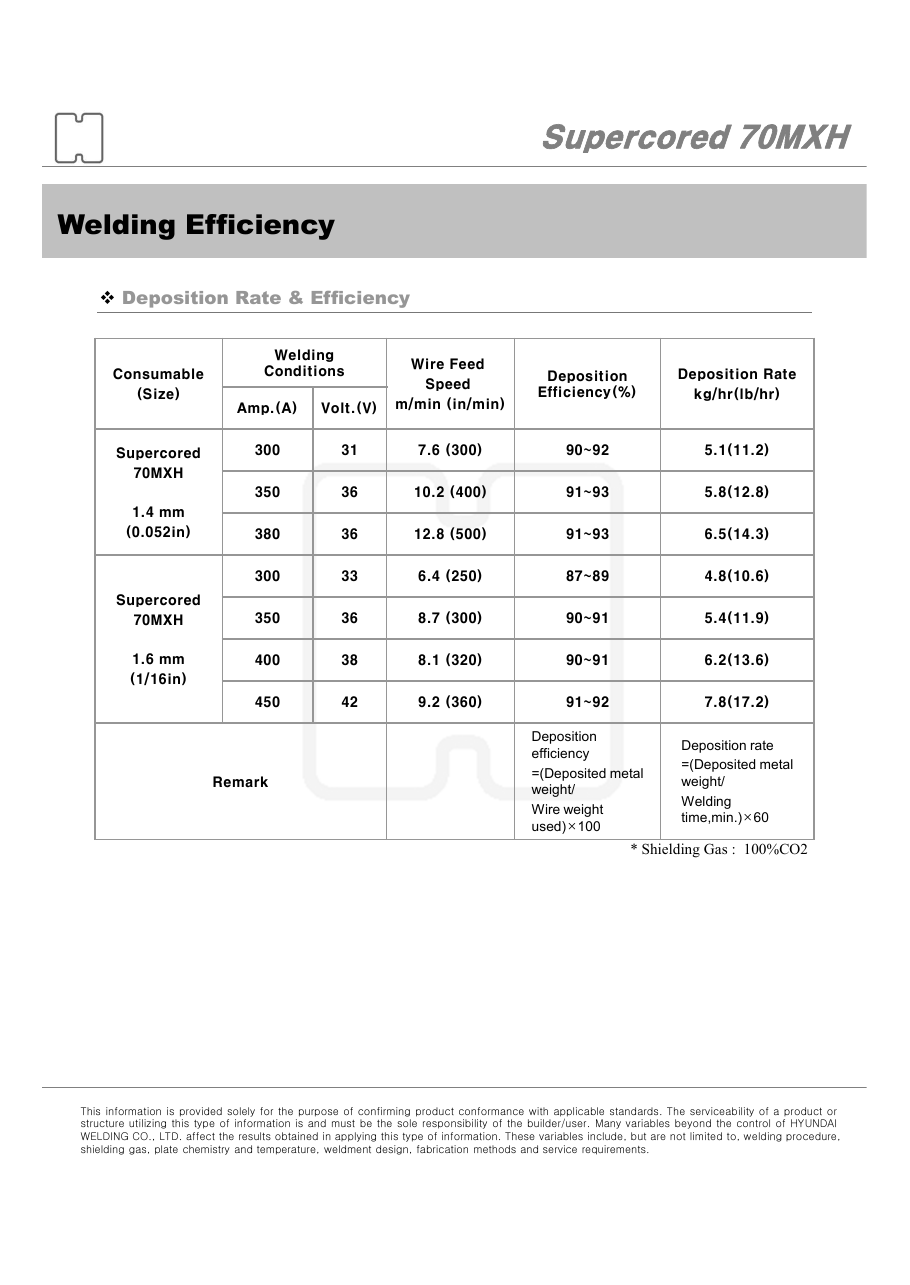

Hyundai Welding (Kunshan) Co., Ltd. Supercored 70MXH / C1 – Drawing (96cb080cb2ca_S3-7 S. 3)
Drawing · 96cb080cb2ca_S3-7 · S. 3

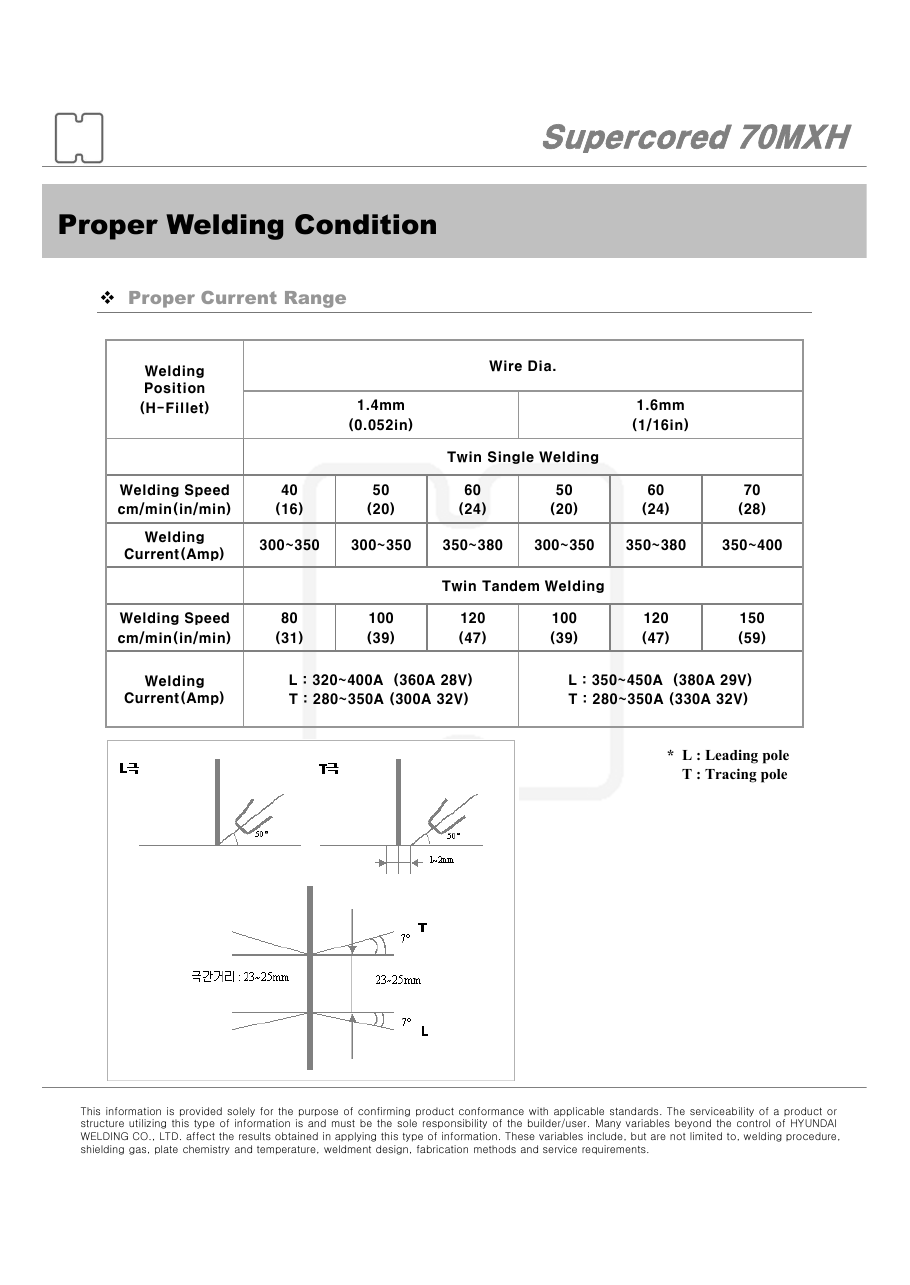

Hyundai Welding (Kunshan) Co., Ltd. Supercored 70MXH / C1 – Drawing (96cb080cb2ca_S3-7 S. 4)
Drawing · 96cb080cb2ca_S3-7 · S. 4
Hyundai Welding (Kunshan) Co., Ltd. Supercored 70MXH / C1 – Drawing (96cb080cb2ca_S3-7 S. 5)
Drawing · 96cb080cb2ca_S3-7 · S. 5
Source: C1 datasheet, p. 3
