Library› Engine Room› Auxiliary Engines› Lifeboat Engine› Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT
Yanmar Power Technology Co., Ltd. Tsukaguchi Factory

6CXBM-GT

Lifeboat Engine · Auxiliary Engines

Class-certified type (DNV register) · technical data sheet not yet verified

6CXBM-GT by Yanmar Power Technology Co., Ltd. Tsukaguchi Factory. DNV MED certificate MEDB00001KB.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

No. of cylinders, Bore × stroke mm6 in-line, 110×130
Displacement7.413 lit.
Rated outputM: 294 ( 400 ) / 2500 H: 265 ( 360 ) / 2400 kW (hp) / min-1 (rpm )
Fuel consumptionM: 210 ( at rated output ) H: 209 ( at rated output ) gr / kW・hr
Cooling fresh water capacity40.5 + 3.4 ( reservoir tank ) lit.
IMO ApprovedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A marine diesel engine designed for marine applications, featuring a turbo-charged intercooled system.

Applications

  • marine propulsion
  • auxiliary power

Features

  • turbo-charged intercooled
  • forced lubrication
  • direct injection
  • IMO Tier II compliant

Standards

  • IMO Tier II

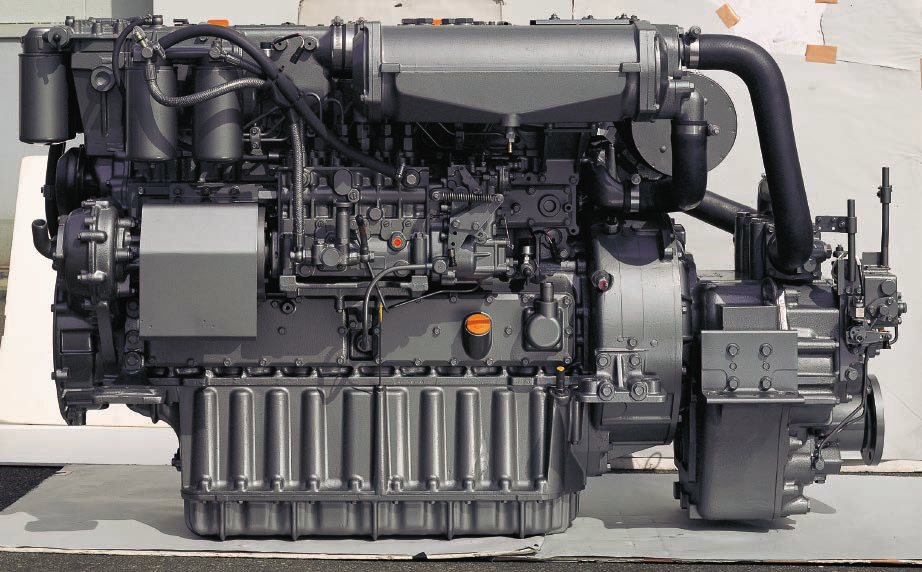

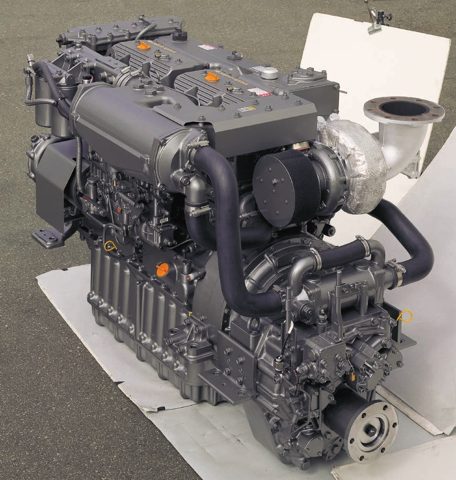

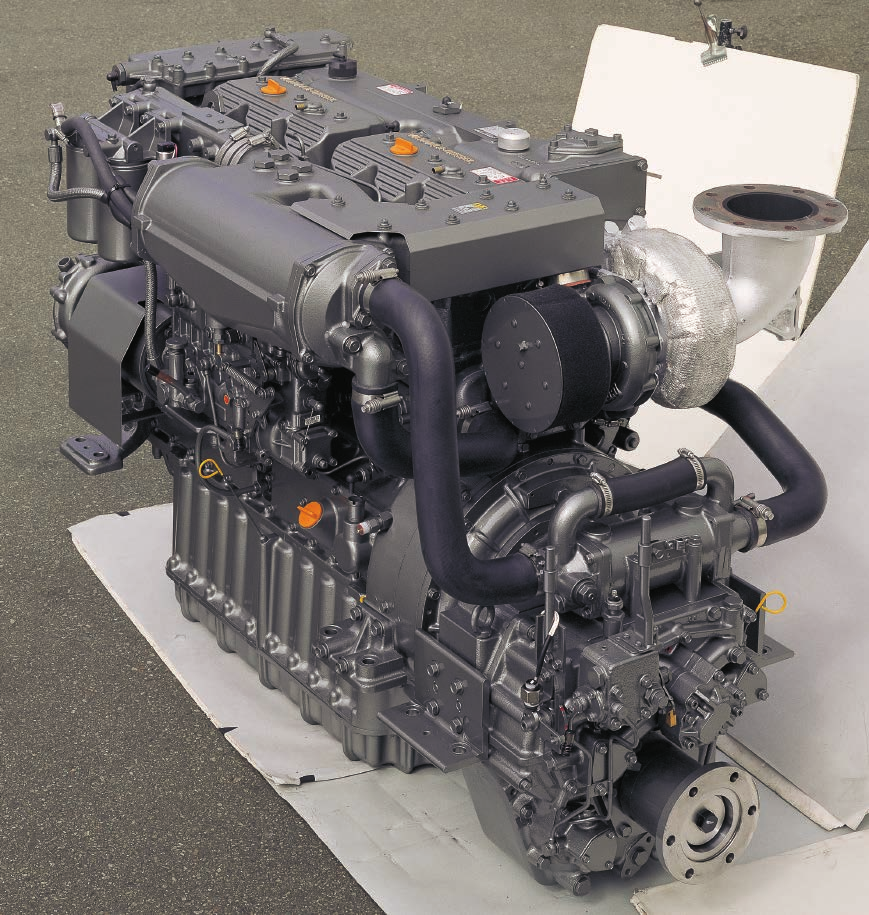

Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT – Photo (5cde6a12429d_S1-1 S. 1)
Photo · 5cde6a12429d_S1-1 · S. 1

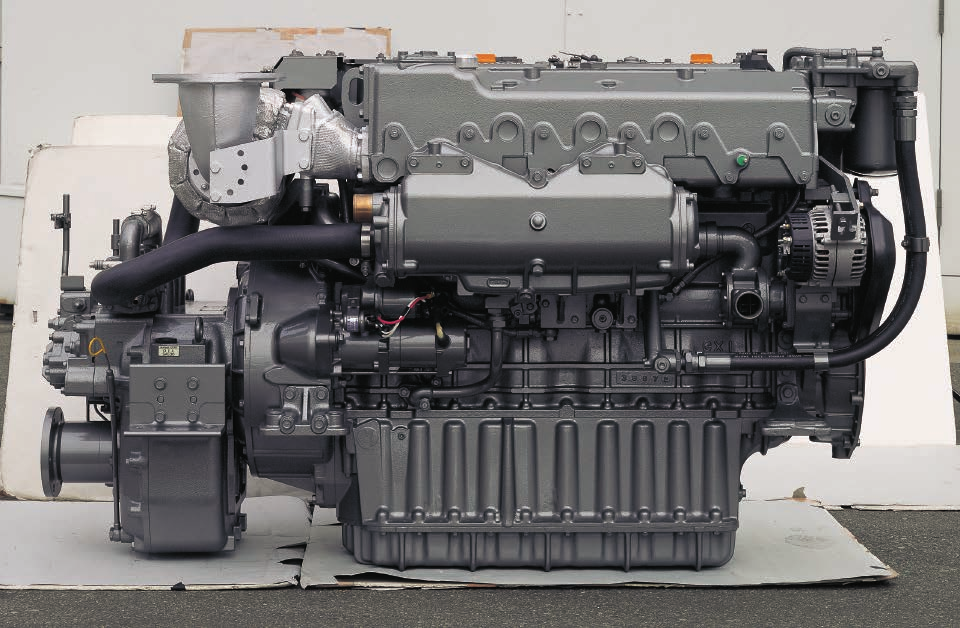

Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT – Photo (a78281bf34c4_S1-2 S. 2)
Photo · a78281bf34c4_S1-2 · S. 2
Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT – Photo (a78281bf34c4_S1-2 S. 2)
Photo · a78281bf34c4_S1-2 · S. 2
Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT – Photo (a78281bf34c4_S1-2 S. 2)
Photo · a78281bf34c4_S1-2 · S. 2
Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT – Drawing (5cde6a12429d_S1-1 S. 1)
Drawing · 5cde6a12429d_S1-1 · S. 1
Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT – Drawing (a78281bf34c4_S1-2 S. 2)
Drawing · a78281bf34c4_S1-2 · S. 2

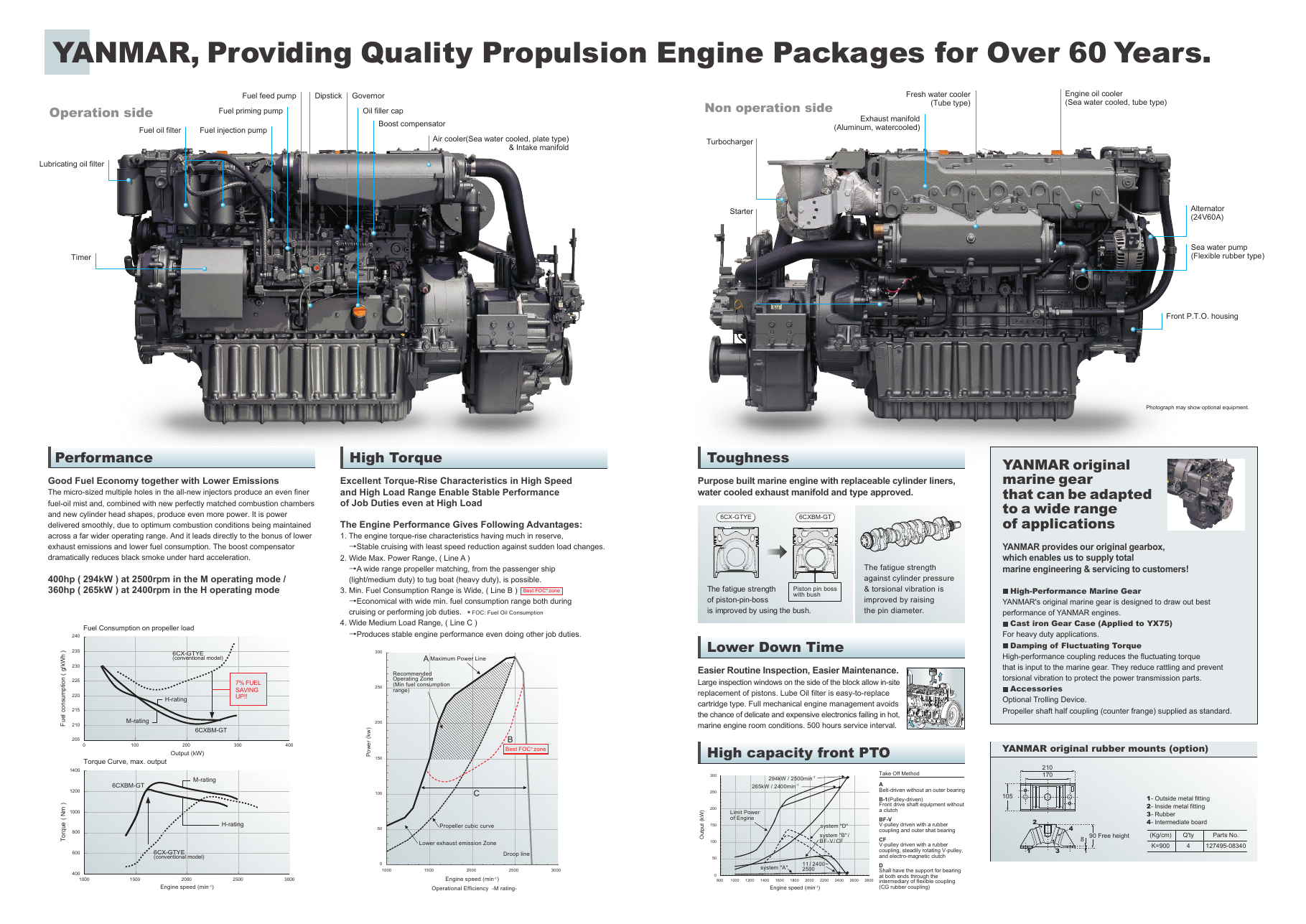

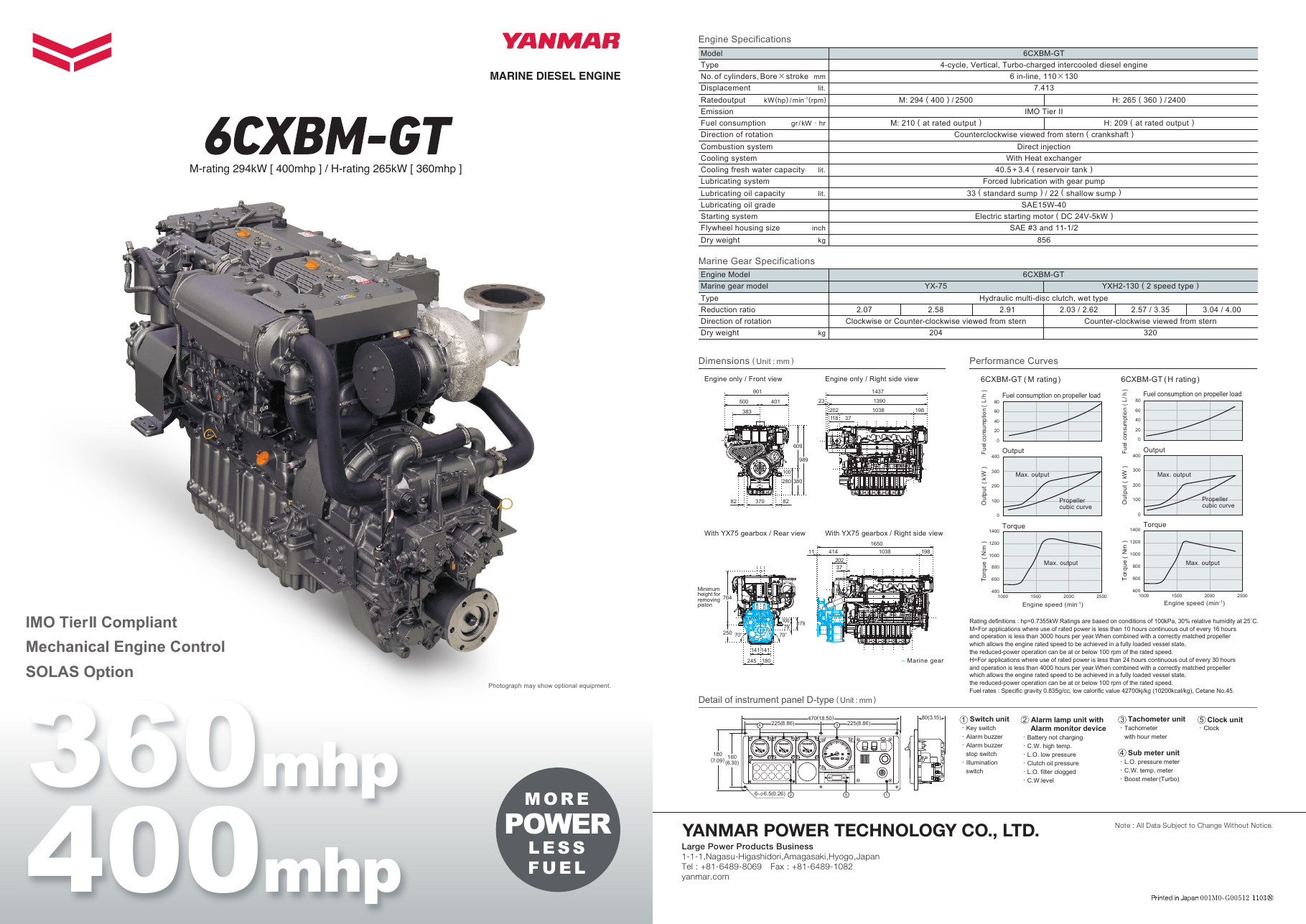

Source: Yanmar Power Technology Co., Ltd. Tsukaguchi Factory 6CXBM-GT datashee, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateMEDB00001KB
Open the certificate at DNV
