Library› Safety & LSA› Fixed Fire Suppression› Foam Fire System› SABO FOAM S.r.l. UNIVEX 3-3 M
SABO FOAM S.r.l.

UNIVEX 3-3 M

Foam Fire System · Fixed Fire Suppression

Class-certified type (DNV register) · technical data sheet not yet verified

UNIVEX 3-3 M by SABO FOAM S.r.l. DNV MED certificate MEDB00003MA.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Densidad1,14 ± 0,02 g/ml
Viscosidad10,0 ± 2,0 cSt
Punto de fluidez≤ -15 °C
Punto de congelación≤ -18 °C
Viscosidad*10,0 ± 2,0 cSt
Sedimento**≤ 0,25 %
Tasa de dosificación3%
25 % del tiempo de drenaje (min:seg)≥ 5:00
50 % del tiempo de drenaje (min:seg)≥ 9:00
IMO ApprovedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

UNIVEX 3-3 M FPAR is a fluoroprotein-resistant foam concentrate that effectively suppresses fires involving hydrocarbons and polar solvents (Class B).

Applications

  • Incendios de combustibles tipo hidrocarburos
  • Incendios de disolventes polares

Features

  • Bloquea el suministro de oxígeno al combustible
  • Produce un efecto refrigerante

Standards

  • EN 1568:2008
  • IMO MSC.1/ Circ. 1312
  • MED Módulos B y D

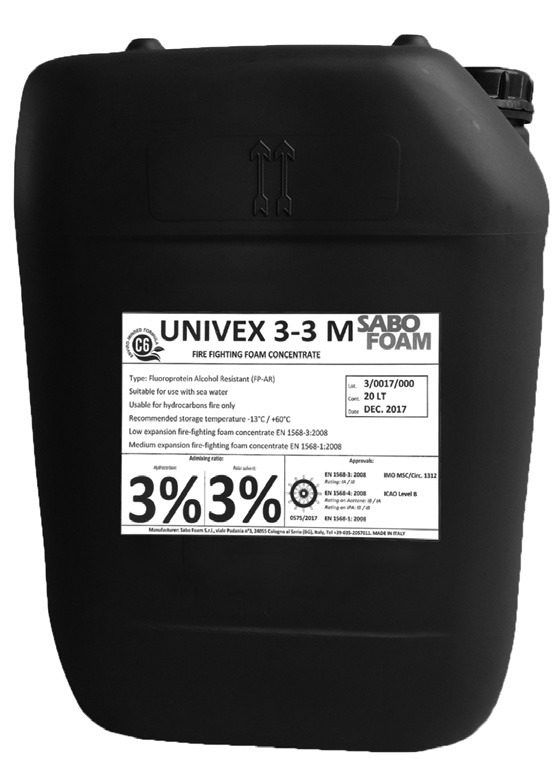

SABO FOAM S.r.l. UNIVEX 3-3 M – Photo (689766751976_S1-2 S. 1)
Photo · 689766751976_S1-2 · S. 1

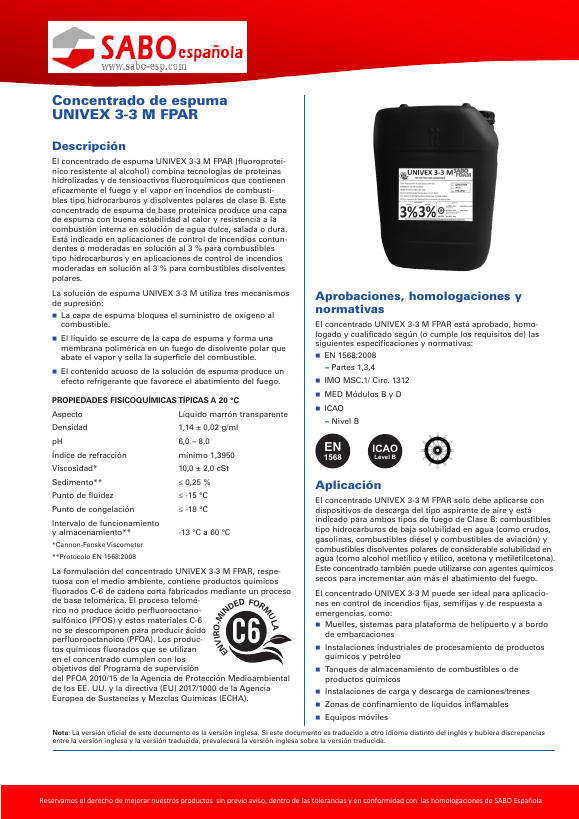

SABO FOAM S.r.l. UNIVEX 3-3 M – Page preview (689766751976_S1-2 S. 1)
Page preview · 689766751976_S1-2 · S. 1

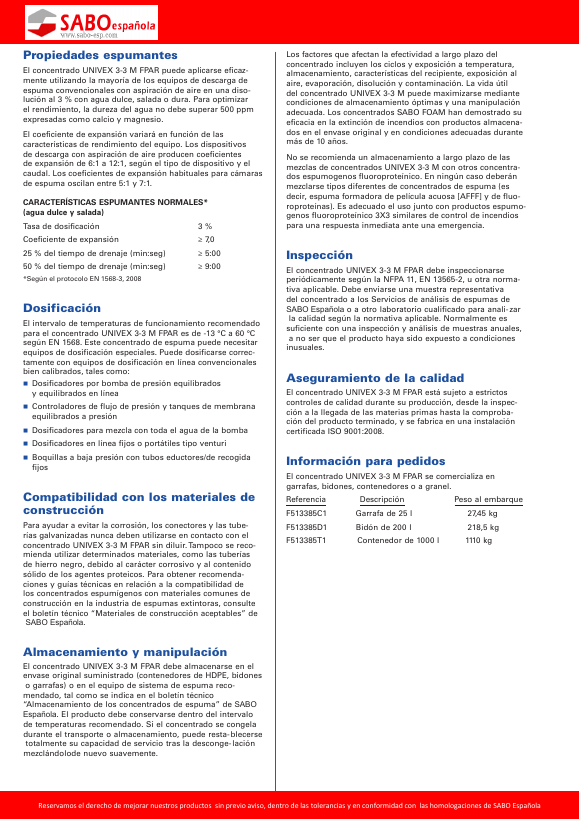

SABO FOAM S.r.l. UNIVEX 3-3 M – Page preview (689766751976_S1-2 S. 2)
Page preview · 689766751976_S1-2 · S. 2
Source: SABO FOAM S.r.l. UNIVEX 3-3 M datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateMEDB00003MA
Open the certificate at DNV
