Library› Navigation› Signaling & Visual› Searchlight› Francis Searchlights FR560RC
Francis Searchlights

FR560RC

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Lamp life 2Kw400 hours
Lamp life 1Kw750 hours
Operational temperature-20°C
Weight60 Kg
Variable Rotation Speed (Pan)1 to 20°/sec
Pan rotation385°
Supply115/240v
L/holder PartGX9.5 A2474
Volts Range PBCP Div* Watts Lamp115v 1550 2450 5 1000 GX9.5
Searchlight weight65kgs
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The FR560RC is a high-quality, compact remote control searchlight suitable for use on patrol craft, custom vessels, and general marine applications.

Applications

  • patrol craft
  • custom vessels
  • general marine applications

Features

  • variable speed control
  • modern joystick control panel
  • membrane and LED technology
  • bus control protocol
  • IP67 gearbox sealing
  • IP56 searchlight sealing

Options

  • computer control software
  • azimuth LED control panel
  • master control panel
  • slave control panels
  • fiber optic/TCP/IP connections
  • FLIR thermal camera

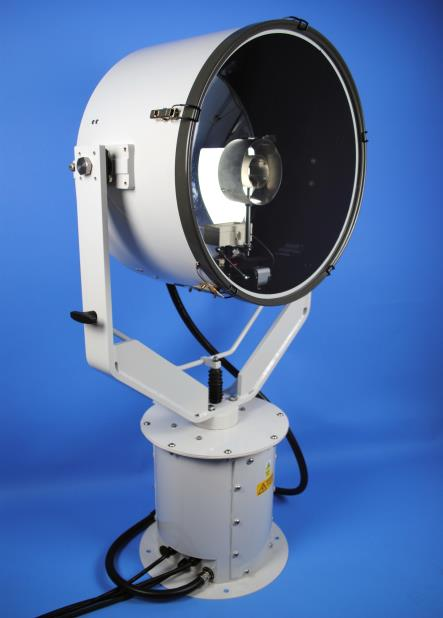

Francis Searchlights FR560RC – Photo (b757b9557591_S1-1 S. 1)
Photo · b757b9557591_S1-1 · S. 1

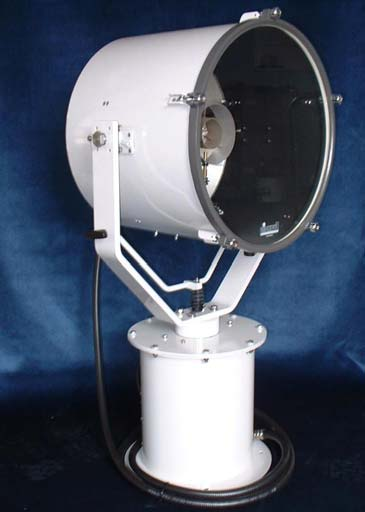

Francis Searchlights FR560RC – Photo (40c7ce3b207a_S1-1 S. 1)
Photo · 40c7ce3b207a_S1-1 · S. 1

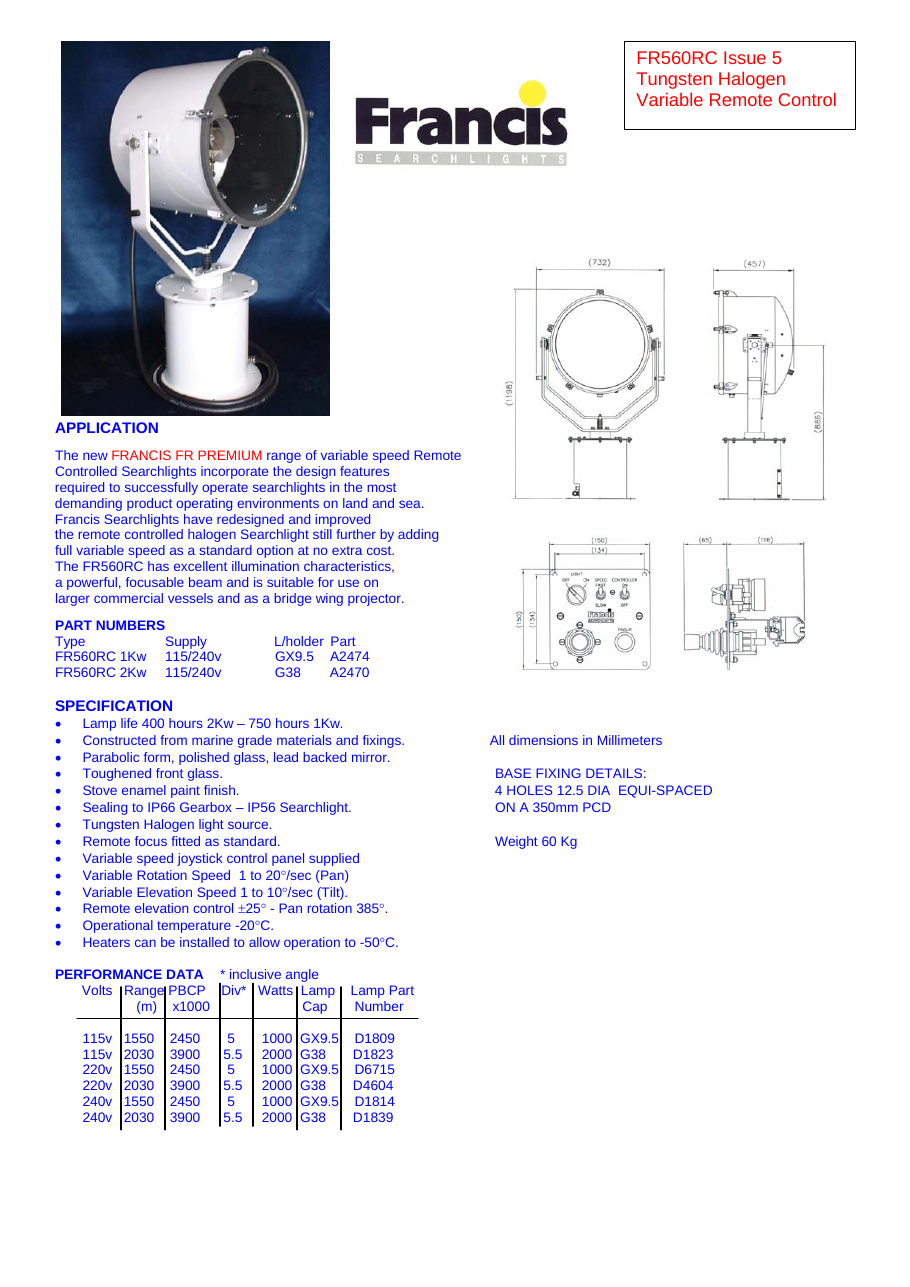

Francis Searchlights FR560RC – Drawing (b757b9557591_S1-1 S. 1)
Drawing · b757b9557591_S1-1 · S. 1

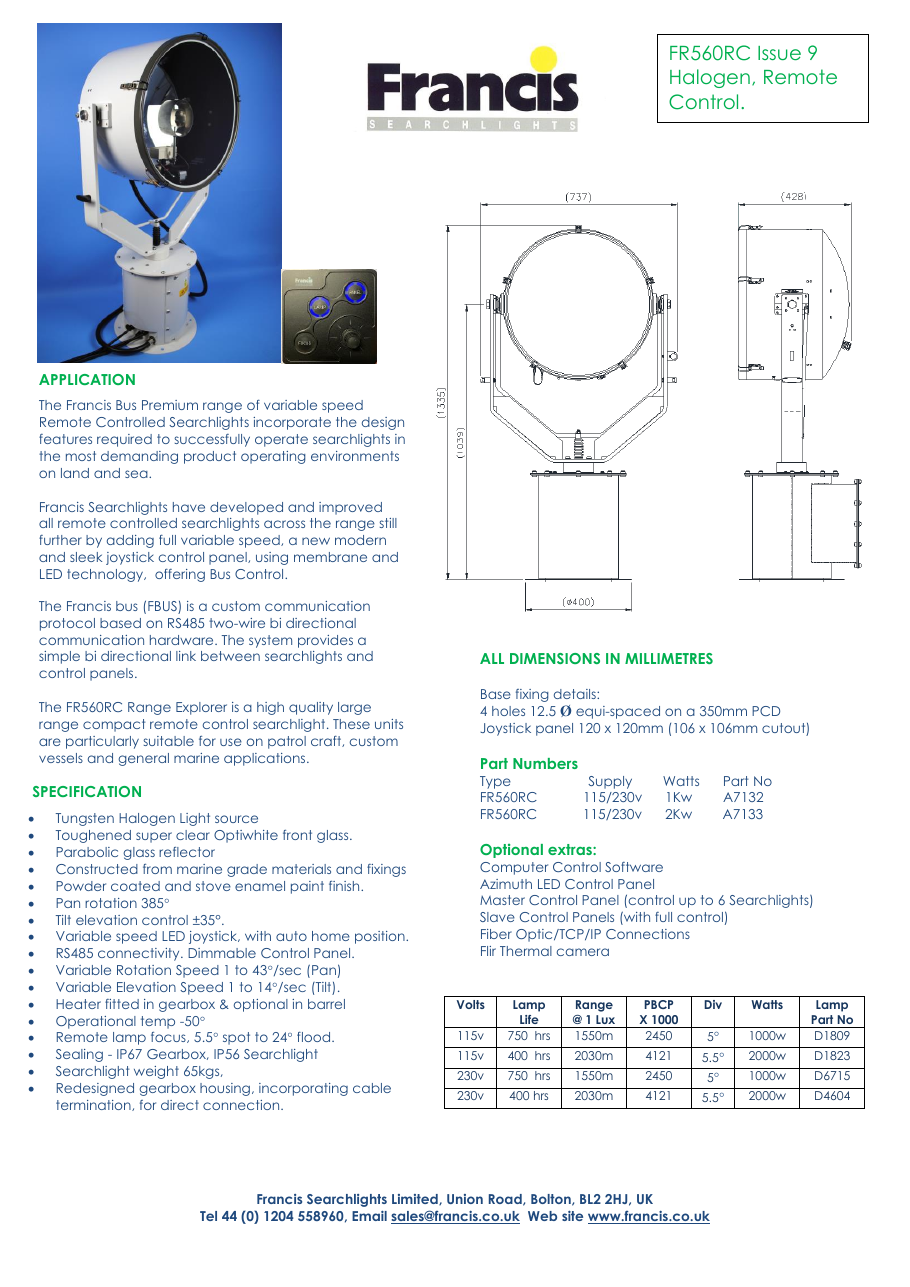

Francis Searchlights FR560RC – Drawing (40c7ce3b207a_S1-1 S. 1)
Drawing · 40c7ce3b207a_S1-1 · S. 1
Source: francissearchlights FR560RC datasheet, p. 1
