ifm electronic

CR1084

HMI Panel & Industrial Computer · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

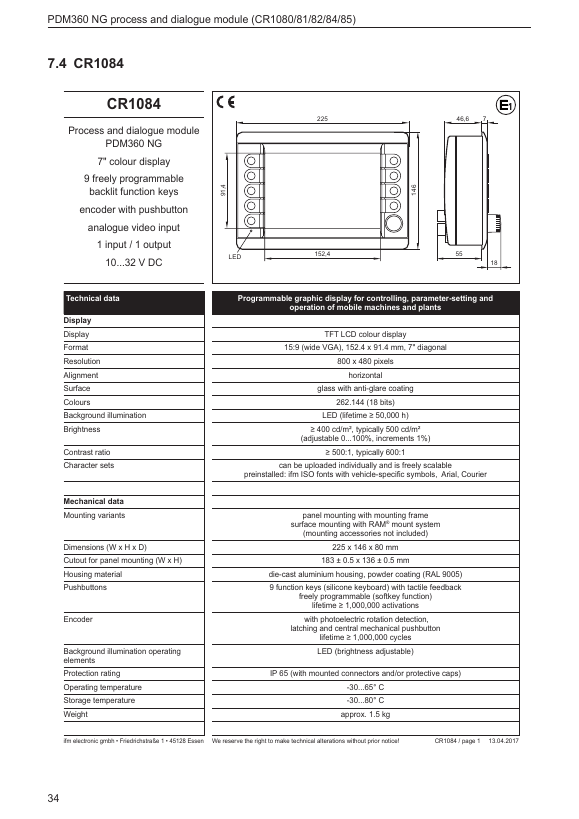

Format15:9 (wide VGA), 152�4 x 91�4 mm, 7" diagonal
Resolution800 x 480 pixels
Colours262�144 (18 bits)
Background illuminationLED (lifetime ≥ 50,000 h)
Brightness≥ 400 cd/m², typically 500 cd/m²
Contrast ratio≥ 500:1, typically 600:1
Dimensions (W x H x D)225 x 146 x 80 mm
Cutout for panel mounting (W x H)183 ± 0�5 x 136 ± 0�5 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“5.3.1 Voltage supply of the switching output via clamp 30 As from the following device statuses the switching output is supplied via clamp 30. The output can still switch even if the ignition voltage…”

ifm electronic CR1084 – Drawing (5cfc158c1677_S15-38 S. 15)
Drawing · 5cfc158c1677_S15-38 · S. 15
ifm electronic CR1084 – Drawing (5cfc158c1677_S15-38 S. 17)
Drawing · 5cfc158c1677_S15-38 · S. 17
ifm electronic CR1084 – Drawing (5cfc158c1677_S15-38 S. 18)
Drawing · 5cfc158c1677_S15-38 · S. 18
ifm electronic CR1084 – Page preview (5cfc158c1677_S15-38 S. 16)
Page preview · 5cfc158c1677_S15-38 · S. 16

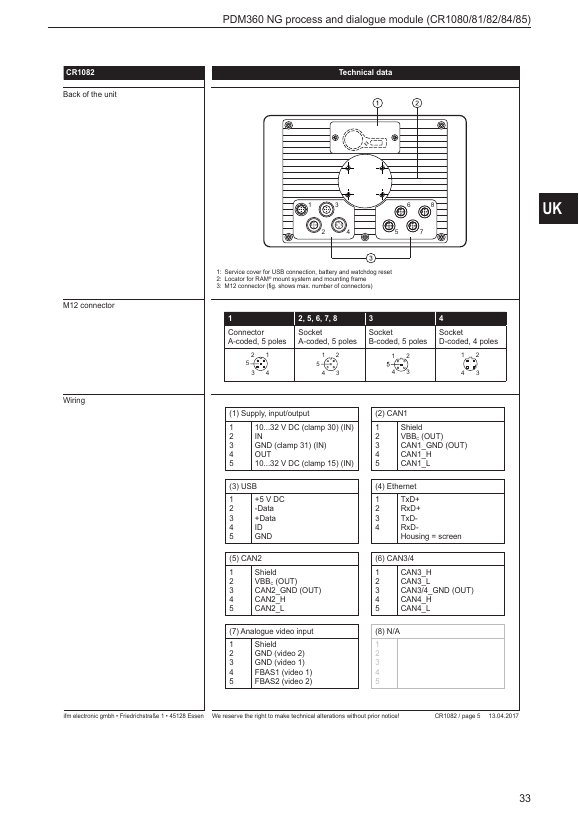

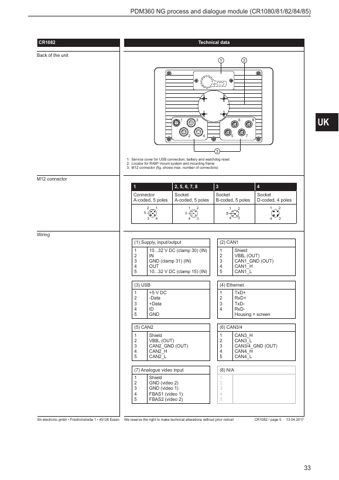

ifm electronic CR1084 – Page preview (5cfc158c1677_S15-38 S. 19)
Page preview · 5cfc158c1677_S15-38 · S. 19
ifm electronic CR1084 – Page preview (5cfc158c1677_S15-38 S. 20)
Page preview · 5cfc158c1677_S15-38 · S. 20
ifm electronic CR1084 – Page preview (5cfc158c1677_S15-38 S. 21)
Page preview · 5cfc158c1677_S15-38 · S. 21
Source: ifm electronic CR1084 datasheet, p. 1
