Reichle & De-Massari

FM45 EL Cat. 6A Plug, Standard & Slim Version

Industrial Connector · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Approved solid wire Ø0.4 mm – 0.61 mm AWG 26 – AWG 22
Approved stranded wire Ø0.12 mm2 - 0.32 mm2 AWG 26/7 – AWG 22/7
Approved wire insulation cable Ømax. 1.60 mm
Overall cable Ø5.0 mm – 9.0 mm
Re-termination≥4 IEC 60352-4
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“This document was prepared the greatest possible care and reflects the current state of technology at the time of printing. Subject to corrections and technical changes. © 2023 Reichle & De-Massari AG”

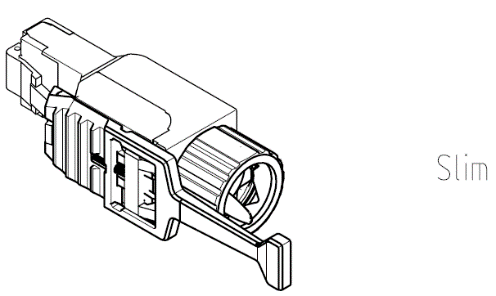

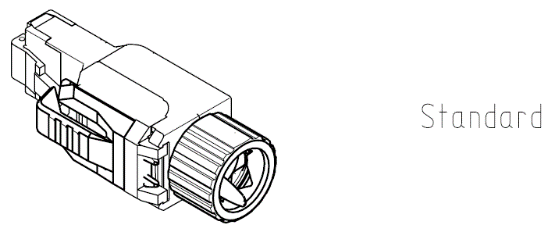

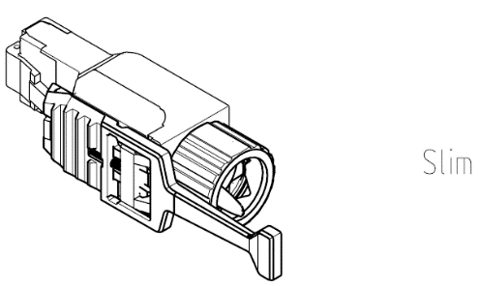

Reichle & De-Massari FM45 EL Cat. 6A Plug, Standard & Slim Version – Photo (869adaa32961_S2-3 S. 2)
Photo · 869adaa32961_S2-3 · S. 2
Reichle & De-Massari FM45 EL Cat. 6A Plug, Standard & Slim Version – Photo (869adaa32961_S2-3 S. 2)
Photo · 869adaa32961_S2-3 · S. 2
Reichle & De-Massari FM45 EL Cat. 6A Plug, Standard & Slim Version – Photo (869adaa32961_S2-3 S. 2)
Photo · 869adaa32961_S2-3 · S. 2
Reichle & De-Massari FM45 EL Cat. 6A Plug, Standard & Slim Version – Photo (869adaa32961_S2-3 S. 2)
Photo · 869adaa32961_S2-3 · S. 2

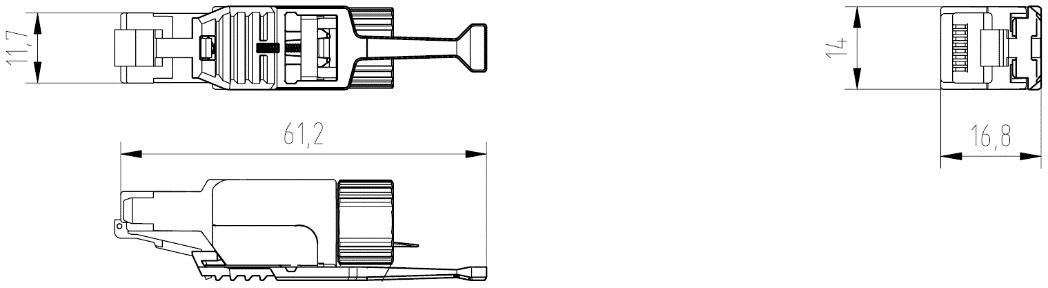

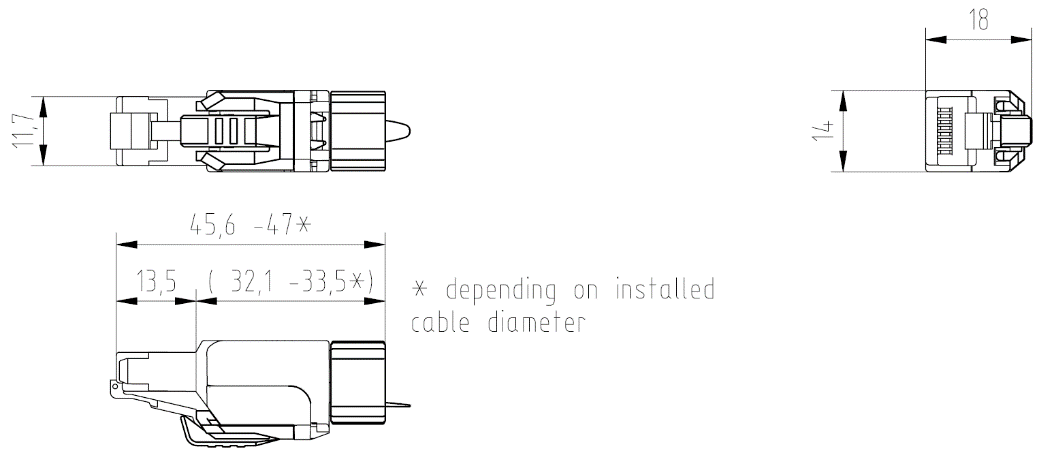

Reichle & De-Massari FM45 EL Cat. 6A Plug, Standard & Slim Version – Drawing (869adaa32961_S2-3 S. 2)
Drawing · 869adaa32961_S2-3 · S. 2

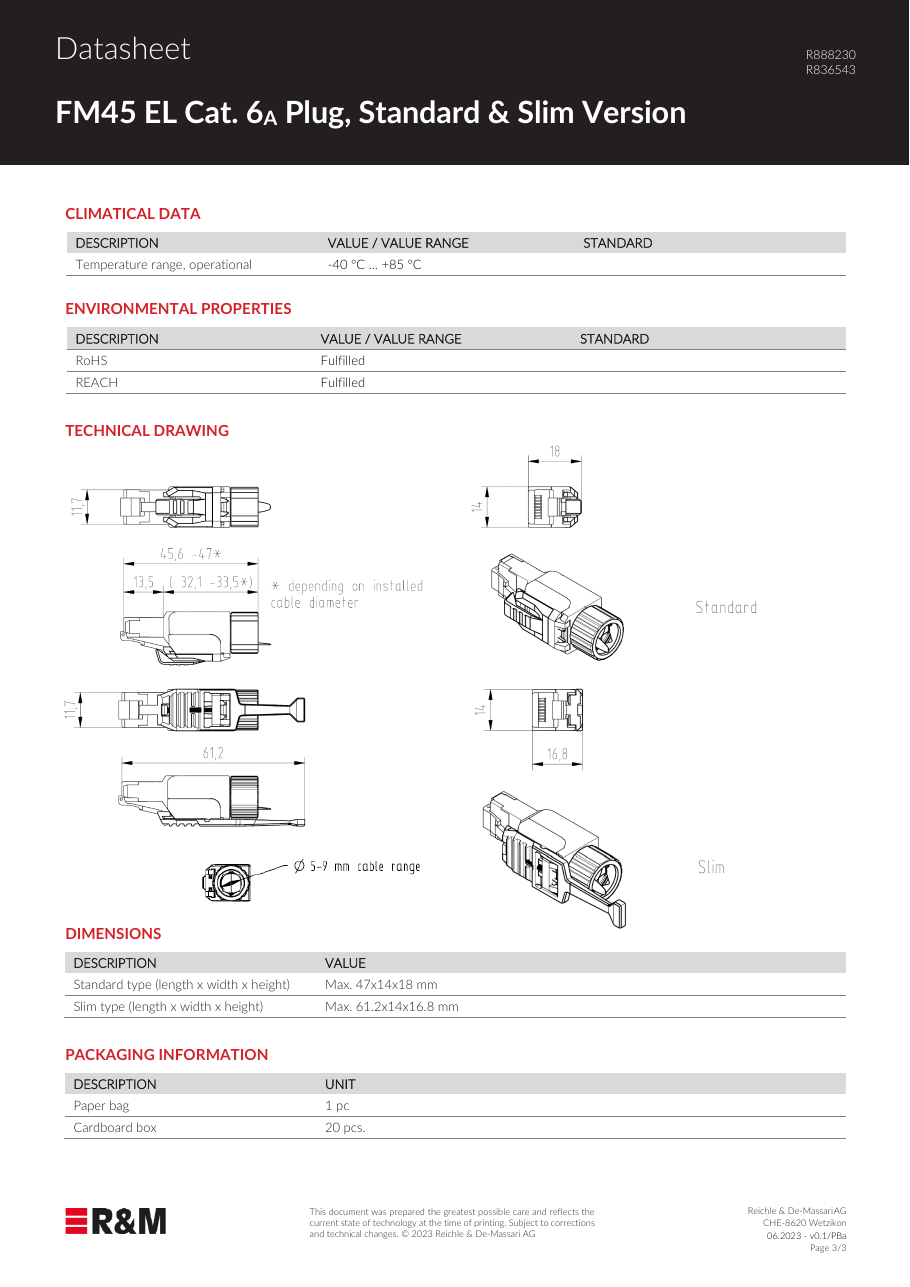

Source: Reichle & De-Massari FM45 EL Cat. 6A Plug, Standard & Slim Version dat, p. 1
