Library› Electrical› Instrumentation & Gauges› Pressure Gauge› Nuova Fima MGS20
Nuova Fima

MGS20

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Lower Connection21M - G 1/4 A
Back Connection23M - 1/4-18 NPT

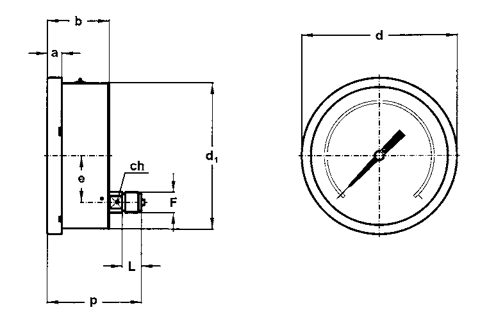

A0.39" inches
B1.57" inches
C0.65" inches
D2.67" inches
D12.46" inches
H2.13" - 2.17" inches
P0.51" inches
L0.44 lbs
Ch0.2 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“E - Front flange, for back connection pressure gauges P01 - Suitable for filling with silicone/Fluorinated fluid P02 - Oxygen service S10 - Silicone filling F30 - Fluorinated fluid filling”

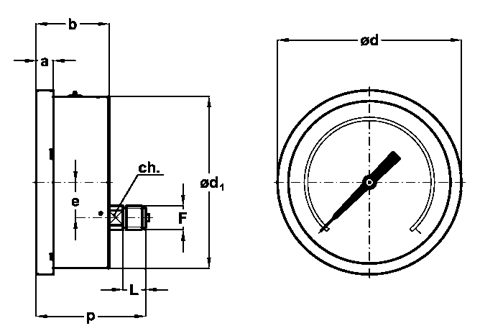

Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 31)
Photo · 06f438b04e29_S30-97 · S. 31

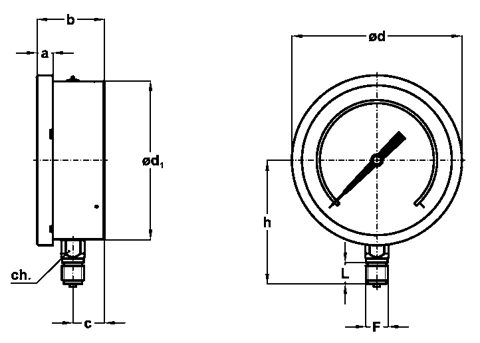

Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 31)
Photo · 06f438b04e29_S30-97 · S. 31
Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 31)
Photo · 06f438b04e29_S30-97 · S. 31

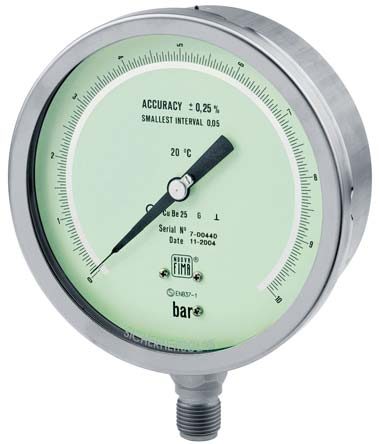

Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 32)
Photo · 06f438b04e29_S30-97 · S. 32

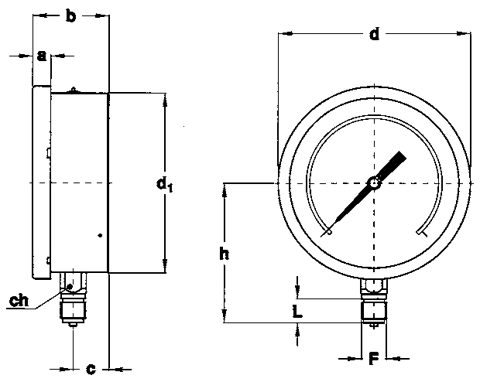

Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 33)
Photo · 06f438b04e29_S30-97 · S. 33

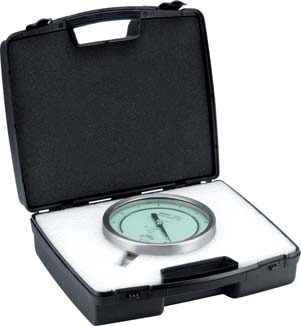

Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 33)
Photo · 06f438b04e29_S30-97 · S. 33
Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 33)
Photo · 06f438b04e29_S30-97 · S. 33

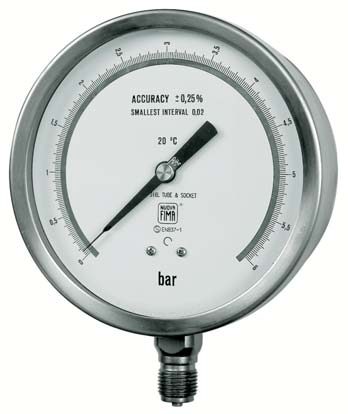

Nuova Fima MGS20 – Photo (06f438b04e29_S30-97 S. 34)
Photo · 06f438b04e29_S30-97 · S. 34
Source: Nuova Fima MGS20 datasheet, p. 1
