speccodexnpk

GH7

Hydraulic Component (General) · Deck Machinery Hydraulics

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Hydraulic Component (General) — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

IMPACT ENERGY2,500 ft. lb.
IMPACT FREQUENCY400 – 750 bpm
WORKING WEIGHT2,900 lbs.
TOOL DIA.4.6 in.
TOOL LENGTH23.0 in.
OIL FLOW26 – 48 gpm
HYDRAULIC OPERATING PRESSURE2,600 psi
MINIMUM CIRCUIT RELIEF3,100 psi
NITROGEN GAS PRE-CHARGE AT AMBIENT TEMPERATURE350 psi
NITROGEN GAS PRE-CHARGE AT OPERATING TEMPERATURE405 psi
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“HAMMER SPECIFICATIONS HAMMER MODEL GH7 GH9 GH10 GH12 GH15 GH18 GH23 GH30 GH40 GH50 HAMMER MODEL GH7 GH9 GH10 GH12 GH15 GH18 GH23 GH30 GH40 GH50”

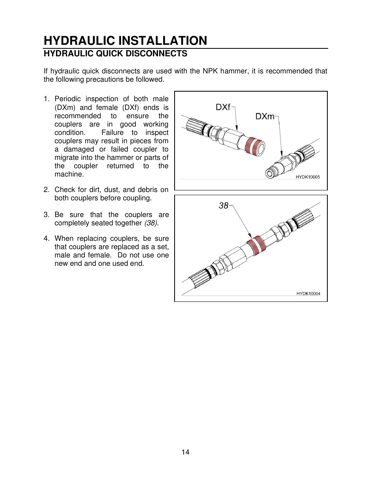

speccodexnpk GH7 – Drawing (e2b96507d747_S8-59 S. 8)
Drawing · e2b96507d747_S8-59 · S. 8

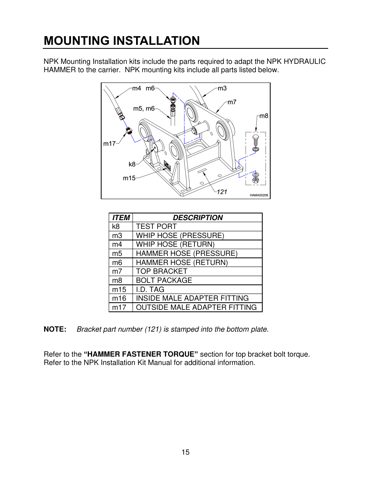

speccodexnpk GH7 – Drawing (e2b96507d747_S8-59 S. 9)
Drawing · e2b96507d747_S8-59 · S. 9

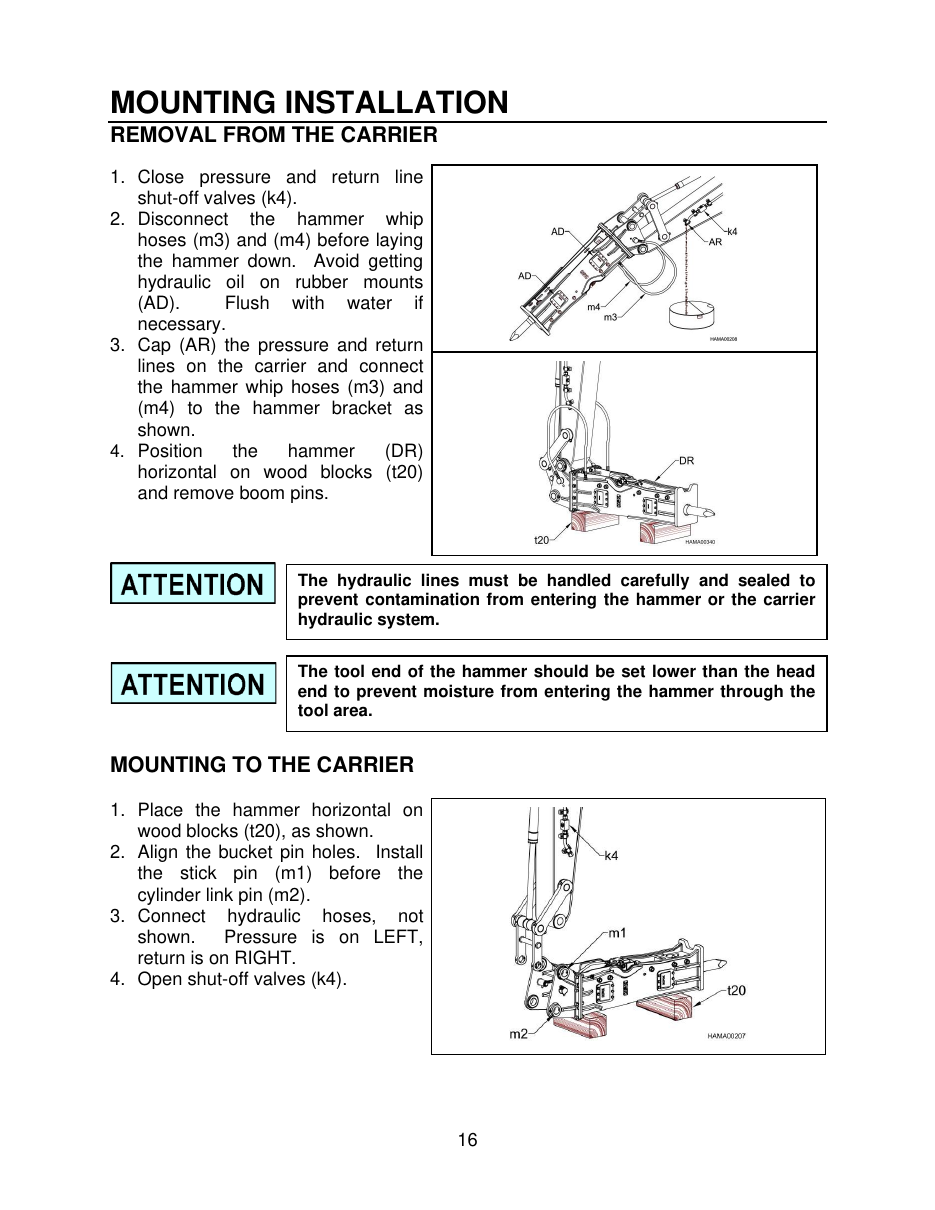

speccodexnpk GH7 – Drawing (e2b96507d747_S8-59 S. 10)
Drawing · e2b96507d747_S8-59 · S. 10

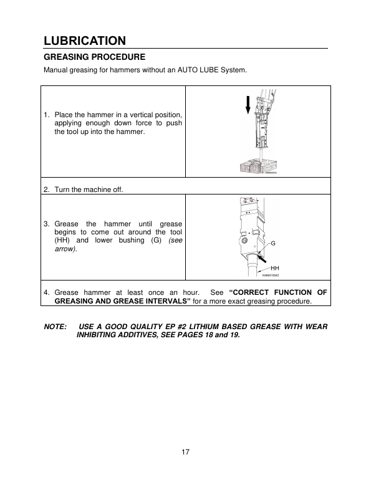

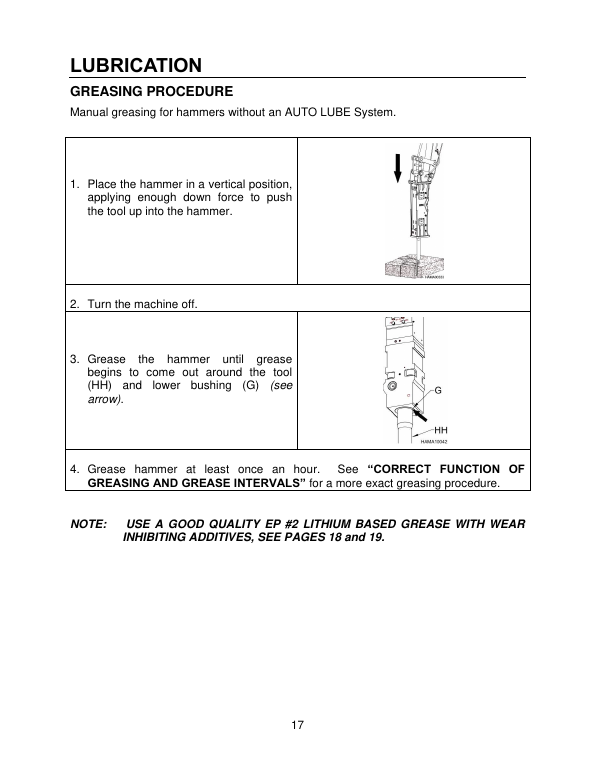

speccodexnpk GH7 – Page preview (e2b96507d747_S8-59 S. 11)
Page preview · e2b96507d747_S8-59 · S. 11

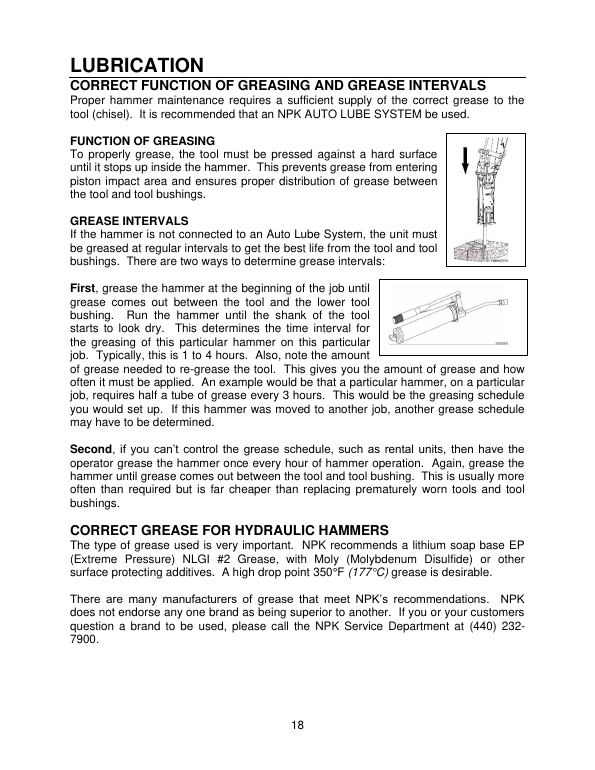

speccodexnpk GH7 – Page preview (e2b96507d747_S8-59 S. 12)
Page preview · e2b96507d747_S8-59 · S. 12

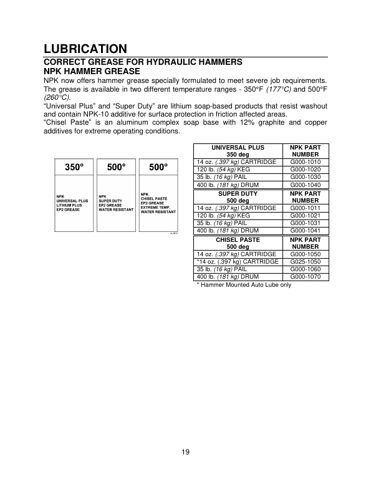

speccodexnpk GH7 – Page preview (e2b96507d747_S8-59 S. 13)
Page preview · e2b96507d747_S8-59 · S. 13

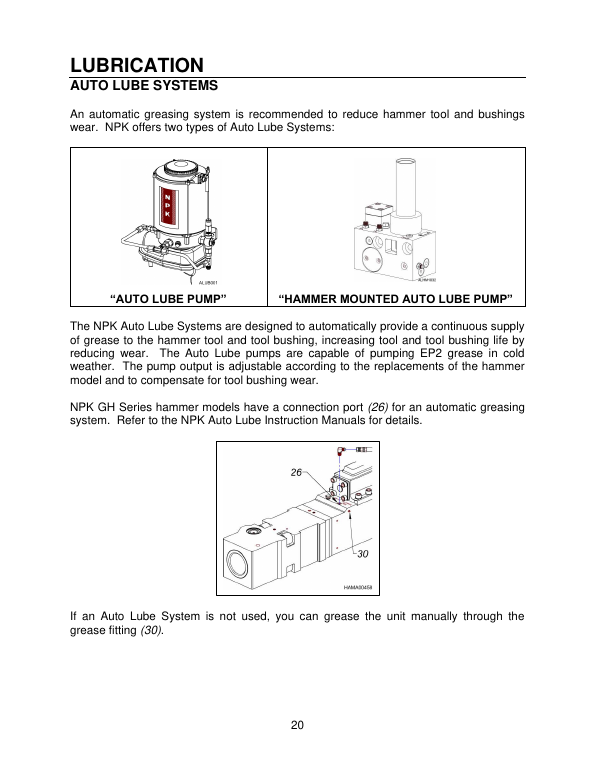

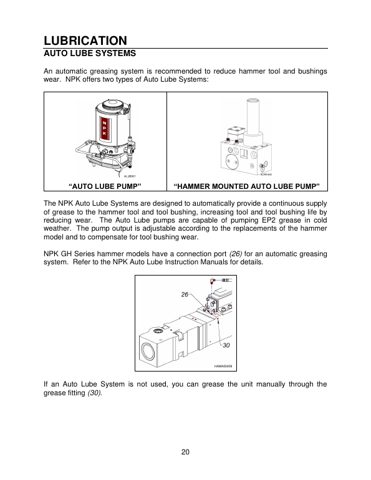

speccodexnpk GH7 – Page preview (e2b96507d747_S8-59 S. 14)
Page preview · e2b96507d747_S8-59 · S. 14
Source: speccodexnpk GH7 datasheet, p. 1
