Library› Deck› Deck Cranes› Offshore / Heavy Lift Crane› speccodexlinkbelt TCC-2500
speccodexlinkbelt

TCC-2500

Offshore / Heavy Lift Crane · Deck Cranes

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Offshore / Heavy Lift Crane — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Main transport load107,156 lbs (48,605 kg)
1st overflow44,160 lbs (20,031 kg)
2nd & 3rd overflow44,408 lbs (20,143 kg)
4th overflow21,779 lbs (9,879 kg)
5th & 6th overflow22,000 lbs (9,979 kg)
7th overflow30,770 lbs (13,957 kg)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Quick and easy mobilization • Transports complete in EIGHT LOADS • Complete self-assembly capabilities • ‘Hook and pin’ removable side frames with hydraulic pinning • Standard lower jacks with…”

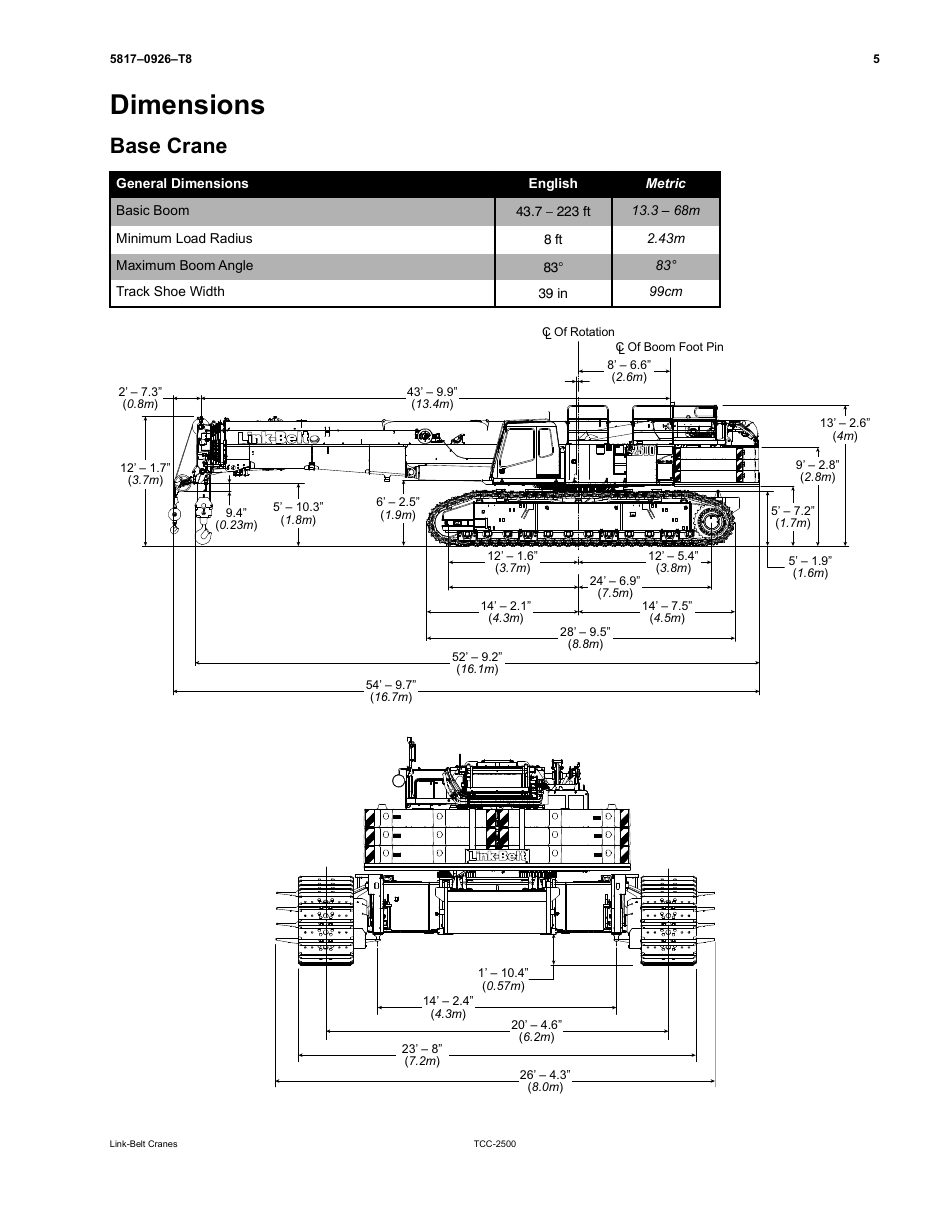

speccodexlinkbelt TCC-2500 – Drawing (de65f79ac5c3_S5-18 S. 5)
Drawing · de65f79ac5c3_S5-18 · S. 5

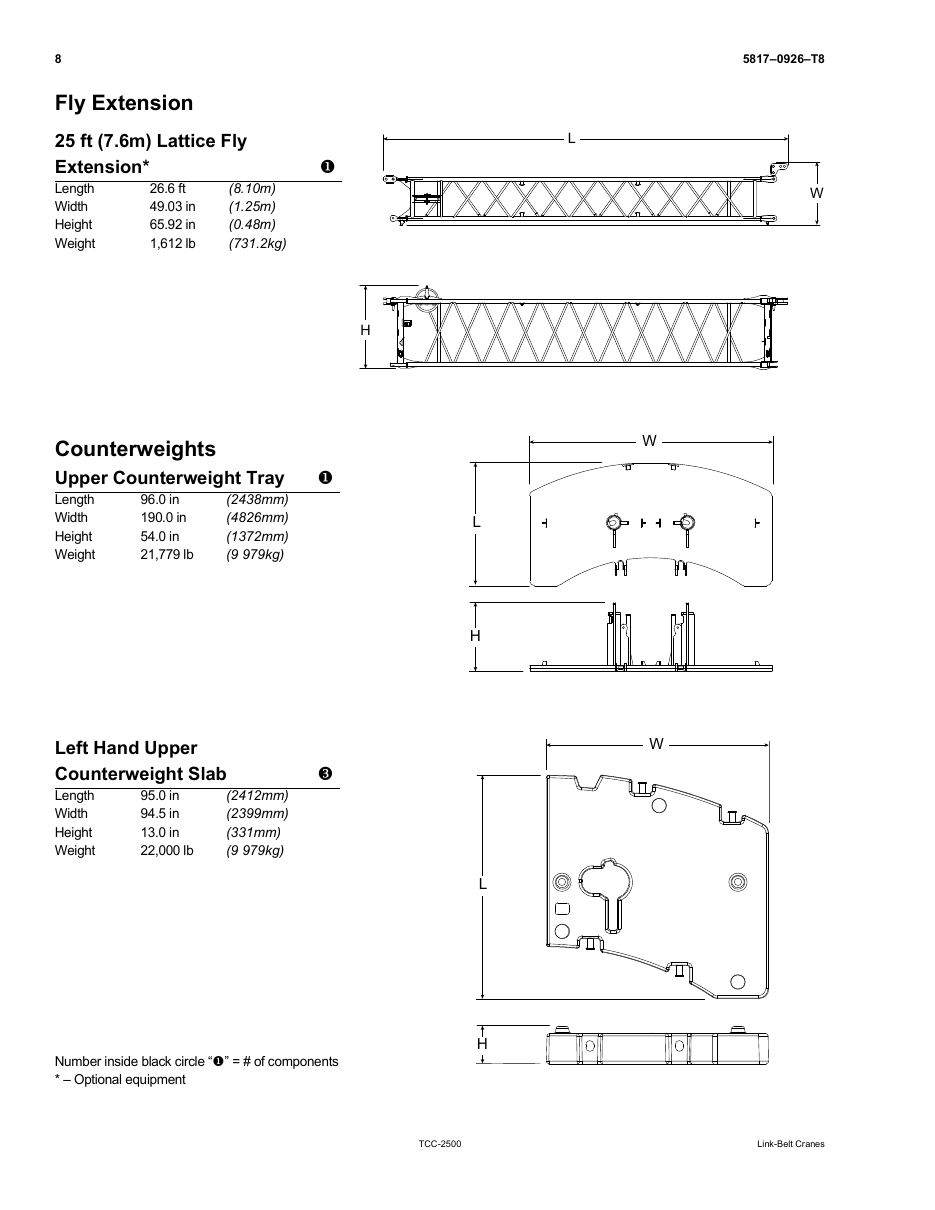

speccodexlinkbelt TCC-2500 – Drawing (de65f79ac5c3_S5-18 S. 8)
Drawing · de65f79ac5c3_S5-18 · S. 8
speccodexlinkbelt TCC-2500 – Drawing (de65f79ac5c3_S5-18 S. 9)
Drawing · de65f79ac5c3_S5-18 · S. 9
speccodexlinkbelt TCC-2500 – Page preview (de65f79ac5c3_S5-18 S. 6)
Page preview · de65f79ac5c3_S5-18 · S. 6
speccodexlinkbelt TCC-2500 – Page preview (de65f79ac5c3_S5-18 S. 7)
Page preview · de65f79ac5c3_S5-18 · S. 7

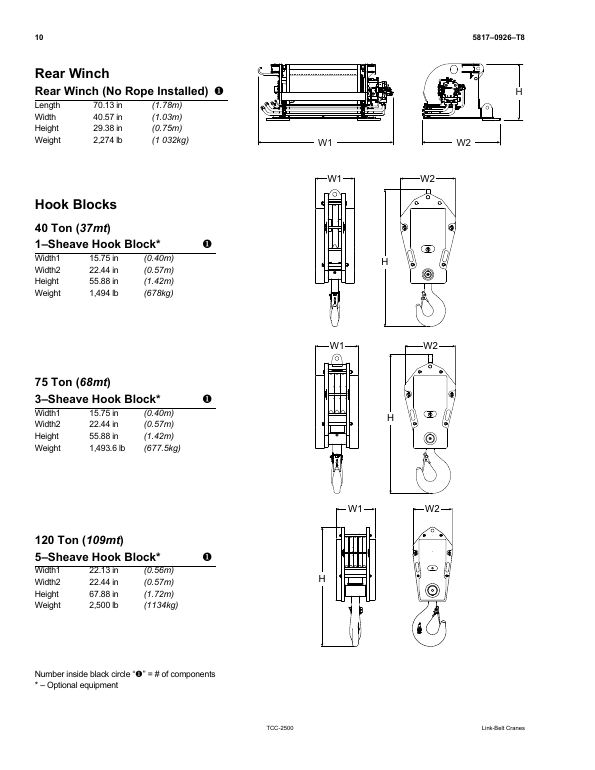

speccodexlinkbelt TCC-2500 – Page preview (de65f79ac5c3_S5-18 S. 10)
Page preview · de65f79ac5c3_S5-18 · S. 10

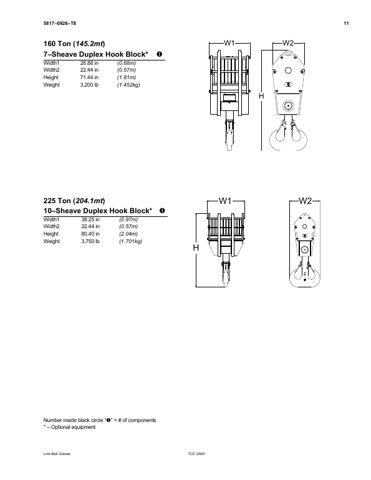

speccodexlinkbelt TCC-2500 – Page preview (de65f79ac5c3_S5-18 S. 11)
Page preview · de65f79ac5c3_S5-18 · S. 11
Source: speccodexlinkbelt TCC-2500 datasheet, p. 1
