Library› Deck› Deck Cranes› Offshore / Heavy Lift Crane› speccodexlinkbelt 5863-1225-U3
speccodexlinkbelt

5863-1225-U3

Offshore / Heavy Lift Crane · Deck Cranes

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Boom Length46.1–238.7 ft (14.1–72.6m)
Maximum Tip Height EM1245 ft (74.7m)
Maximum Tip Height EM2230 ft (70.2m)
Maximum Tip Height EM3197 ft (59.9m)
Maximum Tip Height EM4182 ft (55.3m)
Maximum Tip Height EM5150 ft (45.6m)
Maximum Tip Height EM6152 ft (46.4m)
Maximum Tip Height EM7120 ft (36.5m)
Maximum Tip Height EM8104 ft (31.8m)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Design – Seven section, formed construction of extra high tensile steel consisting of one base section and six telescoping sections. Two plate design of each section has multiple longitudinal bends…”

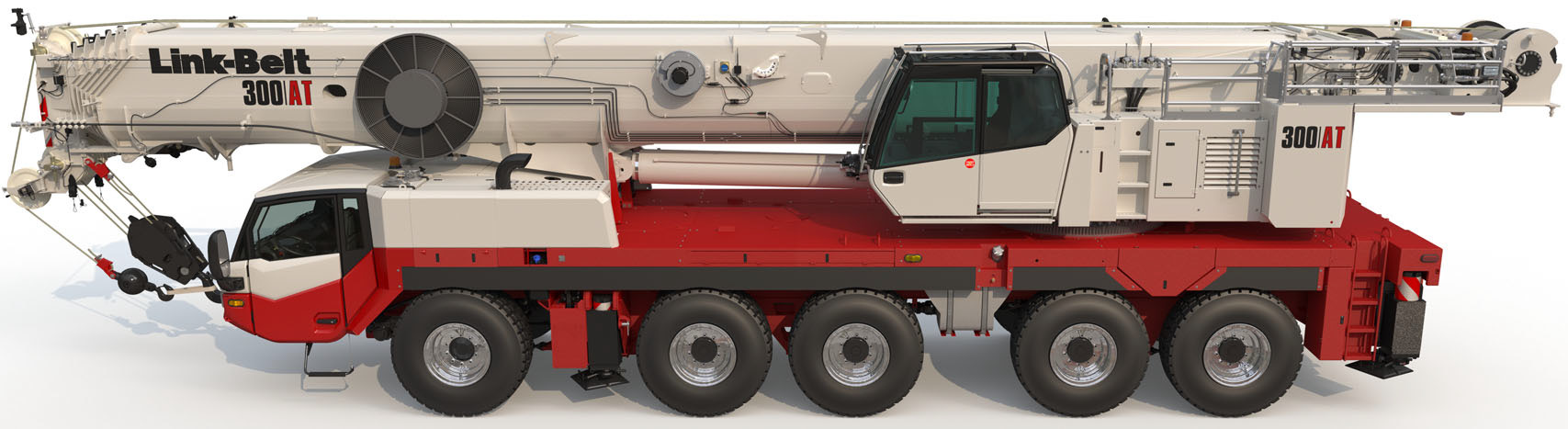

speccodexlinkbelt 5863-1225-U3 – Photo (eca0ddc196c8_S5-17 S. 12)
Photo · eca0ddc196c8_S5-17 · S. 12

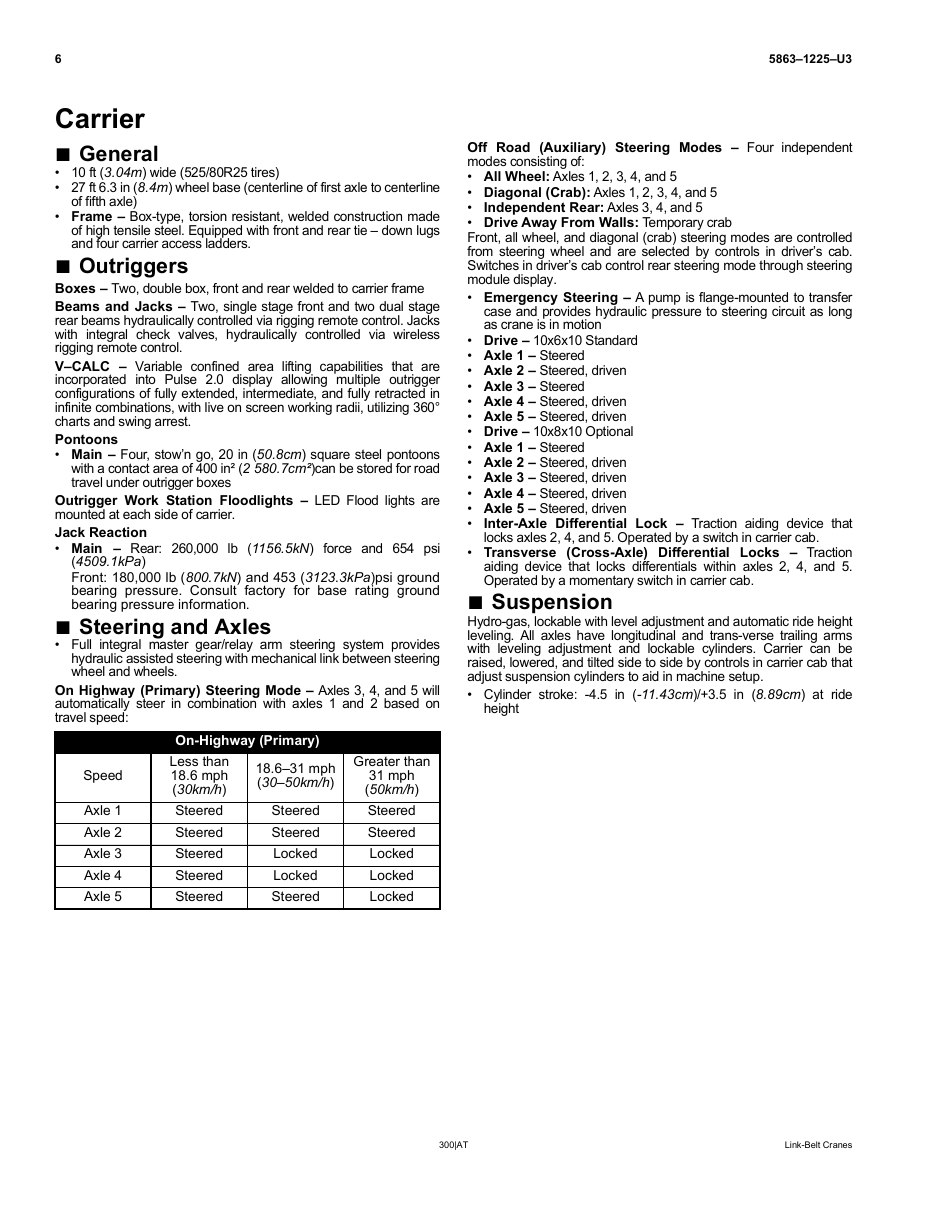

speccodexlinkbelt 5863-1225-U3 – Drawing (eca0ddc196c8_S5-17 S. 6)
Drawing · eca0ddc196c8_S5-17 · S. 6

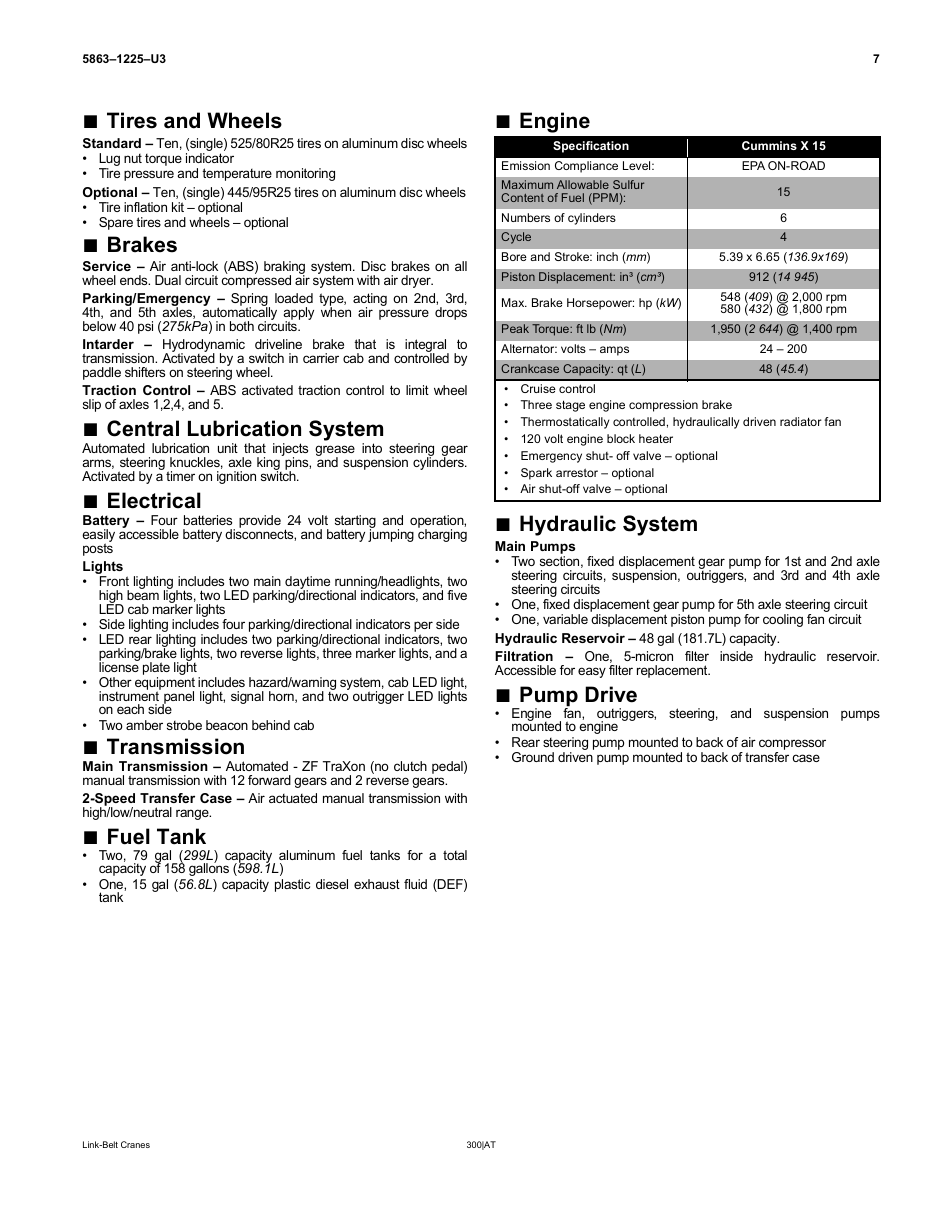

speccodexlinkbelt 5863-1225-U3 – Drawing (eca0ddc196c8_S5-17 S. 7)
Drawing · eca0ddc196c8_S5-17 · S. 7

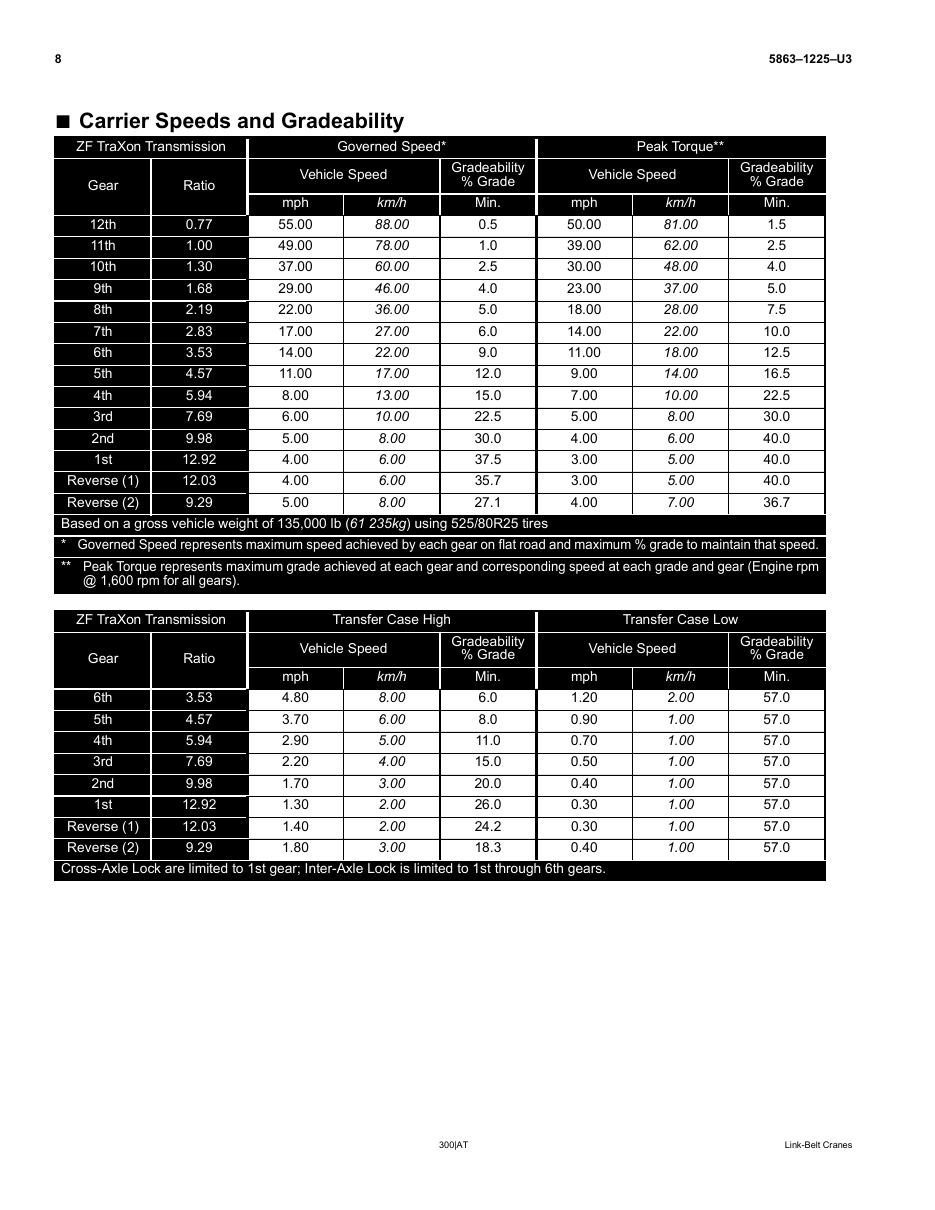

speccodexlinkbelt 5863-1225-U3 – Drawing (eca0ddc196c8_S5-17 S. 8)
Drawing · eca0ddc196c8_S5-17 · S. 8

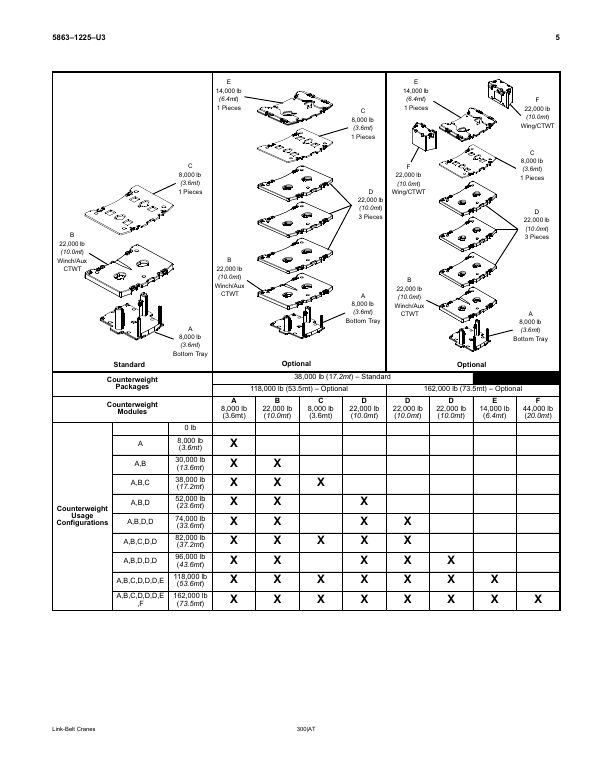

speccodexlinkbelt 5863-1225-U3 – Page preview (eca0ddc196c8_S5-17 S. 5)
Page preview · eca0ddc196c8_S5-17 · S. 5

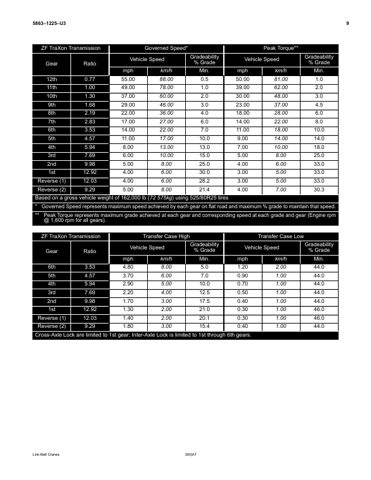

speccodexlinkbelt 5863-1225-U3 – Page preview (eca0ddc196c8_S5-17 S. 9)
Page preview · eca0ddc196c8_S5-17 · S. 9

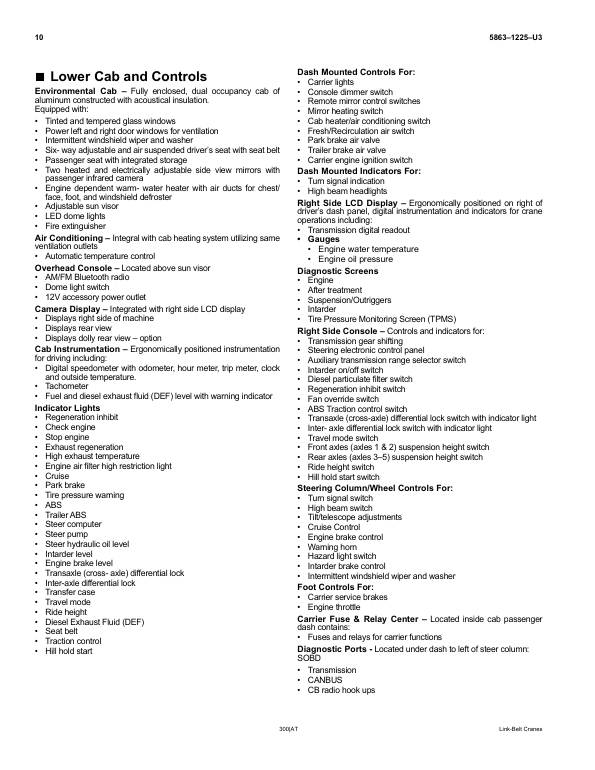

speccodexlinkbelt 5863-1225-U3 – Page preview (eca0ddc196c8_S5-17 S. 10)
Page preview · eca0ddc196c8_S5-17 · S. 10

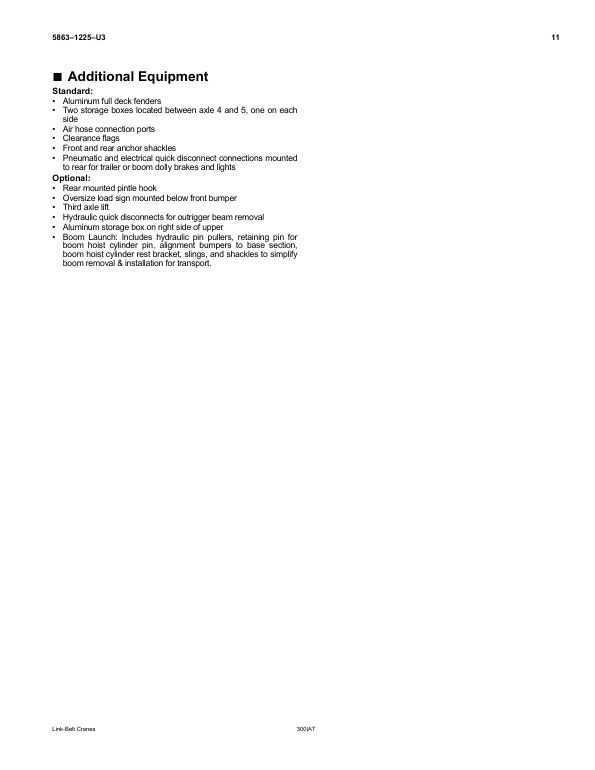

speccodexlinkbelt 5863-1225-U3 – Page preview (eca0ddc196c8_S5-17 S. 11)
Page preview · eca0ddc196c8_S5-17 · S. 11
Source: speccodexlinkbelt 5863-1225-U3 datasheet, p. 1
