Library› Engine Room› Pumps› Pump› Grundfos 15959-2P-30HP LCSE
Grundfos

15959-2P-30HP LCSE

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Grundfos in the SpecCodex register — view brand page →
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Flow, rated279.2 USgpm
Differential head / pressure, rated (requested)264.6 ft
Differential head / pressure, rated (actual)264.6 ft
Suction pressure, rated / max0.00 / 0.00 psi.g
Frequency60 Hz
Speed, rated3550 rpm
Speed, maximum3550 rpm
Speed, minimum900 rpm
Impeller diameter, rated8.25 in
Efficiency73.45 %
NPSH required / margin required27.26 / 0.00 ft
Mcsf103.0 USgpm
Head maximum, rated speed302.4 ft
Head rise to shutoff10.44 %
Flow, best eff. point279.2 USgpm
Flow ratio, rated / BEP100.00 %
Speed ratio (rated / max)100.00 %
Maximum working pressure130.9 psi.g
Maximum allowable working pressure175.0 psi.g
Maximum allowable suction pressure175.0 psi.g
Hydrostatic test pressure263.0 psi.g
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Operating Conditions Flow, rated : 279.2 USgpm Differential head / pressure, rated (requested) : 264.6 ft Differential head / pressure, rated (actual) : 264.6 ft Suction pressure, rated / max : 0.00…”

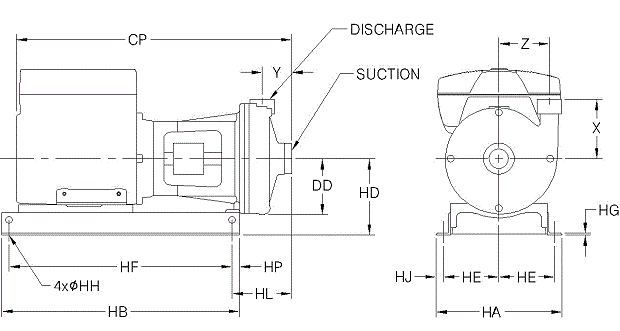

Grundfos 15959-2P-30HP LCSE – Photo (0353413901d8_S1-9 S. 3)
Photo · 0353413901d8_S1-9 · S. 3

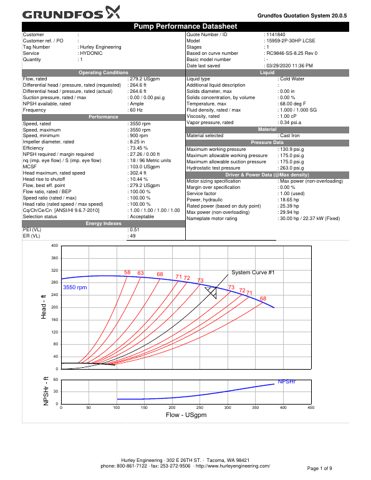

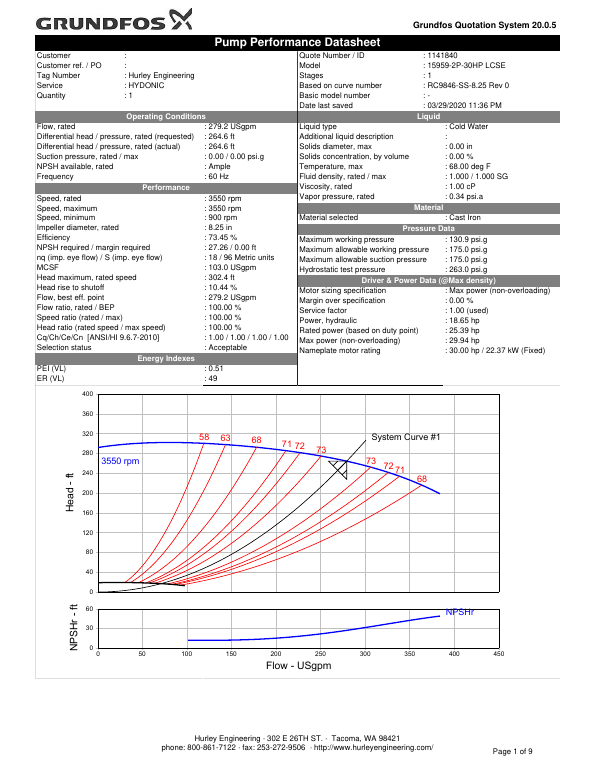

Grundfos 15959-2P-30HP LCSE – Page preview (0353413901d8_S1-9 S. 1)
Page preview · 0353413901d8_S1-9 · S. 1

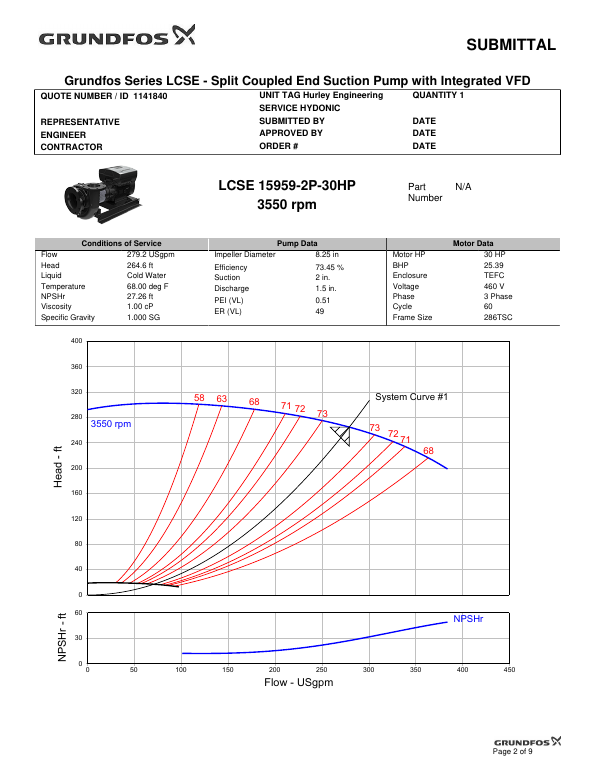

Grundfos 15959-2P-30HP LCSE – Page preview (0353413901d8_S1-9 S. 2)
Page preview · 0353413901d8_S1-9 · S. 2

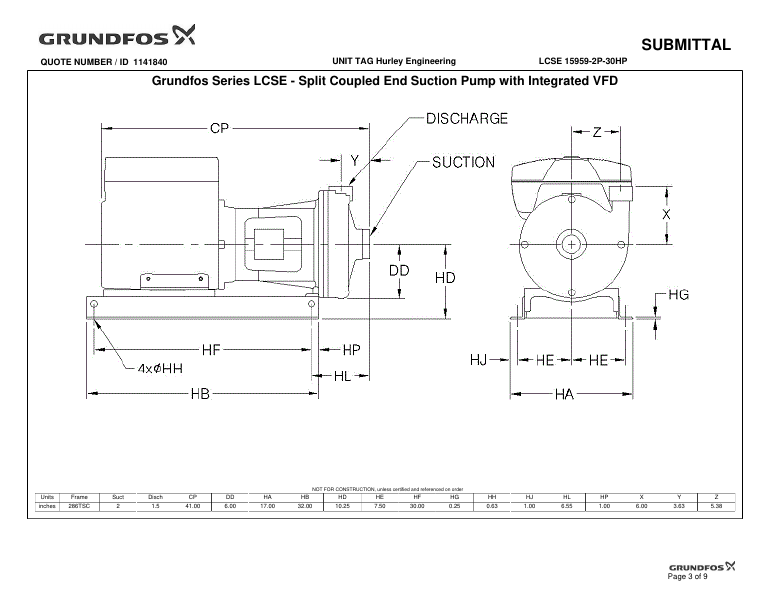

Grundfos 15959-2P-30HP LCSE – Page preview (0353413901d8_S1-9 S. 3)
Page preview · 0353413901d8_S1-9 · S. 3

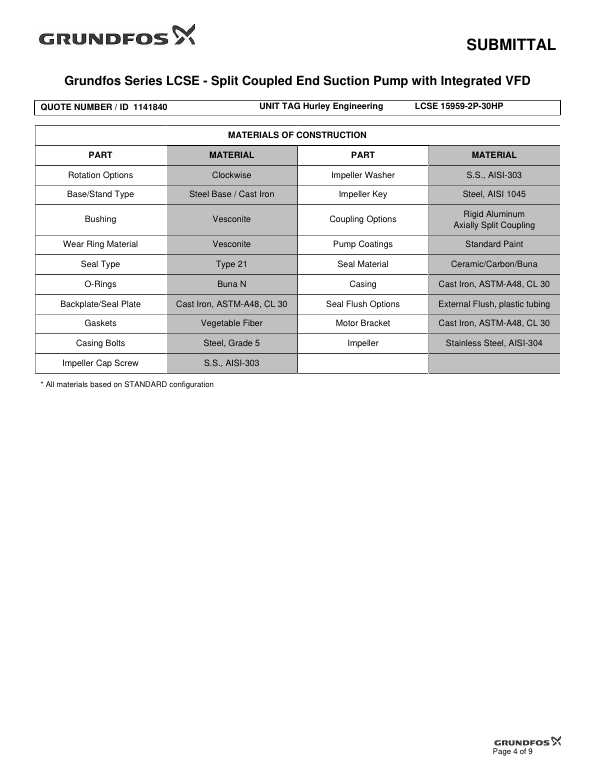

Grundfos 15959-2P-30HP LCSE – Page preview (0353413901d8_S1-9 S. 4)
Page preview · 0353413901d8_S1-9 · S. 4
Source: Grundfos 15959-2P-30HP LCSE datasheet, p. 1
